Paper Setting

bizhub PRO 920 15-9

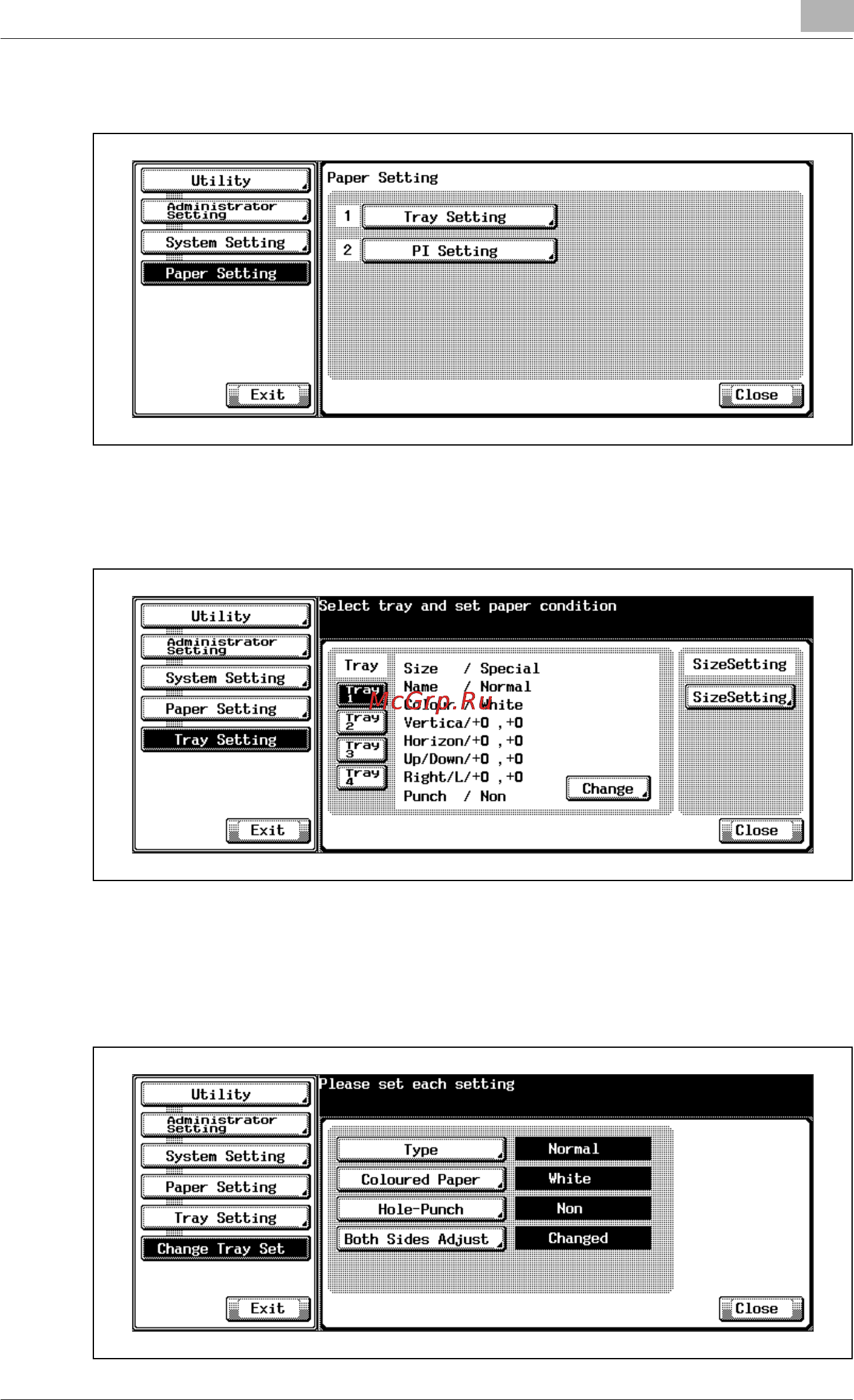

6 Touch [1 Tray Setting].

The Tray Setting Screen will be displayed.

7 Touch a desired tray key to highlight it.

8 Touch [Change] to change a tray setting.

The Tray Setting Menu Screen will be displayed.

9 Touch Type.
