Paper Setting

15-10 bizhub PRO 920

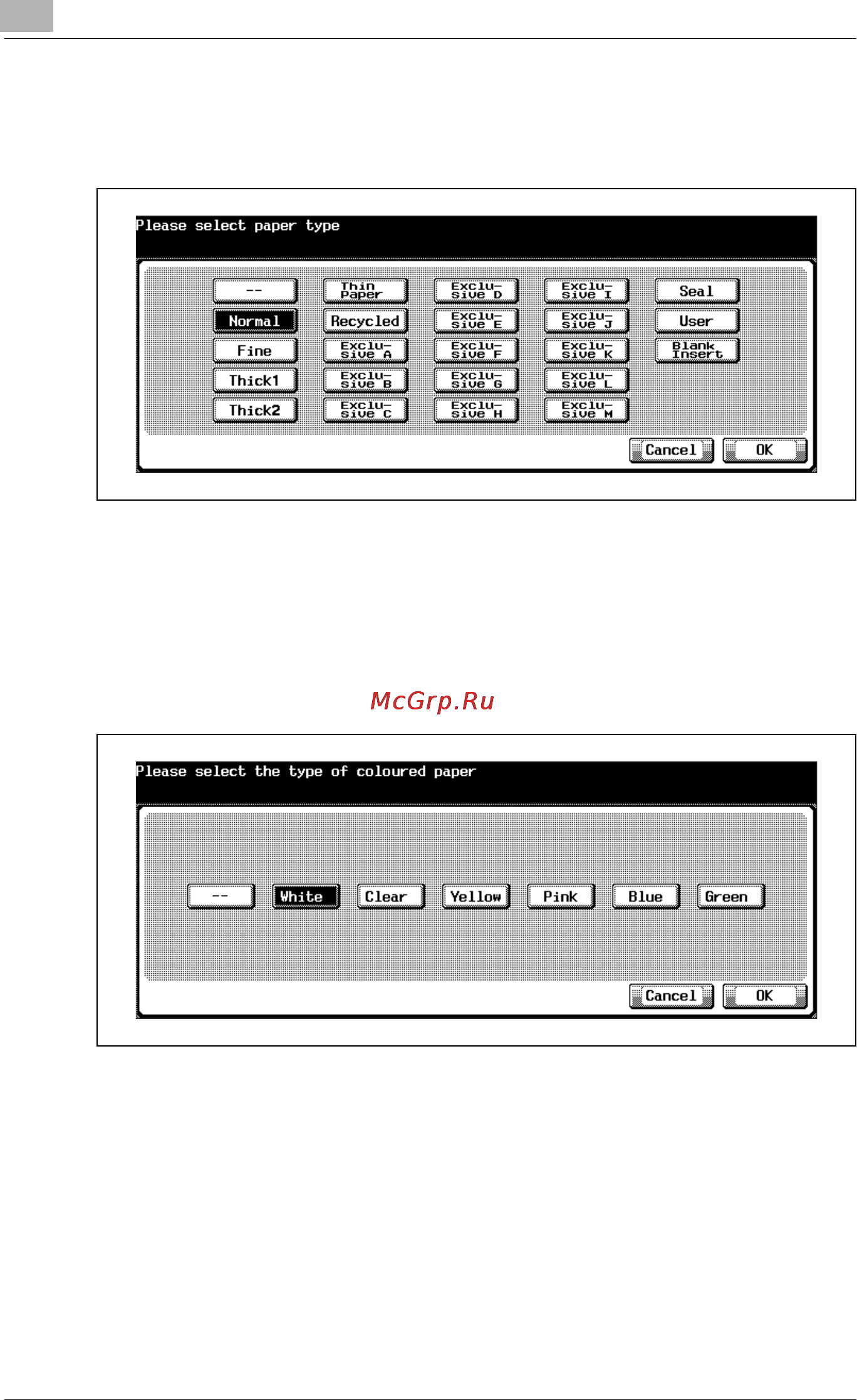

The Change Paper Type Screen will be displayed.

10 Select a desired paper type.

Touch [OK] to complete the setting and return to the Tray Setting Menu

Screen.

11 Touch [Coloured Paper].

The Coloured Paper Setting Screen will be displayed.

12 Select a desired paper colour.

Touch [OK] to complete the setting and return to the Tray Setting Menu

screen.

13 Touch [Hole-Punch].

The Hole-Punch Setting Screen will be displayed.
