Utility <Administrator Setting>

18-36 bizhub PRO 920

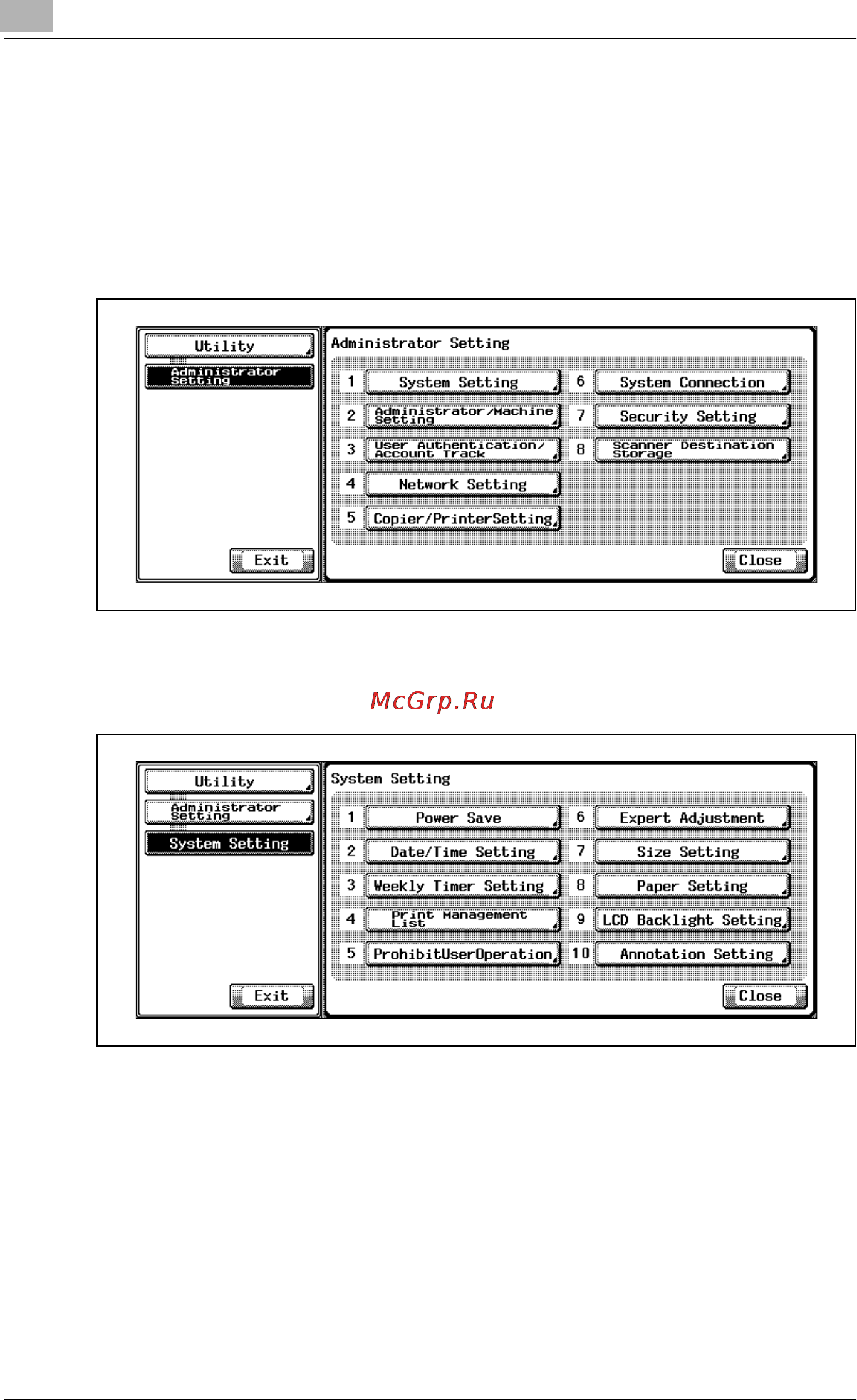

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [6 Administrator Setting], enter the administrator password, and

then touch [OK].

The Administrator Setting Screen will be displayed.

3 Touch [1 System Setting].

The System Setting Screen will be displayed.

4 Touch [4 Print Management List].

The Print Management List Screen will be displayed.

5 Touch any key to print the list.
