Utility <Administrator Setting>

bizhub PRO 920 18-37

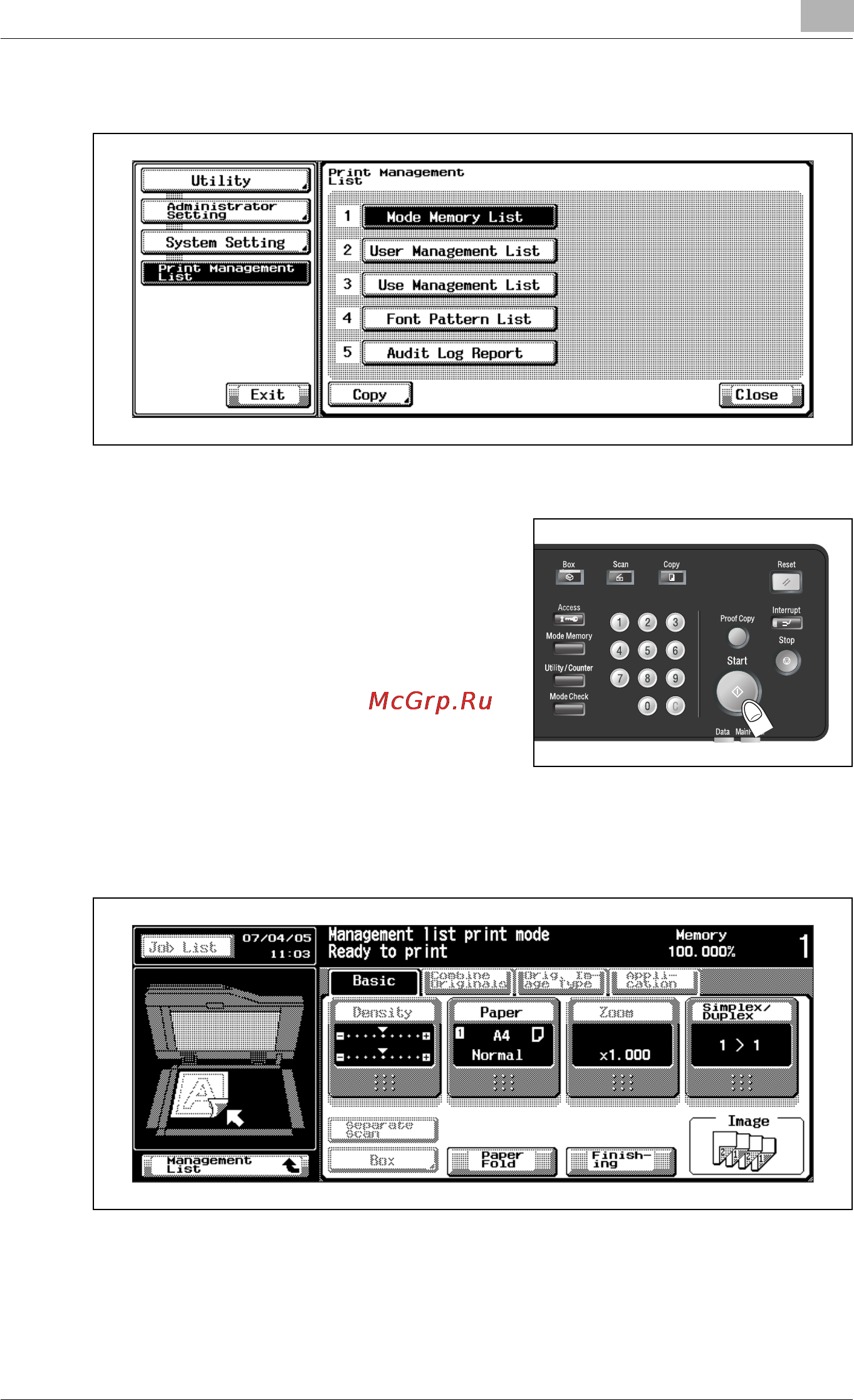

6 Press [Copy].

The Copy Screen is displayed.

7 Press [Start] on the control panel to

start printing the selected list.

Press [Stop] on the control panel to

suspend printing.

8 Touch [Management List] to return to the Print Management List

Screen.

9 Touch [OK] to return to the System Setting Screen.

10 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
