Utility <Administrator Setting>

18-52 bizhub PRO 920

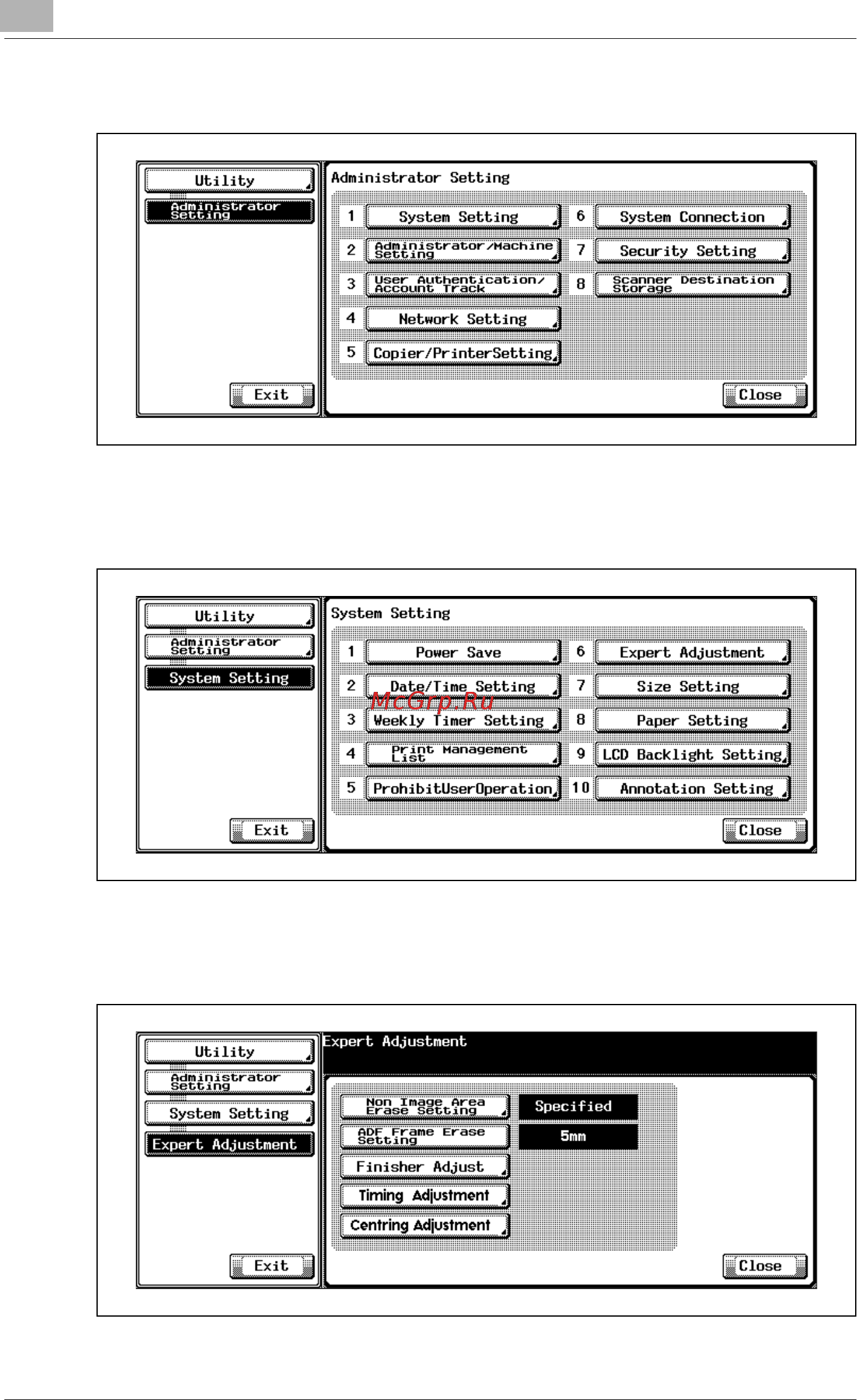

3 Touch [1 System Setting].

The System Setting Screen will be displayed.

4 Touch [6 Expert Adjustment].

The Expert Adjustment Screen will be displayed.

5 Touch [Timing Adjustment].

The Timing Adjustment Screen is displayed.
