Utility <Administrator Setting>

bizhub PRO 920 18-53

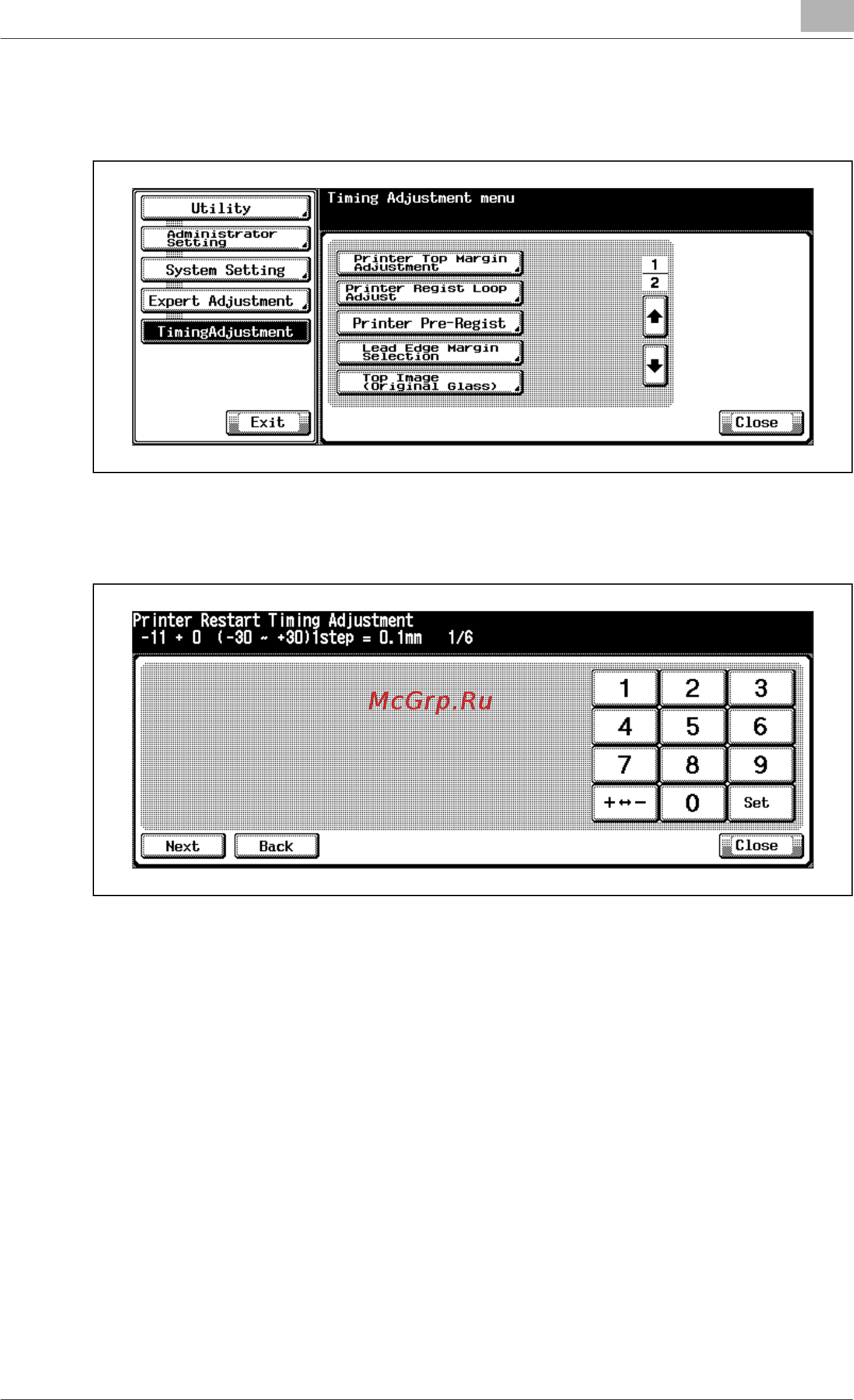

6 Touch any desired key of adjustment items. The adjustment screen is

displayed.

7 Touch [Next] or [Back] to select a desired paper feed tray and an output

order (face up or face down).

8 Select + and – by touching the [+--] key on the touch screen keypad,

and touch [Set].

9 Touch [Close] to return to the Timing Adjust Screen.

10 Touch [Close] to return to the Expert Adjustment Screen.

11 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
