Utility <Administrator Setting>

bizhub PRO 920 18-55

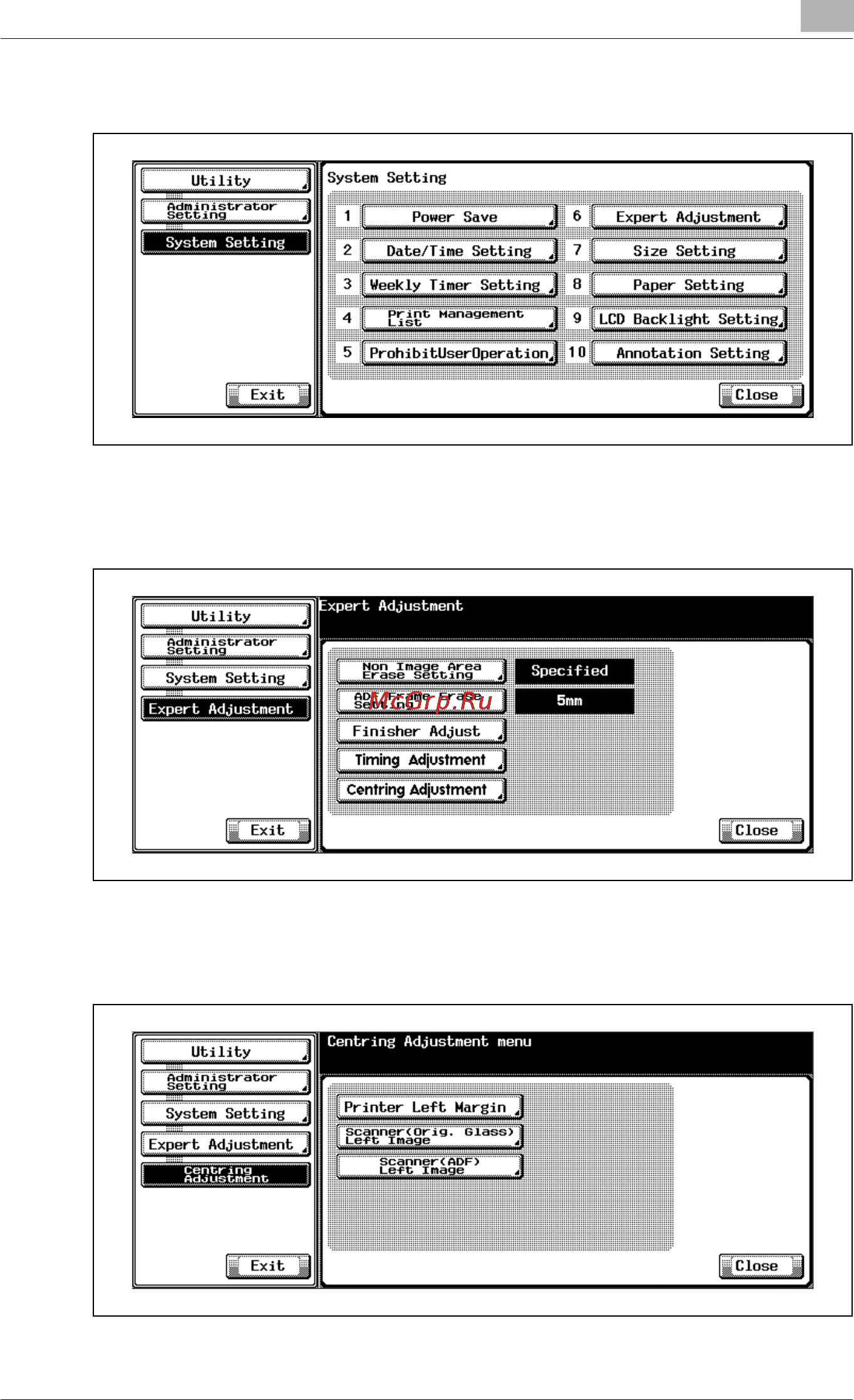

4 Touch [6 Expert Adjustment].

The Expert Adjustment Screen will be displayed.

5 Touch [Centring Adjustment].

The Centring Adjustment Screen is displayed.

6 Touch any desired key of adjustment items.

The adjustment screen is displayed.
