Utility <Administrator Setting>

18-56 bizhub PRO 920

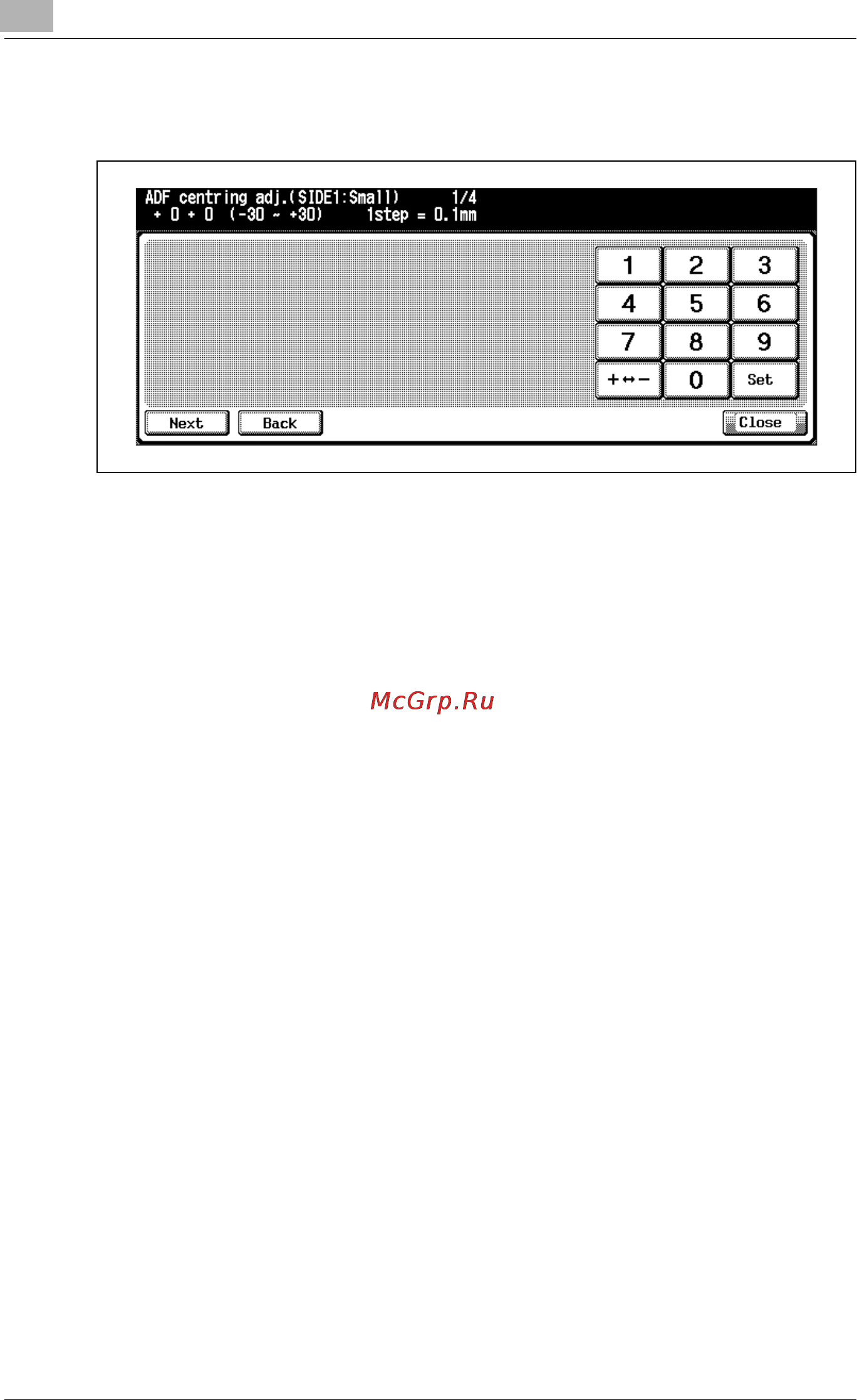

7 If [Next] and [Back] is displayed, Touch them to select a desired output

order (face up or face down).

8 Select + and – by touching the [+--] key on the touch screen keypad,

and touch [Set].

9 Touch [Close] to return to the Centring Adjustment Screen.

10 Touch [Close] to return to the Expert Adjustment Screen.

11 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
