Utility <Administrator Setting>

18-148 bizhub PRO 920

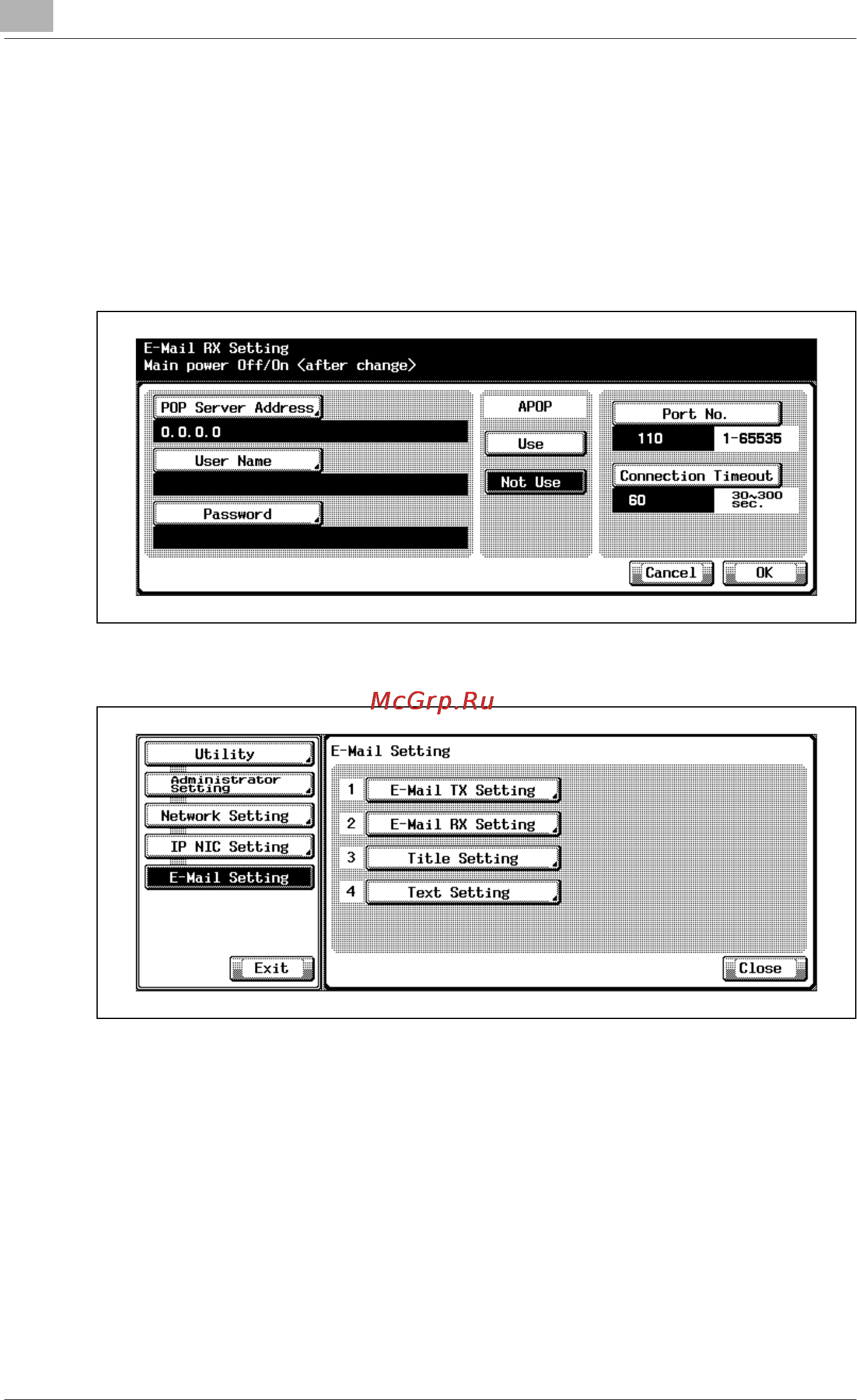

Specify the following items. Touch [OK] to complete the settings and

return to the E-Mail Setting Screen.

– POP Server Address

– User Name

– Password

– APOP

– Port Number

– Connection Timeout

8 Touch [3 Title Setting].

The E-Mail Title Setting Screen will be displayed.

Save an e-mail title.

– Select an appropriate Default Select number.

– Touch [Input] to display an input screen and enter a title.

– After entering the title, touch [OK].
