Utility <Administrator Setting>

bizhub PRO 920 18-149

– Touch [OK] to complete the settings and return to the E-Mail

Setting Screen.

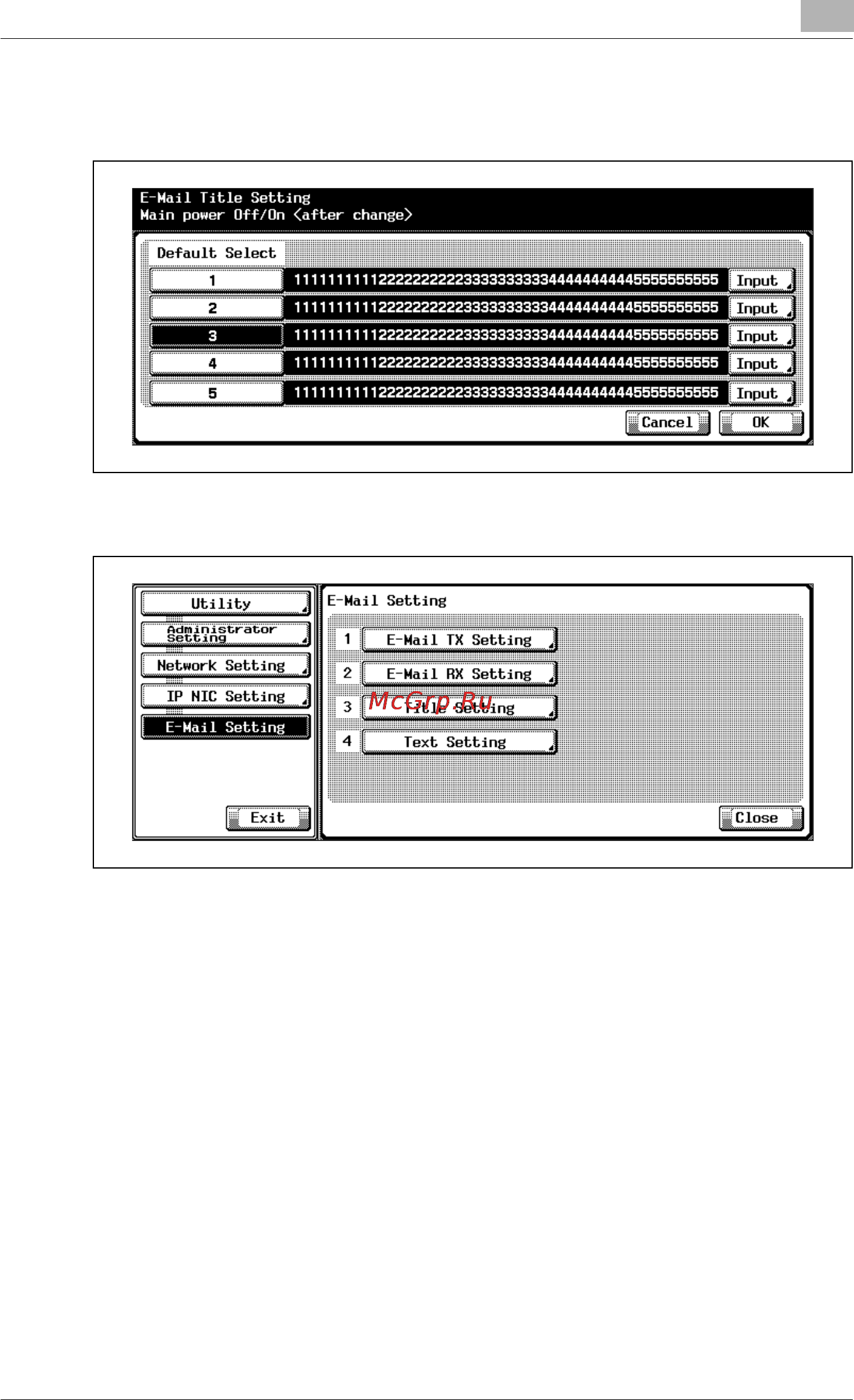

9 Touch [4 Text Setting].

The E-Mail Text Setting Screen will be displayed.

Save an e-mail body.

– Select an appropriate Default Select number.

– Touch [Input] to display an input screen and enter a body.

– After entering the body, touch [OK].
