Utility <Administrator Setting>

18-150 bizhub PRO 920

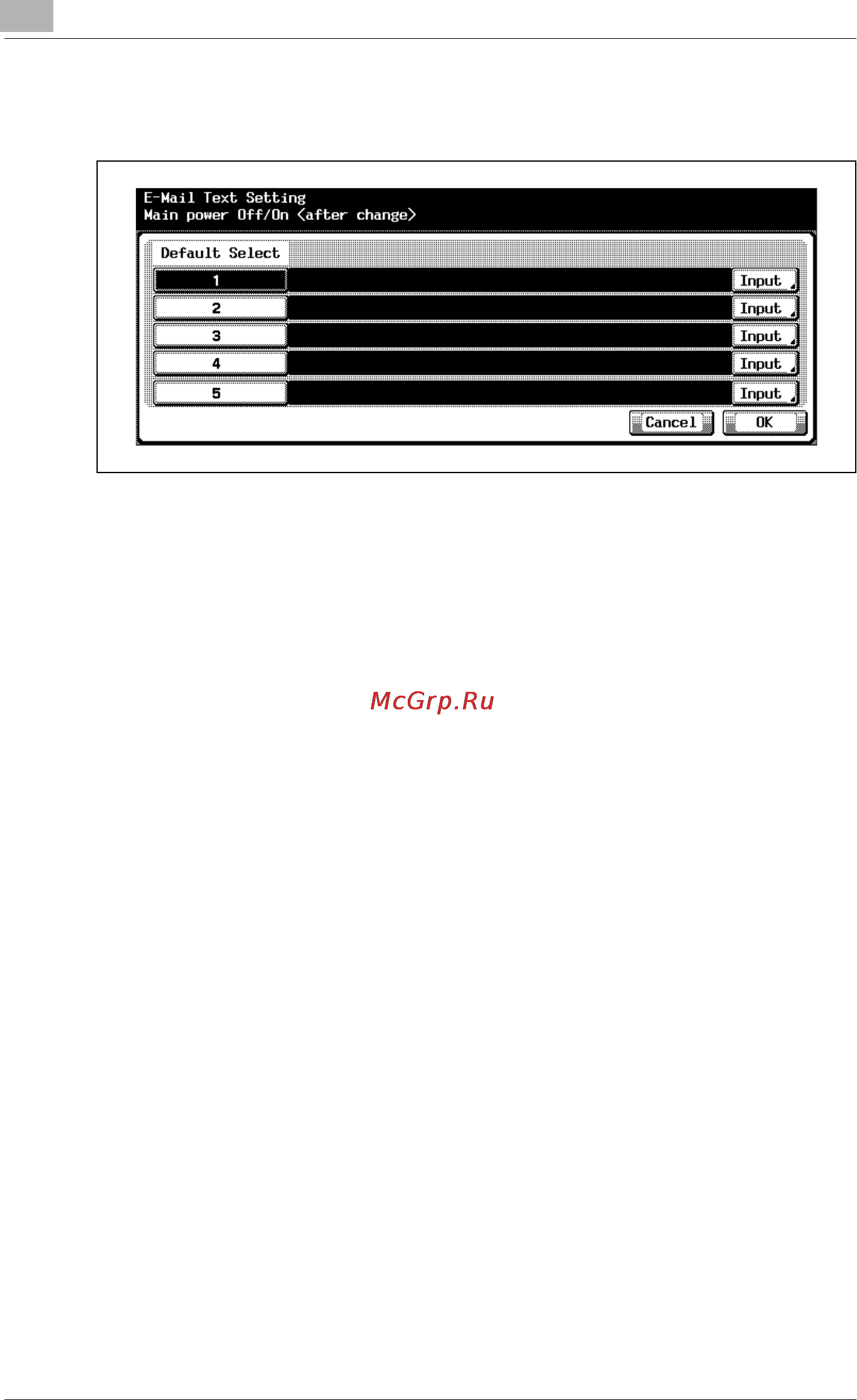

– Touch [OK] to complete the settings and return to the E-Mail

Setting Screen.

10 Touch [OK] to return to the IP NIC Setting Screen.

If further changes are required, touch the desired key.

11 After you have changed the settings, turn off the sub power, then turn

off and on the main power.

Detail

When you turn off and on the main power, you need to wait at least 10

seconds to turn on after turning off. If you do not allow a sufficient interval

in between, the machine may not run correctly.
