HDD Store Function in Enhanced Security Mode

25-6 bizhub PRO 920

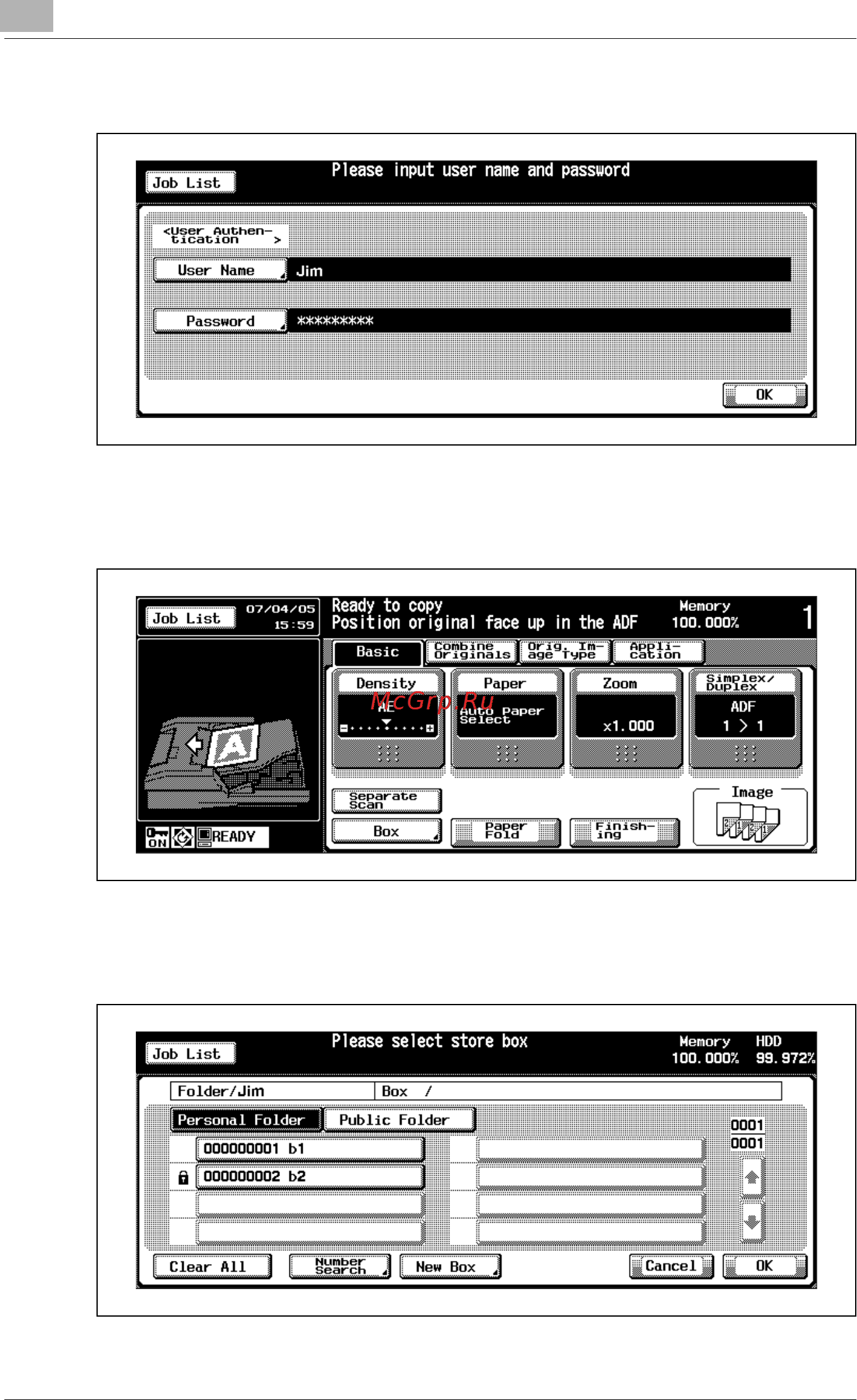

2 Touch [OK] on the User Authentication Screen.

The Copy Basic Screen will be displayed.

3 Touch [Box] on the Copy Basic Screen.

The Store Personal Box Screen will be displayed.

4 Select the desired personal Box, then touch [OK].

– Enter the password if selected Box requires one.
