HDD Store Function in Enhanced Security Mode

bizhub PRO 920 25-7

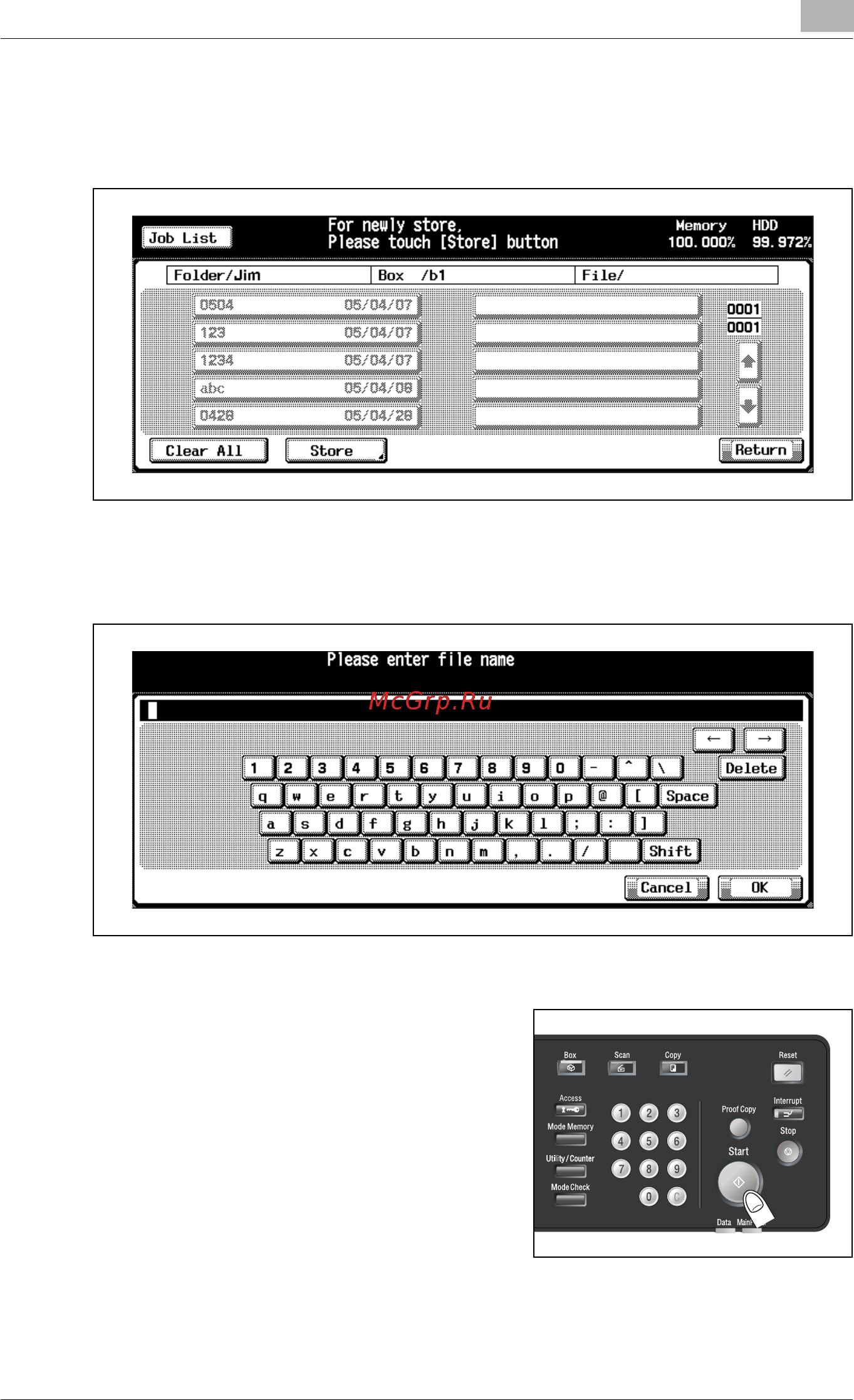

The Personal File Screen will be displayed.

5 Touch [Store].

The Input File Name Screen will be displayed.

6 Enter the file name, then touch [OK].

The Copy Basic Screen will be restored.

7 Press [Start] on the control panel to

scan.

After scanning all the originals, the

machine automatically starts to print

and store the data in a Box.
