Grundfos MAGNA3 D 32-80 180 97924451 [10/1656] Changing the control box position

English (GB)

3.7 Changing the control box position

The warning symbol on the clamp holding the pump

head and pump housing together indicates that there

is a risk of personal injury. See specific warnings

below.

CAUTION

Crushing of feet

Minor or moderate personal injury

- Do not drop the pump head when loosening the

clamp.

CAUTION

Pressurised system

Minor or moderate personal injury

- Pay special attention to any escaping vapour

when loosening the clamp.

Fit and tighten the screw that holds the clamp to 8

Nm ± 1 Nm. Do not apply more torque than specified

even though water is dripping from the clamp. The

condensed water is most likely coming from the drain

hole under the clamp.

Check the position of the clamp before you tighten

the clamp. Incorrect position of the clamp will cause

leakage from the pump and damage the hydraulic

parts in the pump head.

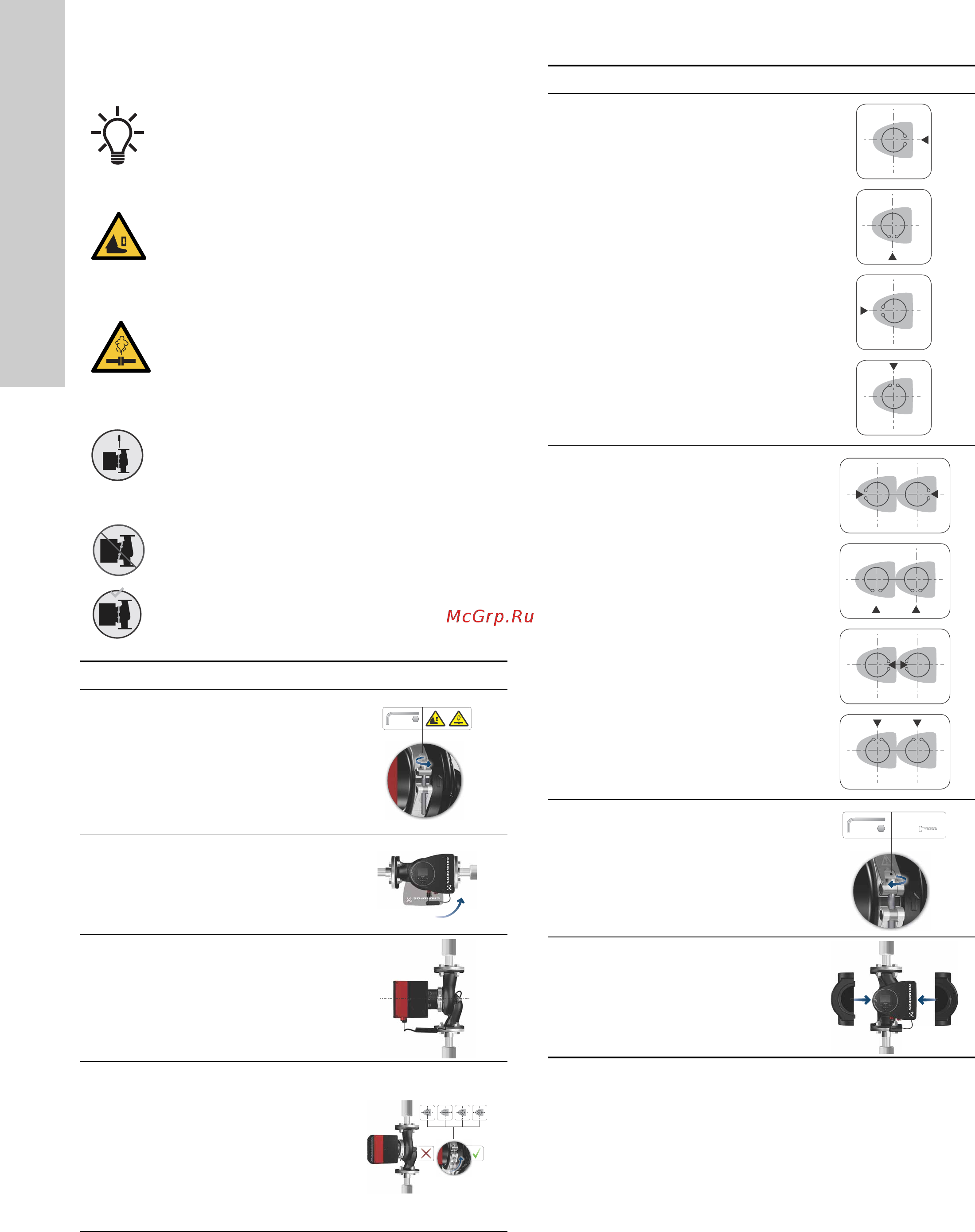

Step Action Illustration

Loosen the screw in the

clamp that holds the pump

head and pump housing

together.

If you loosen the screw too

much, the pump head will be

completely disconnected

from the pump housing.

TM05 2867 3216

Carefully turn the pump head

to the desired position.

If the pump head is stuck,

loosen it with a light blow of a

rubber mallet.

TM05 2868 3216

Place the control box in

horizontal position so that the

Grundfos logo is in vertical

position. The motor shaft

must be in horizontal

position.

TM05 2869 3216

Due to the drain hole in the

stator housing, position the

gap of the clamp as shown in

step 4a or 4b.

TM05 2870 0612

8Nm!

5.0

Single-head pump.

Position the clamp so that the

gap points towards the arrow.

It can be in position 3, 6, 9 or

12 o'clock.

TM05 2918 3216

Twin-head pump.

Position the clamps so that

the gaps point towards the

arrows.

They can be in position 3, 6,

9 or 12 o'clock.

TM05 2917 3216

Fit and tighten the screw that

holds the clamp to 8 Nm ± 1

Nm.

Do not retighten the screw if

condensed water is dripping

from the clamp.

TM05 2872 0612

Fit the insulating shells.

The insulating shells for

pumps in air-conditioning and

cooling systems must be

ordered separately.

TM05 2874 3216

Step Action Illustration

8 Nm5.0

Grundfos MAGNA3 D 32-80 180 97924451 [10/1656] Changing the control box position
