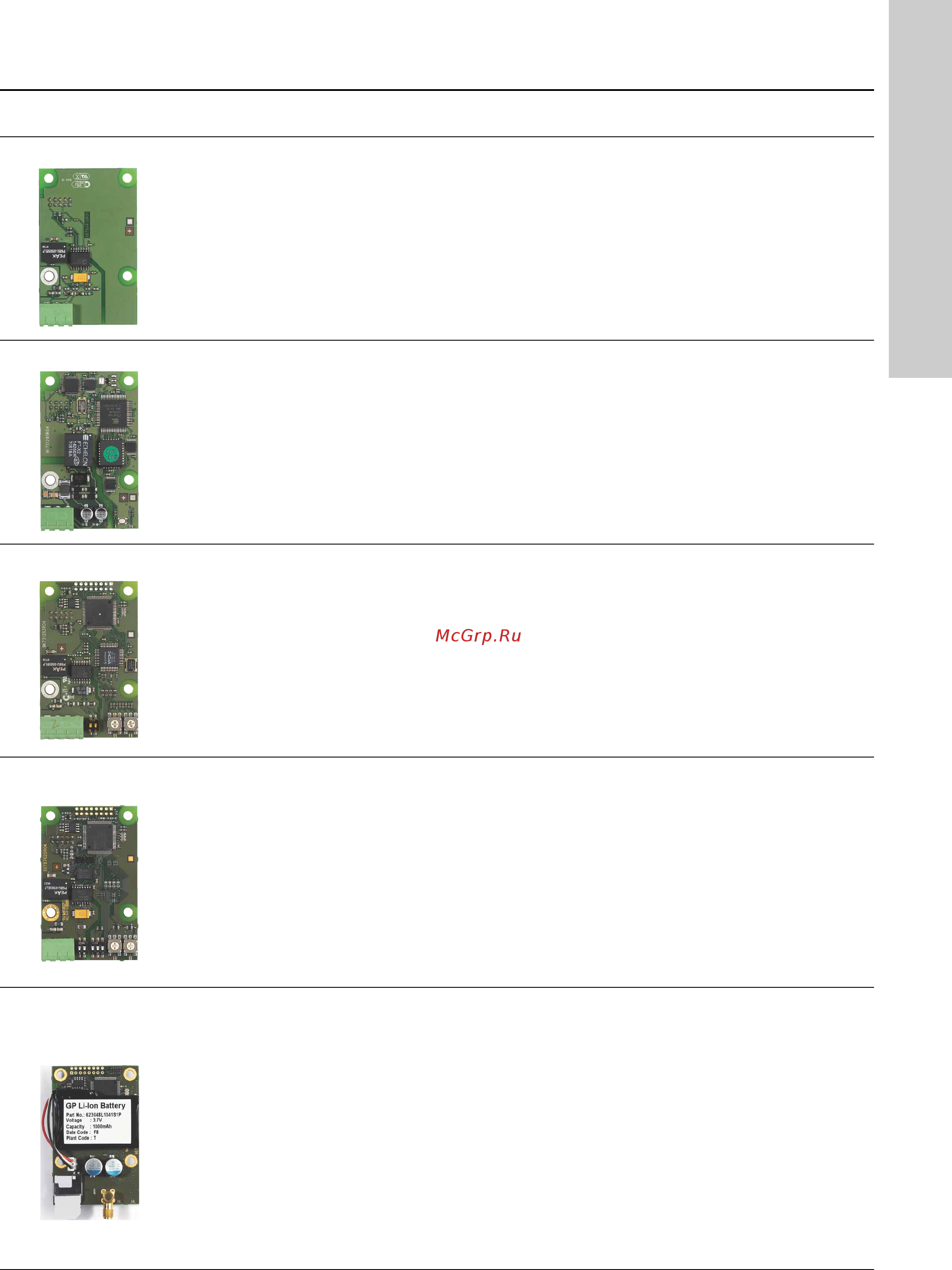

11.2.1 Description of communication interface modules
Module
Fieldbus
protocol
Description Functions
CIM 050
TM06 7238 3416
GENIbus
CIM 050 is a Grundfos communication
interface module used for
communication with a GENIbus
network.
CIM 050 has terminals for the GENIbus
connection.
CIM 100
TM06 7279 3416
LonWorks
CIM 100 is a Grundfos communication
interface module used for
communication with a LonWorks
network.
CIM 100 has terminals for the LonWorks
connection.
Two LEDs are used to indicate the actual
status of the CIM 100 communication.
One LED is used for indication of correct
connection to the pump, and the other is
used to indicate LonWorks communication
status.
CIM 150
TM06 7280 3416
PROFIBUS DP
CIM 150 is a Grundfos communication
interface module used for
communication with a PROFIBUS
network.
CIM 150 has terminals for the PROFIBUS
DP connection.
DIP switches are used to set line
termination.
Two hexadecimal rotary switches are used
to set the PROFIBUS DP address.
Two LEDs are used to indicate the actual
status of the CIM 150 communication.
One LED is used for indication of correct
connection to the pump, and the other is
used to indicate PROFIBUS communication
status.
CIM 200
TM06 7281 3416
Modbus RTU
CIM 200 is a Grundfos communication
interface module used for
communication with a Modbus RTU
network.
CIM 200 has terminals for the Modbus
connection.
DIP switches are used to select parity and
stop bits, to select transmission speed and
to set line termination.
Two hexadecimal rotary switches are used
to set the Modbus address.
Two LEDs are used to indicate the actual
status of the CIM 200 communication.
One LED is used for indication of correct
connection to the pump, and the other is
used to indicate Modbus communication
status.
CIM 250
TM06 7282 3416
GSM/GPRS
CIM 250 is a Grundfos communication
interface module used for GSM or
GPRS communication.
CIM 250 is used to communicate via a
GSM network.
CIM 250 has a SIM-card slot and an SMA
connection to the GSM antenna.
The CIM 250 also has an internal backup
battery. Two LEDs are used to indicate the
actual status of the CIM 250
communication. One LED is used for
indication of correct connection to the pump,
and the other is used to indicate
GSM/GPRS communication status.
Note: The SIM card is not supplied with the
CIM 250. The SIM card from the service
provider must support data/fax service to
use call service from PC Tool or SCADA.
The SIM card from the service provider
must support GPRS service to use ethernet
service from PC Tool or SCADA.
