Grundfos MAGNA3 D 32-80 180 97924451 [7/1656] English gb

English (GB)

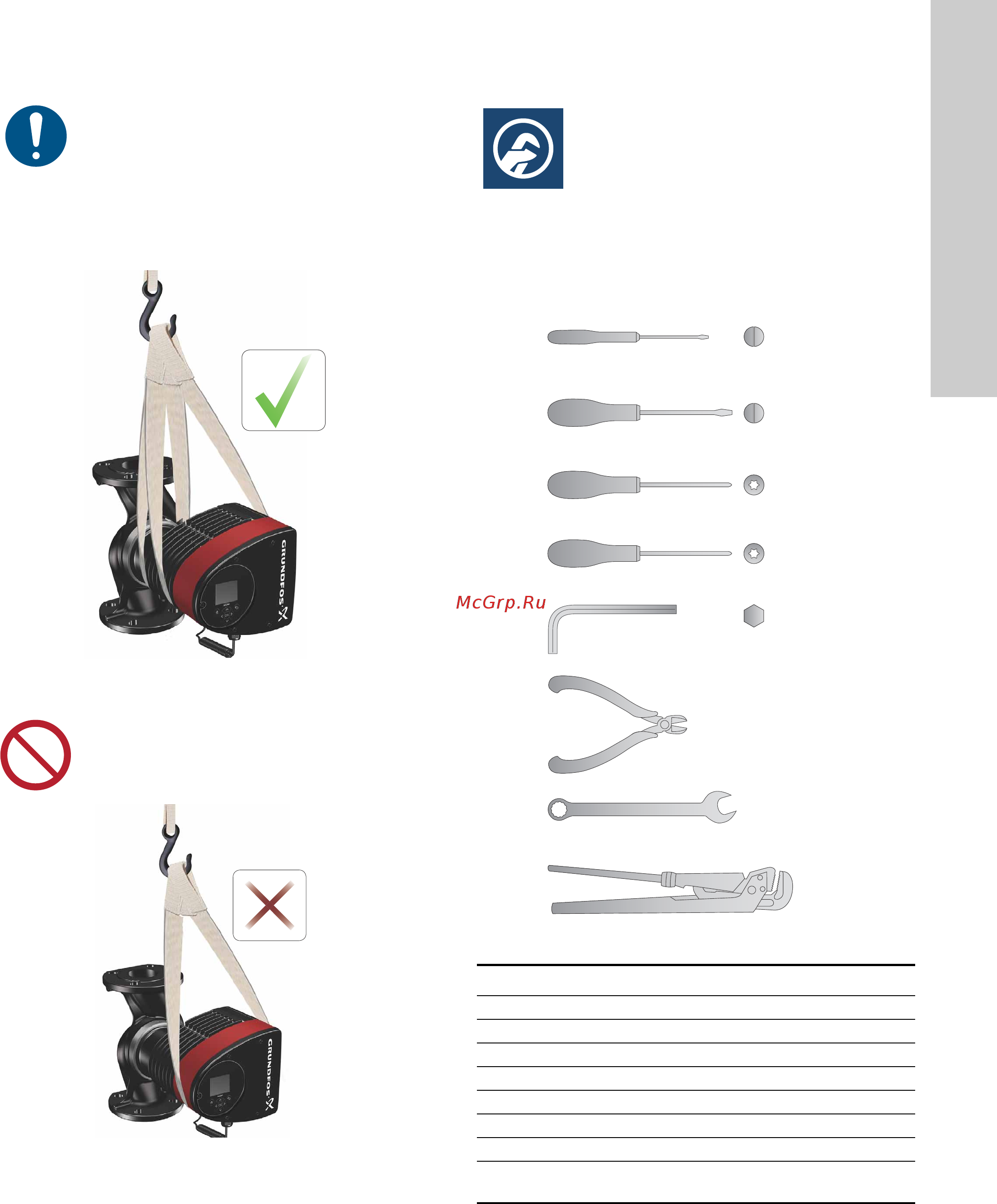

2.3 Lifting the pump

Always lift directly on the pump head or the cooling fins when

handling the pump. See fig. 5.

For large pumps, it may be necessary to use lifting equipment.

Position the lifting straps as illustrated in fig. 5.

Fig. 5 Correct lifting of pump

Fig. 6 Incorrect lifting of pump

3. Installing the product

3.1 Location

The pump is designed for indoor installation.

3.2 Tools

Fig. 7 Recommended tools

Observe local regulations concerning limits for

manual lifting or handling.

TM05 5820 3216

Do not lift the pump head by the control box, i.e. the

red area of the pump. See fig. 6.

TM05 5821 3216

TM05 6472 4712

Pos. Tool Size

1 Screwdriver, straight slot 0.6 x 3.5 mm

2 Screwdriver, straight slot 1.2 x 8.0 mm

3 Screwdriver, torx bit TX10

4 Screwdriver, torx bit TX20

5 Hexagon key 5.0 mm

6 Side cutter

7 Open-end spanner Depending on DN size

8 Pipe wrench

Only used for pumps

with unions

0.6 x 3.5

5.0

1.2 x 8.0

TX20

TX10
