Grundfos MAGNA3 D 32-80 180 97924451 [9/1656] Control box positions

English (GB)

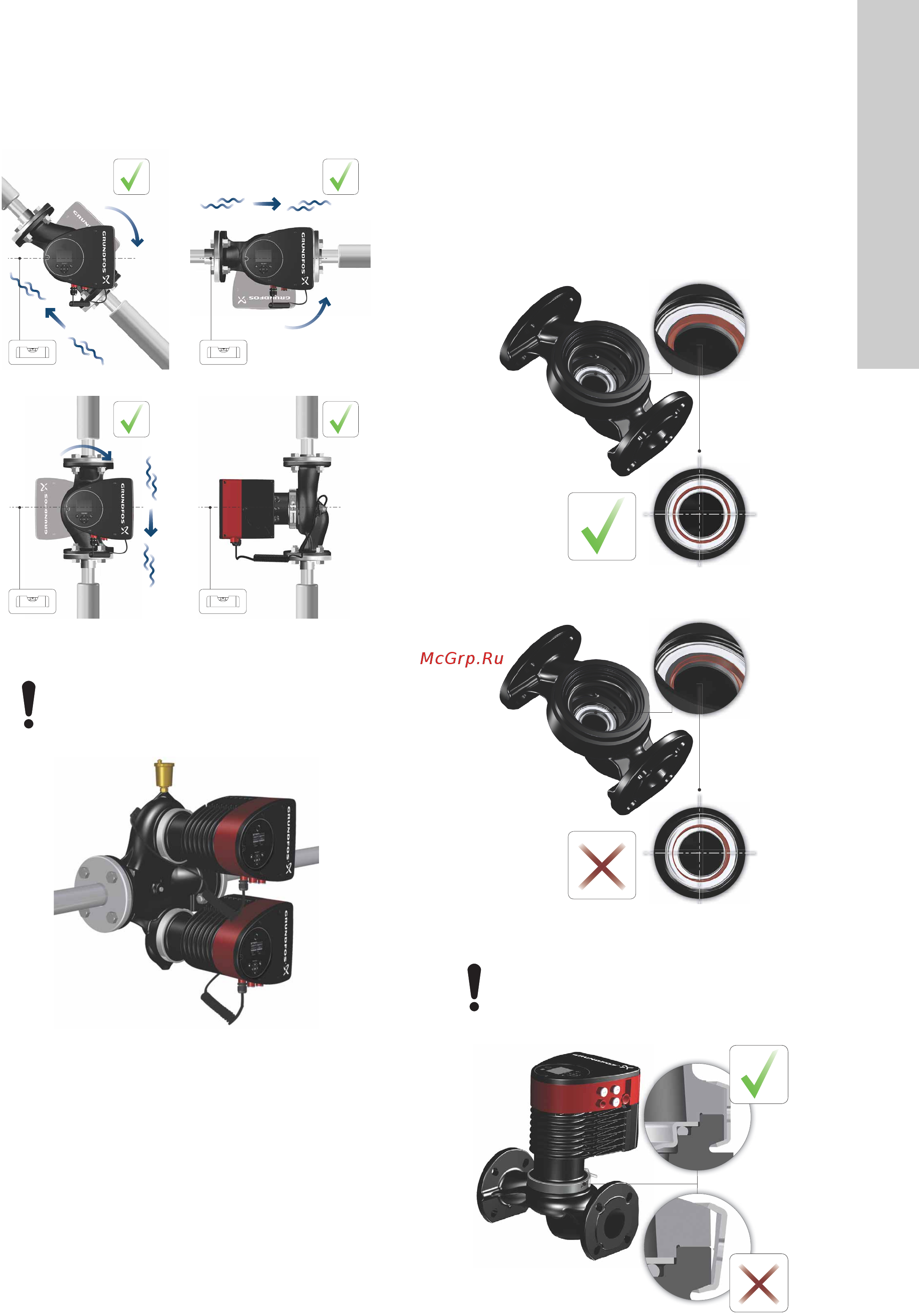

3.5 Control box positions

To ensure adequate cooling, make sure that the control box is in

horizontal position with the Grundfos logo in vertical position. See

fig. 9.

Fig. 9 Pump with control box in horizontal position

Fig. 10 Automatic vent

3.6 Pump head position

If you remove the pump head before installing the pump in the

pipes, pay special attention when fitting the pump head to the

pump housing:

1. Visually check that the floating ring in the sealing system is

centred. See figures 11 and 12.

2. Gently lower the pump head with rotor shaft and impeller into

the pump housing.

3. Make sure that the contact face of the pump housing and that

of the pump head are in contact before you tighten the clamp.

See fig. 13.

Fig. 11 Correctly centred sealing system

Fig. 12 Incorrectly centred sealing system

Fig. 13 Fitting the pump head to the pump housing

TM05 2915 3216

Fit twin-head pumps installed in horizontal pipes

with an automatic vent, Rp 1/4, in the upper part of

the pump housing. See fig. 10.

TM05 6061 3216

TM05 6650 3216TM05 665132162

Observe the position of the clamp before you

tighten it. Incorrect position of the clamp will cause

leakage from the pump and damage the hydraulic

parts in the pump head. See fig. 13.

TM05 5837 3216
