English (GB)
35

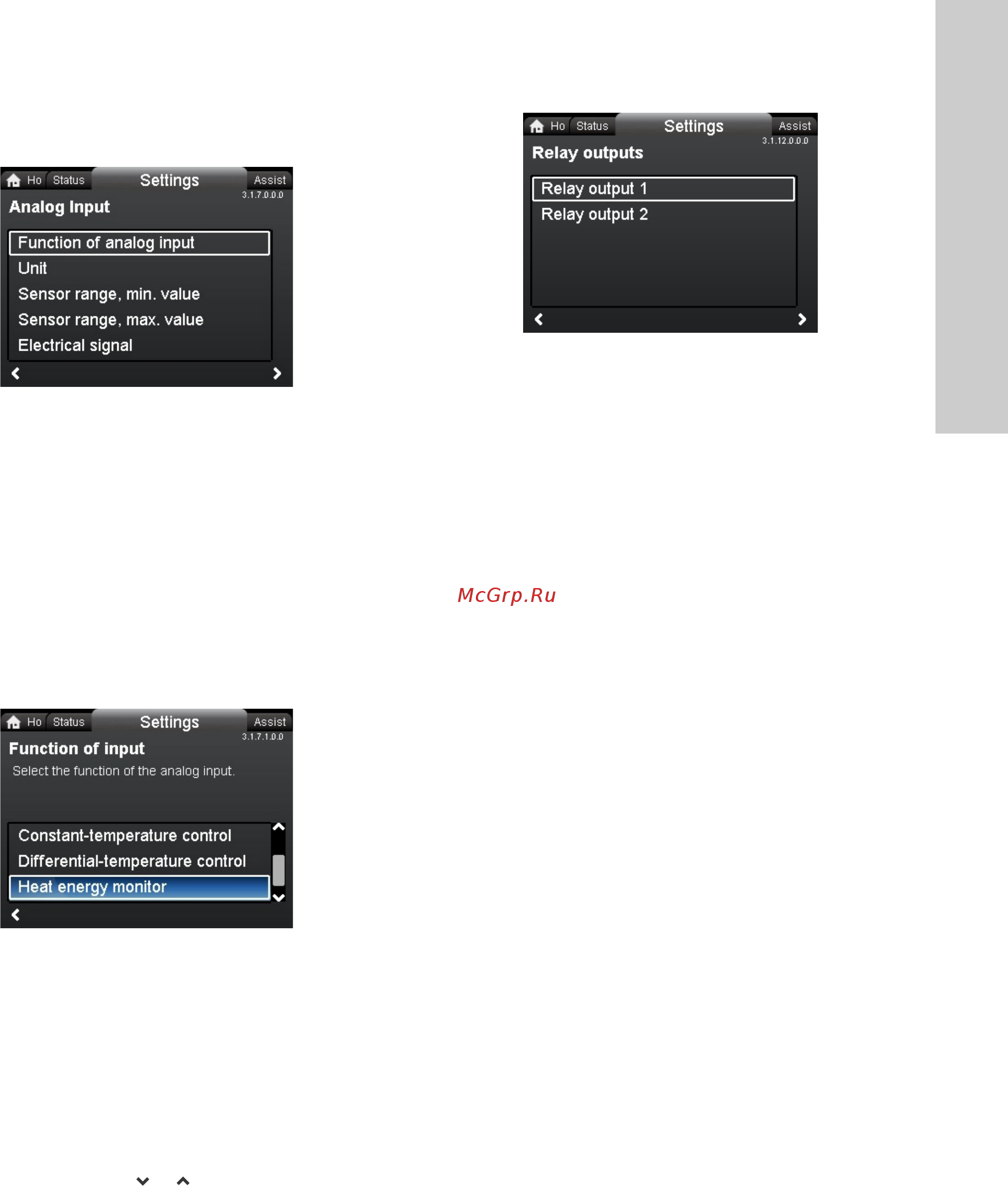

8.6.7 "Analog Input"
In this menu, you can set an analog input such as a temperature
sensor to activate the heat-energy-monitor function. See fig. 57.
Navigation
"Home" > "Settings" > "Analog Input"
"Analog Input"
•"Function of analog input"
•"Unit"
•"Sensor range, min. value"
•"Sensor range, max. value"
•"Electrical signal".
"Function of analog input"
Choose the function of input, for example heat energy monitor as
in the example below.
Navigation
"Home" > "Settings" > "Analog Input" > "Function of analog input"
•"Not active"
•"Differential-pressure control"
•"Constant-temperature control"
•"Differential-pressure control"
•"Heat energy monitor"
•"External setpoint influence"
Setting:
1. Select function mode with or .
2. Press [OK] to enable the function mode.
When you have selected the function of the input, specify the
sensor parameters by filling in the right values in unit, sensor
range, etc.
You can also set the analog input via the "Assist" menu where a
wizard guides you through each step of the configuration. See
8.8.5 "
Setup, analog input
".
8.6.8 "Relay outputs"
Navigation
"Home" > "Settings" > "Relay outputs"
"Relay outputs"
•"Relay output 1"
•"Relay output 2".
You can set the relay outputs to the following:
•"Not active"
•"Ready"
•"Alarm"
•"Operation".
The pump incorporates two signal relays for a potential-free
alarm signal, ready signal and operating signal. For further
information, see section 7.4.1 Relay outputs.
Set the function of the signal relays, alarm signal (factory setting),
ready signal and operating signal on the pump control panel.
The output is electrically separated from the rest of the controller.
The signal relay is operated as follows:
•"Not active"
The signal relay is deactivated.
•"Ready"
The signal relay is active when the pump is running or has
been set to stop, but is ready to run.
•"Alarm"
The signal relay is activated together with the red indicator
light on the pump.
•"Operation"
The signal relay is activated together with the green indicator
light on the pump.
3.1.7.0.0.0 Analog input3.1.7.1.0.0 Function of input
3.1.12.0.0.0 Relay outputs
