Инструкция по эксплуатации Страница: 42

Grundfos MAGNA3 D 32-80 180 97924451 [42/1656] Multi pump setup

English (GB)

8.8.3 "Multi-pump setup"

Navigation

"Home" > "Assist" > "Multi-pump setup"

1. Follow the step-by-step guide to complete the multipump

setup.

2. Check the entered values.

3. Press [OK] to confirm and enable the settings.

Multipump function

The multipump function enables the control of single-head pumps

connected in parallel and twin-head pumps without the use of

external controllers. The pumps in a multipump system

communicate with each other via the wireless GENIair

connection.

Pump system:

• Twin-head pump.

• Two single-head pumps connected in parallel. The pumps

must be of the same type and size. Each pump requires a

non-return valve in series with the pump.

You can set a multipump system from a selected pump, which will

then be the master pump.

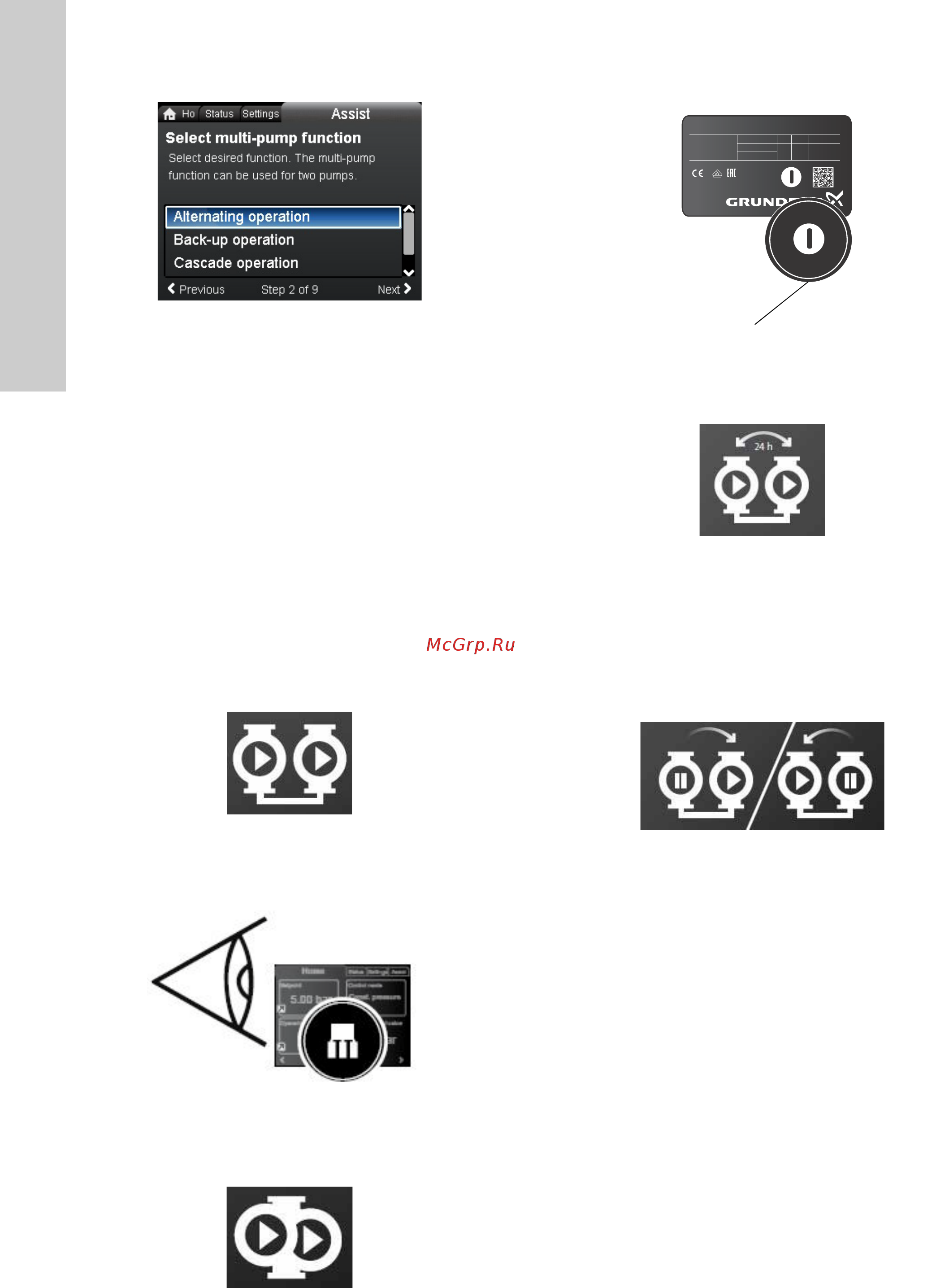

Fig. 49 Single-head pumps connected in parallel

Check the display to identify the master pump in a multipump

system. See fig. 50 and "Home" display icons.

Fig. 50 Identify the master pump in a multipump system

A twin-head pump is set to multipump function from factory. Here

pump head I is defined as master pump.

Fig. 51 Twin-head pumps

Check the nameplate to identify the master pump. See fig. 52.

Fig. 52 Identify the master pump on a twin-head pump

"Alternating operation"

Fig. 53 "Alternating operation"

Alternating operation functions as a duty-standby operating mode

and is possible with two pumps of same size and type connected

in parallel. The main purpose of the function is to ensure an even

amount of running hours and to ensure that the standby pump

takes over if the running pump stops due to an alarm.

"Back-up operation"

Fig. 54 "Back-up operation"

Backup operation is possible with two pumps of same size and

type connected in parallel. Each pump requires a non-return

valve in series with the pump.

One pump is running continuously. The backup pump is operated

for a short time each day to prevent seizing up. If the duty pump

stops due to a fault, the backup pump starts automatically.

Undef-083 Select multi pump functionTM067498 3516TM06 7499 3516TM06 7500 3516

TM06 6890 2516TM06 7501 3516TM06 7502 3516

XXXXXXXXXXXXXXXXXXXXXXXX

P/N: XXXXXXXX

S/N: XXXXXXXX

PC: XXXX

Model: X

IP XXX TF XXX

Grundfos Holding A/S, DK - 8850 Bjerringbro, Denmark

((,;;;3DUW;

Made in Germany

0LQ

0D[

;;;

;;

XXXX

XXXX;;;

[A] P

1 [W] MPa

I is defined as master.
