![Tp-Link T1700G-28TQ V2 [104/772] Using the gui](/views2/1472751/page104/bg68.png)
Configuration Guide 79
Configuring Stack Stack Configuration
2
Stack Configuration
To complete the basic stack configuration, follow these steps:
1) Configure the unit ID, the priority and enable the stack ports.
2) Power off all the switches in the stack.
3) Connect all the switches in the stack .
4) Power up the stack members in turn.
5) Display stack information.
Configuration Guidelines
Before configuring the stack, we highly recommend you to assign the highest priority value
to the switch that you prefer to be the stack master, and to plan the unit ID of each switch.
Some configuration needs device reboot to take effect, so you are kindly recommended
to configure the switches first, power them off and connect the devices in a ring or
chain stack topology. Then you can power them on and the devices will join the stack
automatically. After stack is established, users can log in the stack system through any
member devices to configure and manage it.
2.1 Using the GUI
2.1.1 Configuring the Stack

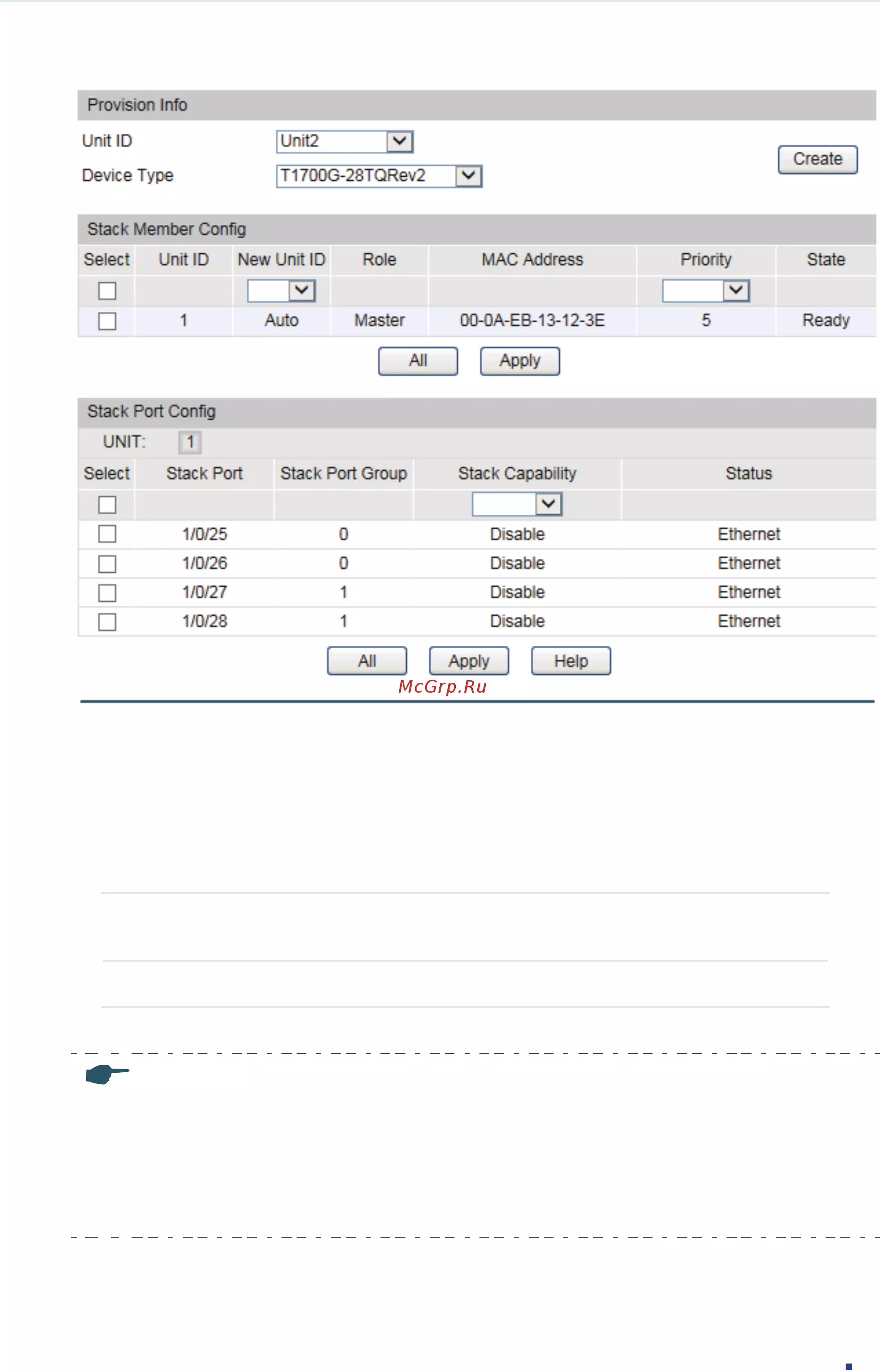

Choose the menu Stack > Stack Management > Stack Config to load the following page.
