Configuring Layer 2 Multicast IGMP Snooping Configurations
Configuration Guide
302
Mode Select Permit or Deny as the filtering mode.
Permit: similar to a whitelist, means that the switch only allows specified member
ports to join specific multicast groups.
Deny: similar to a blacklist, means that the switch disallows specific member ports
to join specific multicast groups.
2) Click Create.
Searching Profile
Enter the search condition in the Search Option field to search the profile in the IGMP
Profile Info table.
Editing IP Range of the Profile
Follow these steps to edit profile mode and its IP range:
1) Click Edit in the IGMP Profile Info table. Edit its IP range and click Add to save the
settings.

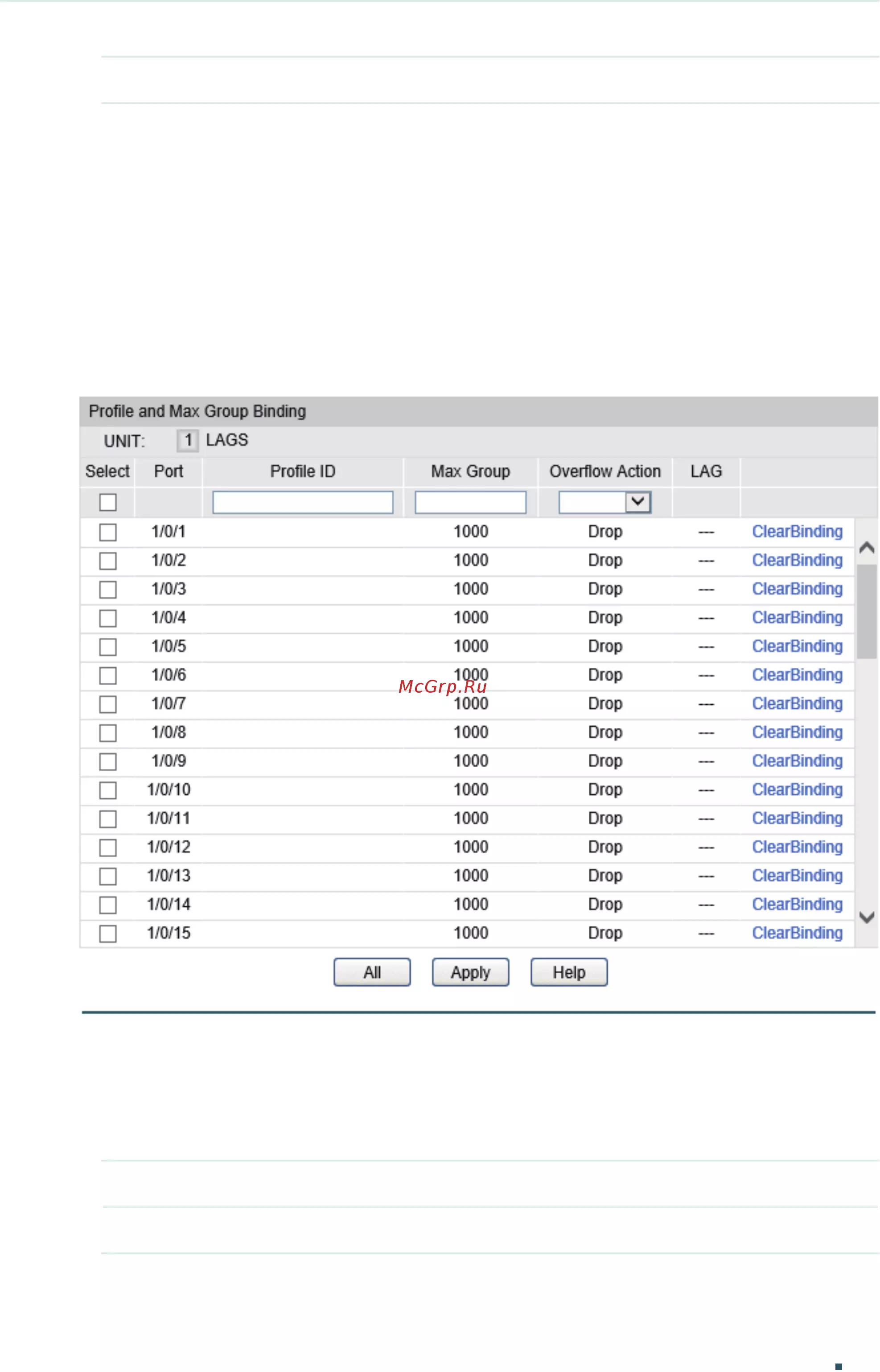

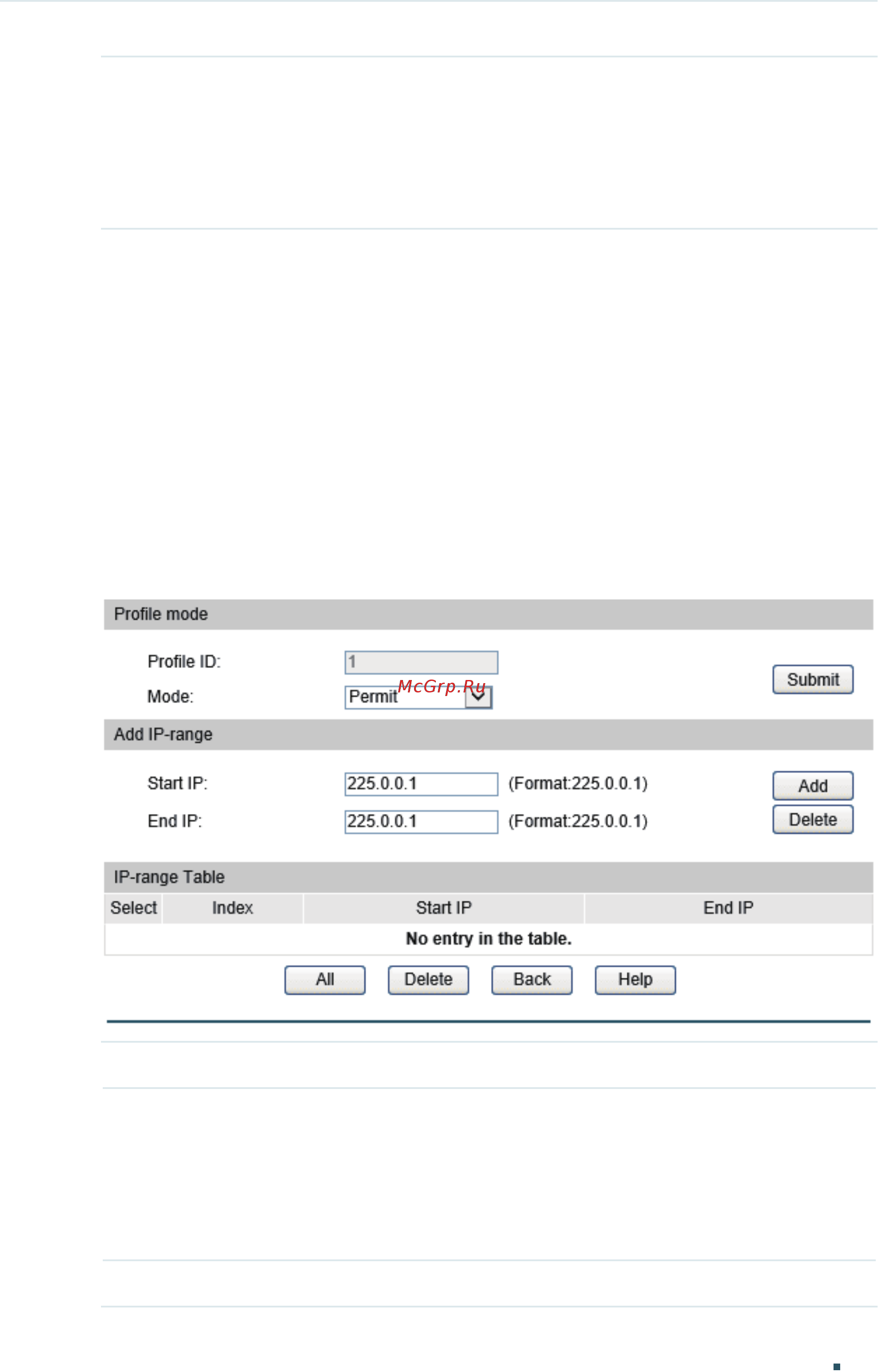

Figure 2-7 Add IP-range
Profile ID Displays the ID of the profile to be edited.
Mode Select Permit or Deny as the filtering mode.
Permit: similar to a whitelist, means that the switch only allows specified member
ports to join specific multicast groups.
Deny: similar to a blacklist, means that the switch disallows specific member ports
to join specific multicast groups.
Start IP Specify the Start IP of the multicast IP range.
