Configuration Guide 516
Configuring ACL ACL Configuration
1) Select a Standard-IP ACL ID from the drop-down list, enter a Rule ID, then specify the operation for
the matched packets.
ACL ID
Select a
Standard-IP
ACL from the drop-down list.
Rule ID Enter an ID number to identify the rule.
It should not be the same as any existing
Standard-IP
ACL Rule IDs.
Operation Select an action to be taken when a packet matches the rule.
Permit: To forward the matched packets.
Deny: To discard the matched packets.
2) Define the rule’s packet-matching criteria.
S-IP/Mask Specify the source IP address with a mask. A value of 1 in the mask indicates
that the corresponding bit in the address will be matched.
D-IP/Mask Specify the destination IP address with a mask. A value of 1 in the mask
indicates that the corresponding bit in the address will be matched.
3) (Optional)Select a time-range from the drop-down list.
Time-Range Select a time-range during which the rule will take effect. The default value is
No Limit, which means the rule is always in effect..
Configuring the Extend-IP ACL Rule
Choose the menu ACL > ACL Config > Extend-IP ACL to load the following page.

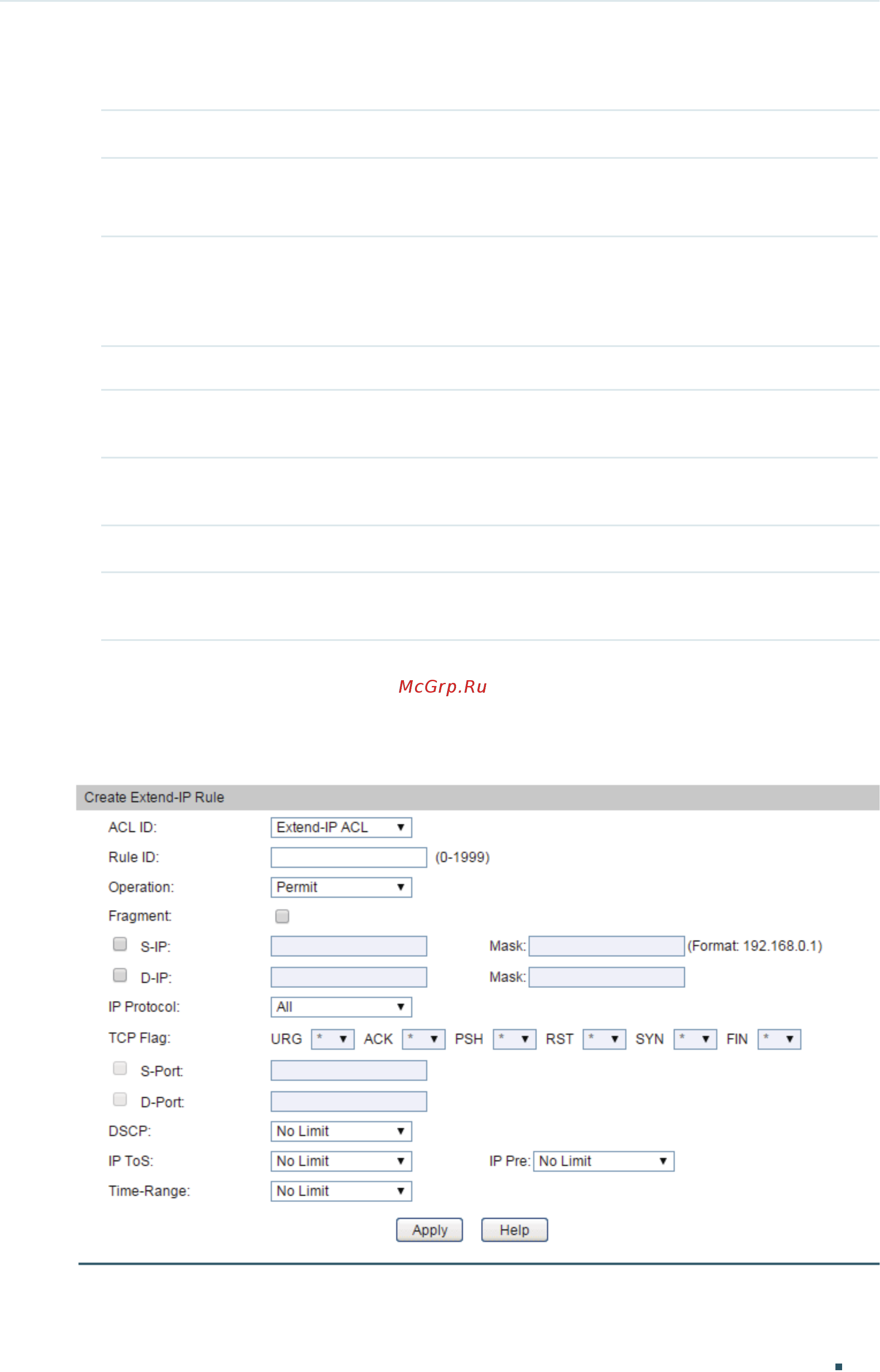

Figure 2-6 Creating the Extend-IP ACL Rule
Follow these steps to create the Extend-IP ACL:
