Configuring ACL ACL Configuration
Configuration Guide
511
2
ACL Configuration
To configure ACL Binding, follow these steps:
1) Configure a time-range during which the ACL is in effect.
2) Create a Policy and configure the policy action for packets that match the ACL rule.
3) Bind the ACL to a port or VLAN to make it effective.
To configure Policy Binding, follow these steps:
1) Configure a time-range during which the ACL takes effect.
2) Create an ACL and configure the rules to filter different packets.
3) Create a Policy and configure the policy action for packets that match the ACL rule.
4) Bind the Policy to a port or VLAN to make it effective.
Configuration Guidelines
A packet “matches” an ACL rule when it meets the rule’s matching criteria. The resulting
action will be either to “permit” or “deny”the packet that matches the rule.
If no ACL rule is configured or no matching rule is found, the packets will be forwarded
without being processed by the ACL.
2.1 Using the GUI
2.1.1 Configuring Time-Range
Some ACL-based services or features may need to be limited to take effect only during a
specified time period. In this case, you can configure time-range for the ACL.

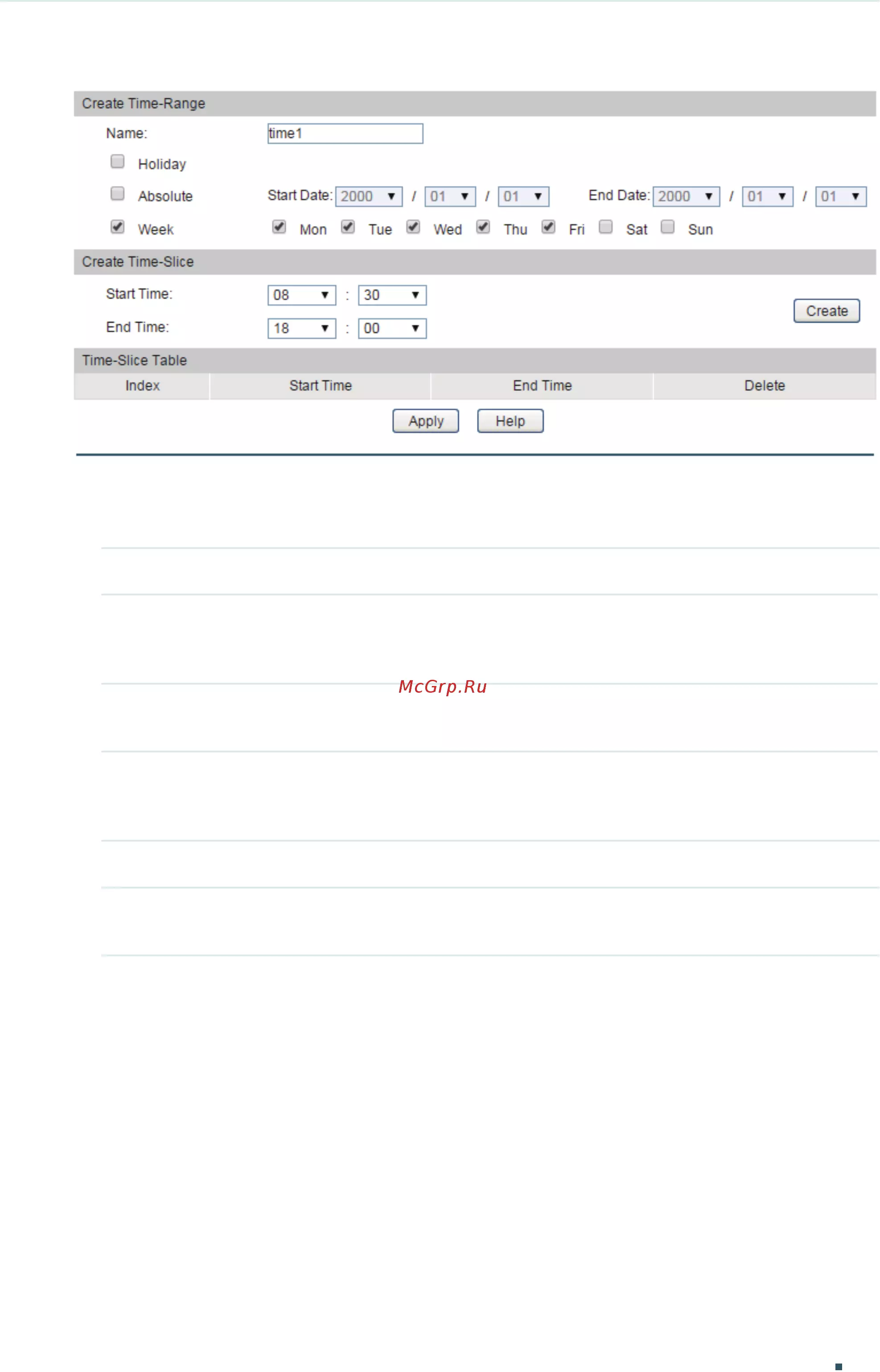

Choose the menu ACL > Time-Range > Time-Range Create to load the following page.
