Configuring ACL ACL Configuration
Configuration Guide
521

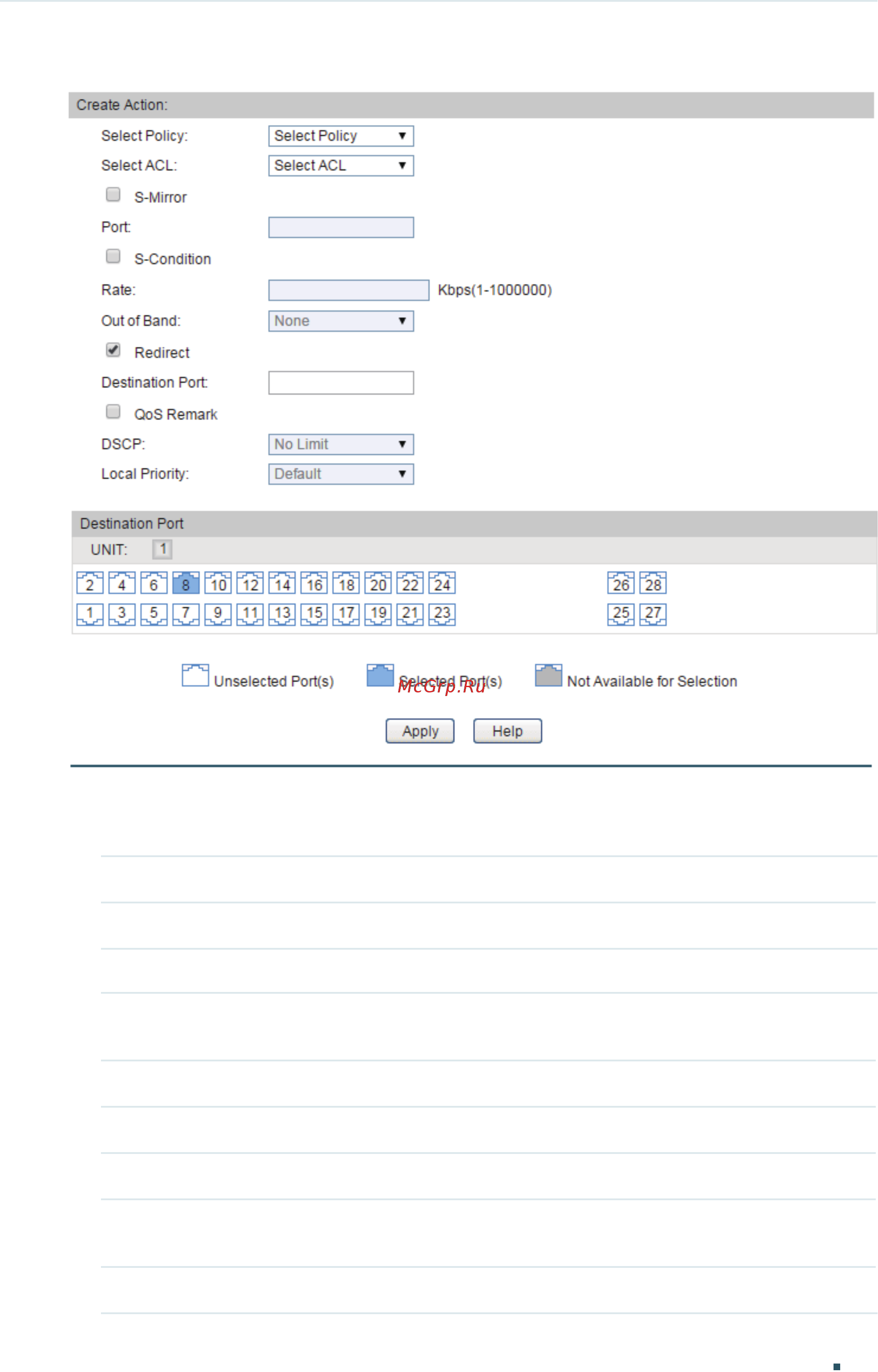

Figure 2-10 Configuring the Action of the Policy
Follow these steps to configure the action of the policy:
1) Select your preferred policy and ACL.
Select Policy Select a Policy from the drop-down list.
Select ACL Select an ACL to be applied to the Policy.
2) Configure the actions to be taken for the matched packets.
S-Mirror Configure port mirroring for the matched packets. Enter a destination port to
which the packets will be mirrored.
Port Enter a destination port.
S-Condition Configure rate limiting for the matched packets.
Rate Specify the transmission rate for the matched packets.
Out of Band Select either “none” or “discard” as the action to be taken for packets whose
rate is beyond the specified rate.
