Configuration Guide 552
Configuring Network Security IP-MAC Binding Configurations
2
IP-MAC Binding Configurations
You can complete IP-MAC binding in two ways:
Manual Binding
Dynamical Binding (including ARP Scanning and DHCP Snooping)
Additionally, you can search the specified entries in the Binding Table.
2.1 Using the GUI
2.1.1 Binding Entries Manually
You can manually bind the IP address, MAC address, VLAN ID and the Port number
together on the condition that you have got the related information of the hosts on the
network.
Choose the menu Network Security > IP-MAC Binding > Manual Binding to load the
following page.

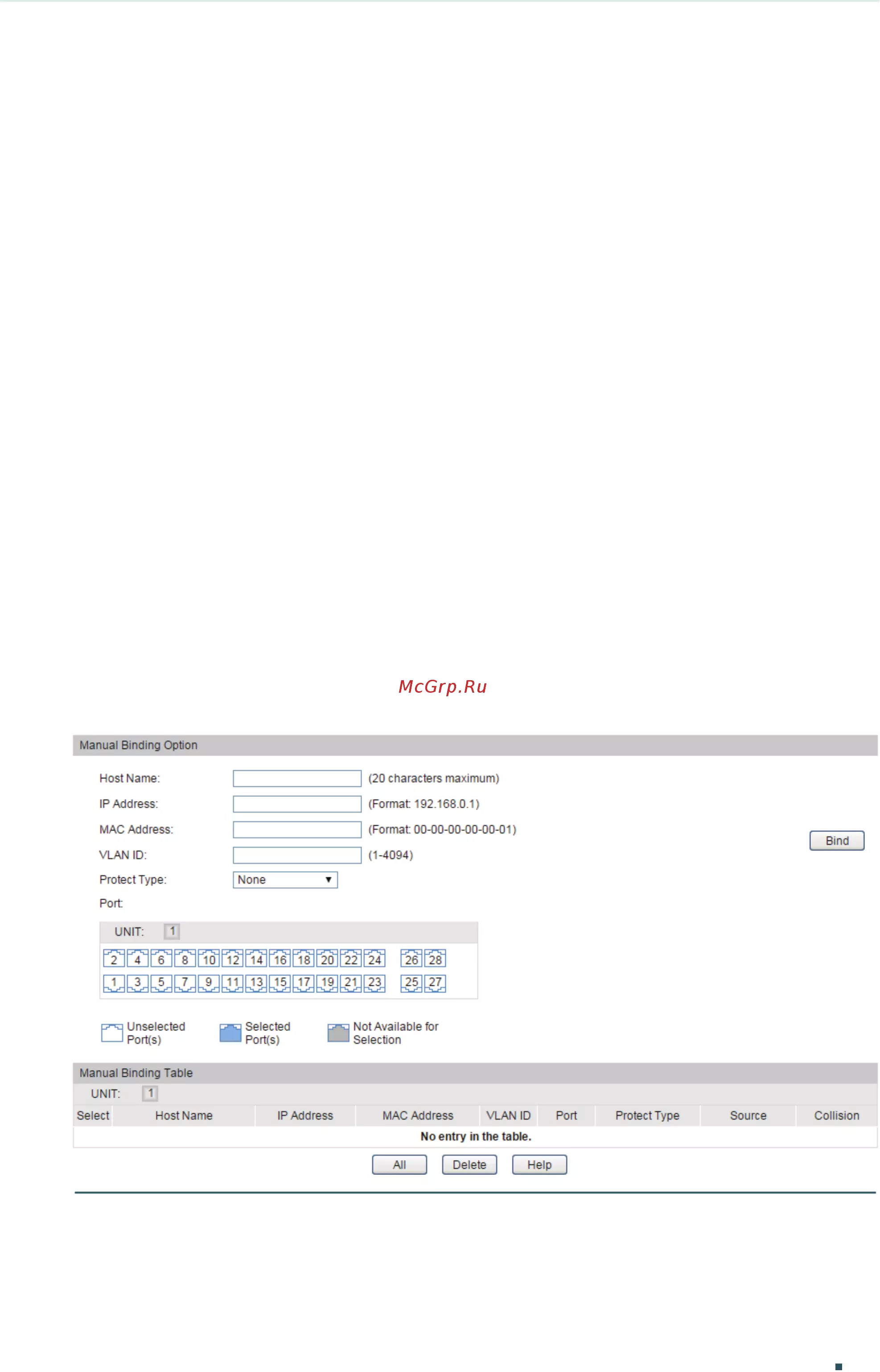

Figure 2-1 Manual Binding
In the Manual Binding Option section, follow these steps to configure IP-MAC Binding:
1) Enter the following information to specify a host.
