Configuration Guide 91
Configuring Stack Configuration Example

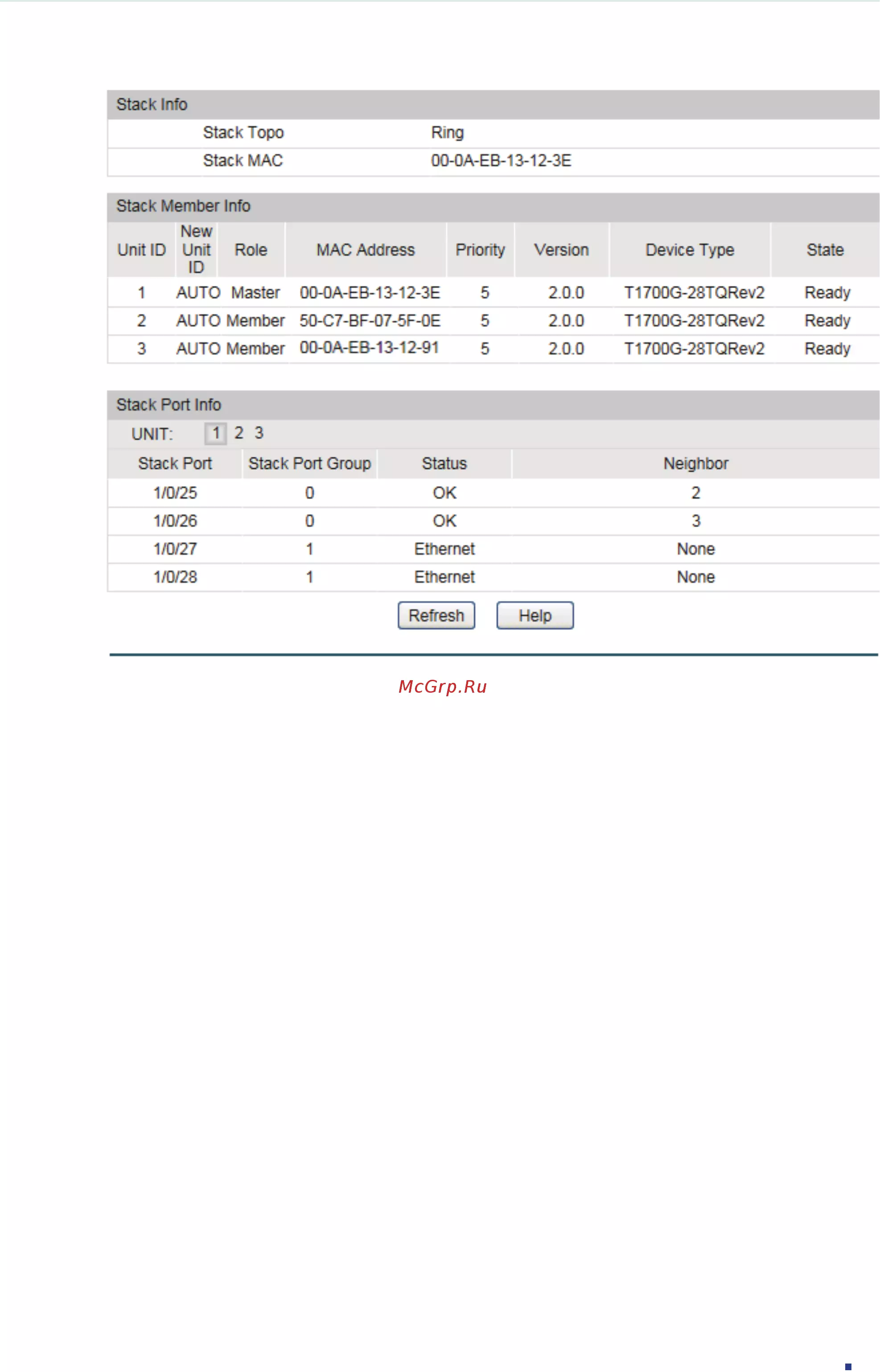

Figure 3-4 View the Ring Stack
9) Click Save Config to save the settings.
3.1.4 Using the CLI

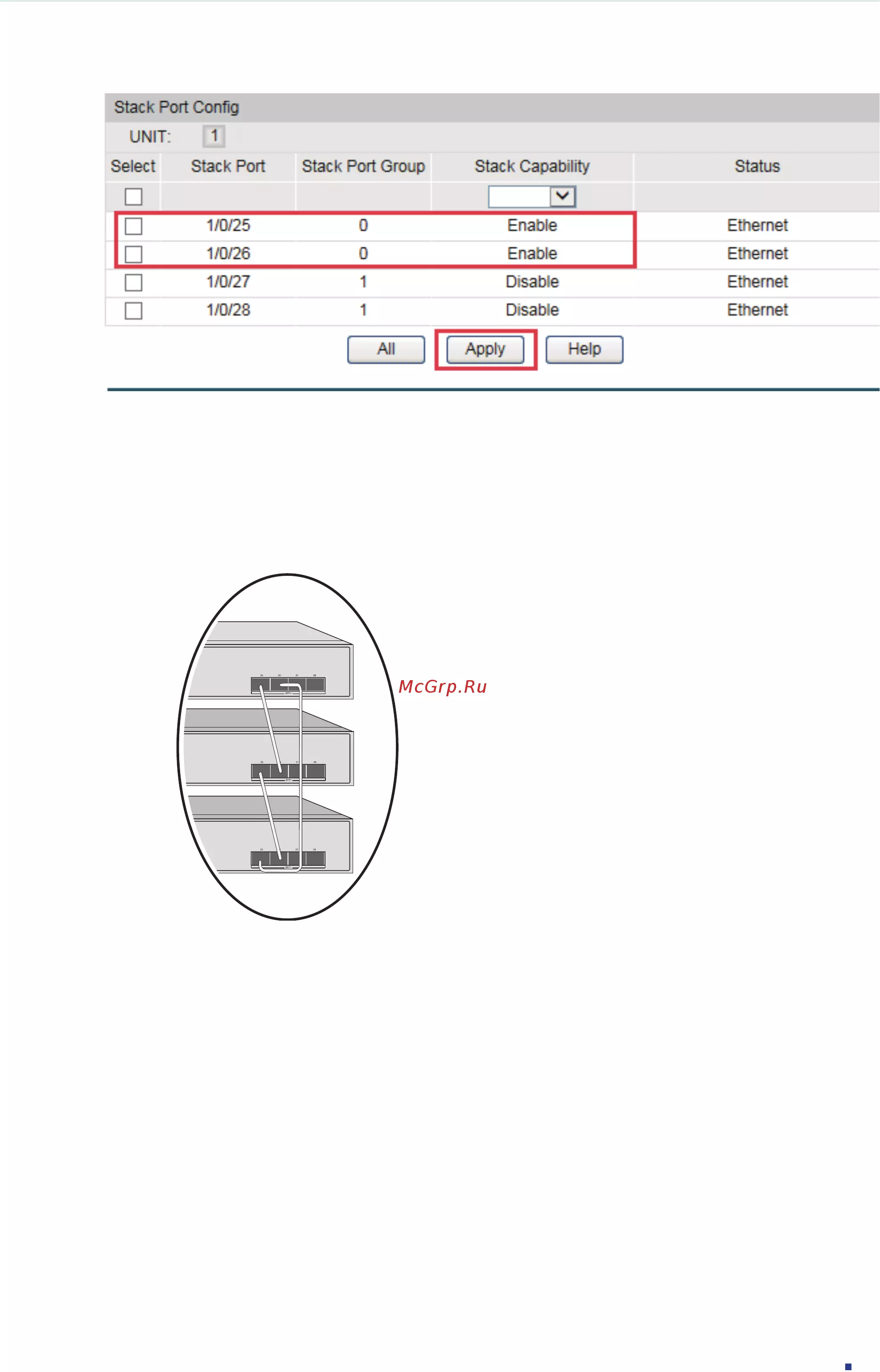

1) Power on the three switches and enable their stack ports 1/0/25 and 1/0/26
respectively. The following commands are demonstrated with switch A.
Switch_A#configure
Switch_A
(config)#switch stack-port interface ten-gigabitEthernet 1/0/25
Enabling/disabling a stack port may cause undesired stack changes. Continue?[Yes/No]
Y
Switch_A
(config)#switch stack-port interface ten-gigabitEthernet 1/0/26
Enabling/disabling a stack port may cause undesired stack changes. Continue?[Yes/No]
Y
Switch_A(config)#
2) Power off the three switches.

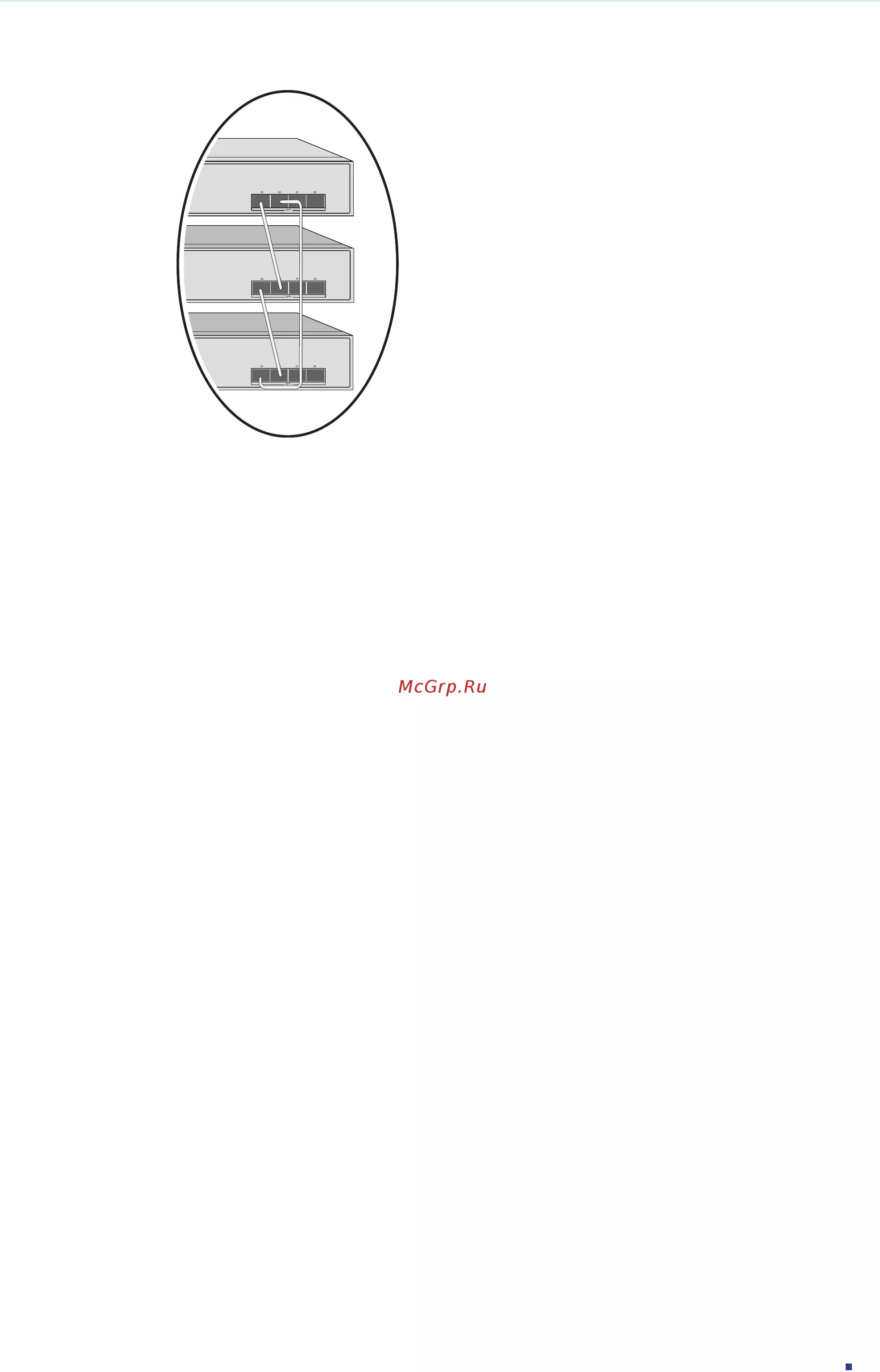

3) Connect the three switches as a ring topology with SFP module and SFP cable. For
example, connect switch A’s 1/0/25 to switch B’s 1/0/26, switch B’s 1/0/25 to switch C’s
1/0/26 and switch C’s 1/0/25 to switch A’s 1/0/26.
