![Tp-Link T1700G-28TQ V2 [301/772] Instance port config to load the following page set the path cost of port 1 0 2 in instance 2 as 400000](/img/pdf.png)
Tp-Link T1700G-28TQ V2 [301/772] Instance port config to load the following page set the path cost of port 1 0 2 in instance 2 as 400000
Превью страниц
Страница 301 /
772
![Tp-Link T1700G-28TQ V2 [301/772] Instance port config to load the following page set the path cost of port 1 0 2 in instance 2 as 400000](/views2/1472751/page301/bg12d.png)
Configuration Guide 276
Configuring Spanning Tree Configuration Example for MSTP

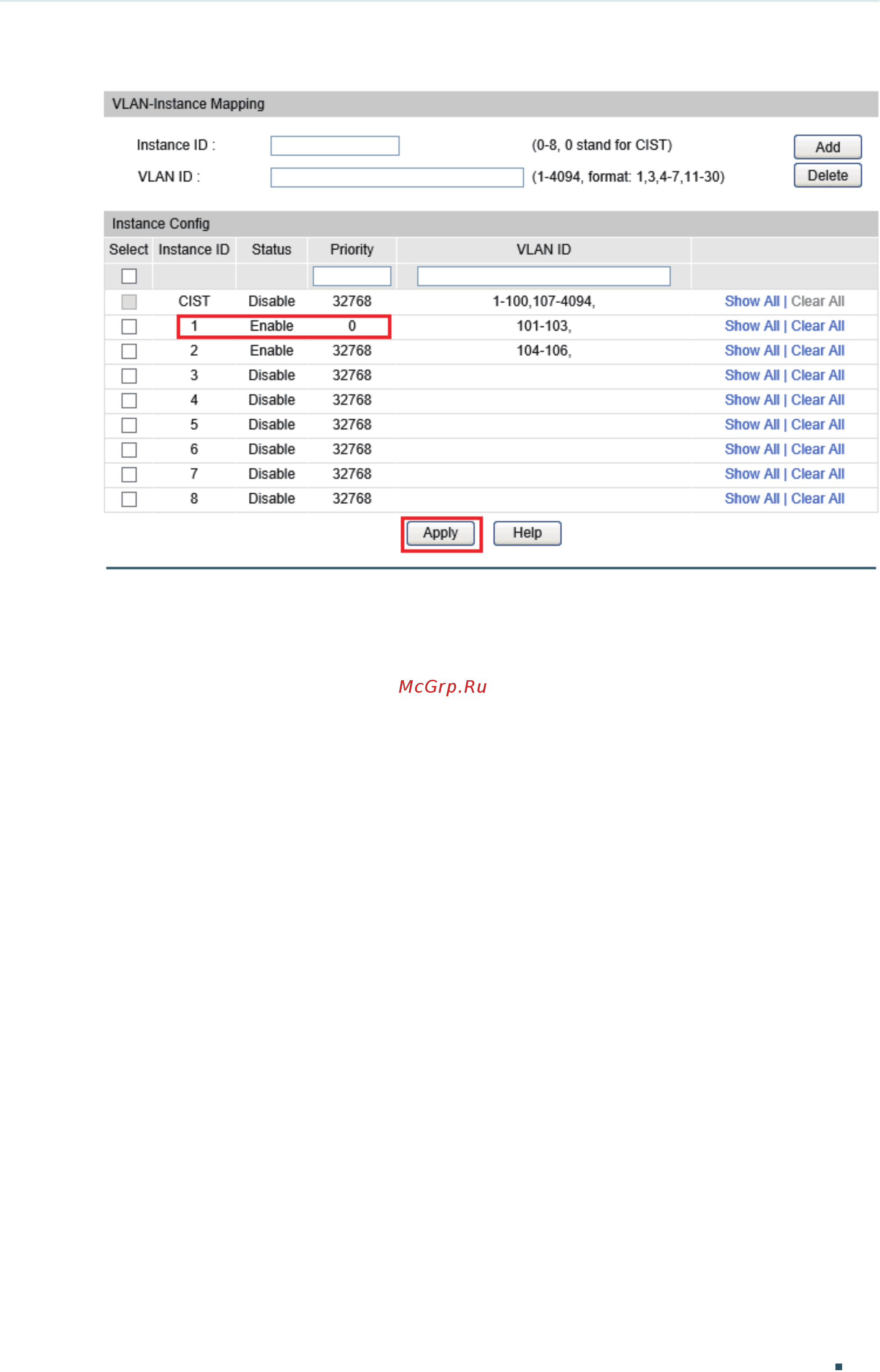

Figure 5-11 Configuring the Priority of Switch B in Instance 1

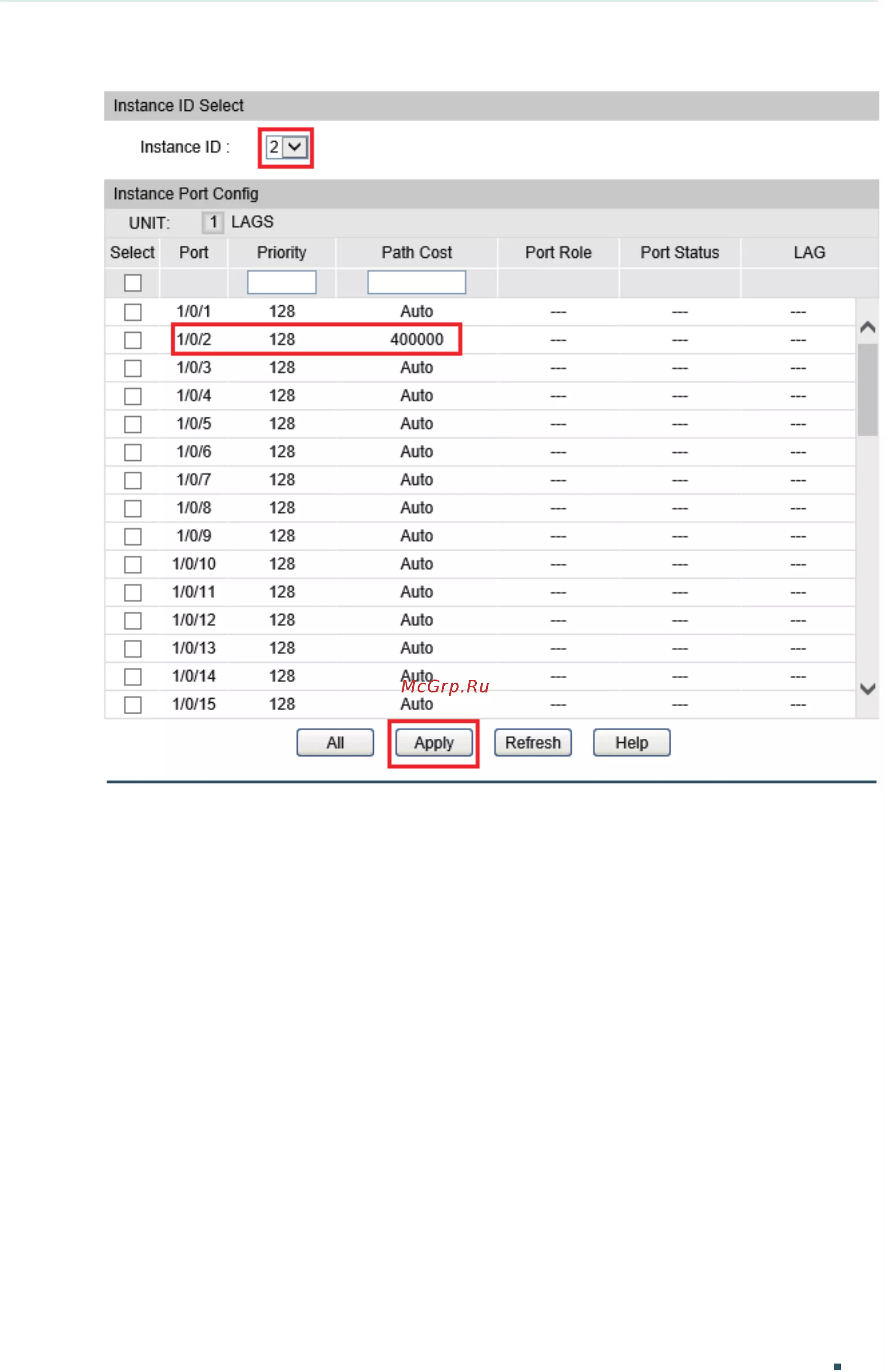

5) Choose the menu Spanning Tree > MSTP Instance > Instance Port Config to load the
following page. Set the path cost of port 1/0/2 in instance 2 as 400000.
