Configuration Guide 333
Configuring Layer 2 Multicast Configuring MLD Snooping

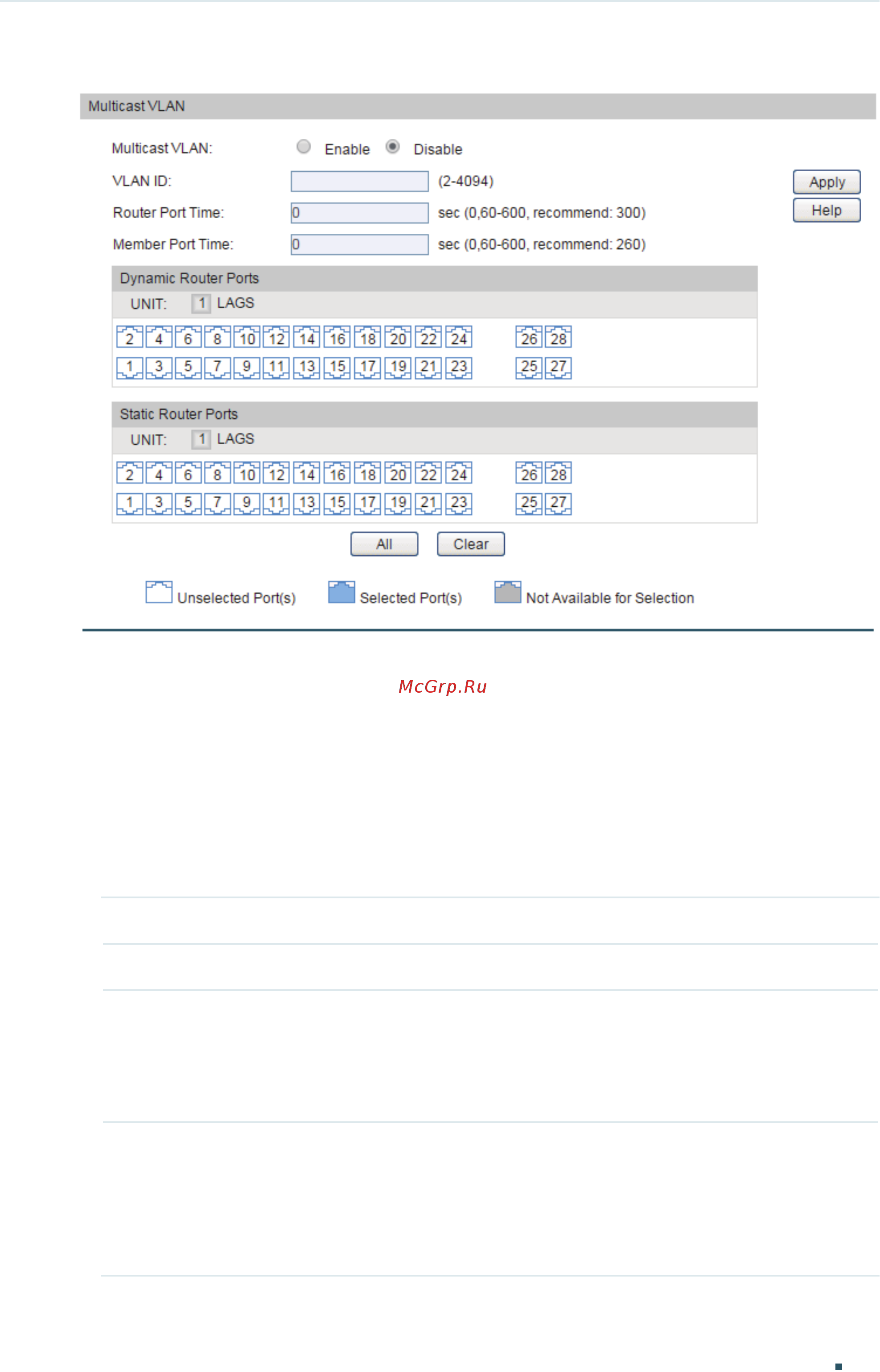

Figure 3-4 Multicast VLAN Config
Creating Multicast VLAN and Configuring Basic Settings
In the Multicast VLAN section, follow these steps to enable Multicast VLAN and to finish the
basic settings:
1) Set up the VLAN that the router ports and the member ports are in. For details, please
refer to
Configuring 802.1Q VLAN
.
2) Enable Multicast VLAN, configure the specific VLAN to be the multicast VLAN, and
configure the Router Port Time and Member Port Time.
Multicast VLAN Select Enable to enable multicast VLAN function.
VLAN ID Specify the 802.1Q VLAN to be the multicast VLAN.
Router Port
Time
Specify the aging time of the router ports in the multicast VLAN. If the router port
does not receive any MLD general query message within the router port time,
the switch will no longer consider this port as a router port and delete it from the
router port table. The valid values are from 60 to 600 seconds. When the router
port time is 0, the VLAN uses the global time.
Member Port
Time
Specify the aging time of the member ports in the multicast VLAN. If the member
port does not receive any MLD membership report message from the multicast
group within the member port time, the switch will no longer consider this port as
a member port and delete it from the multicast forwarding table. The valid values
are from 60 to 600 seconds. When the member port time is 0, the VLAN uses the
global time.
3) Click Apply.
