Configuring ACL ACL Configuration
Configuration Guide
525

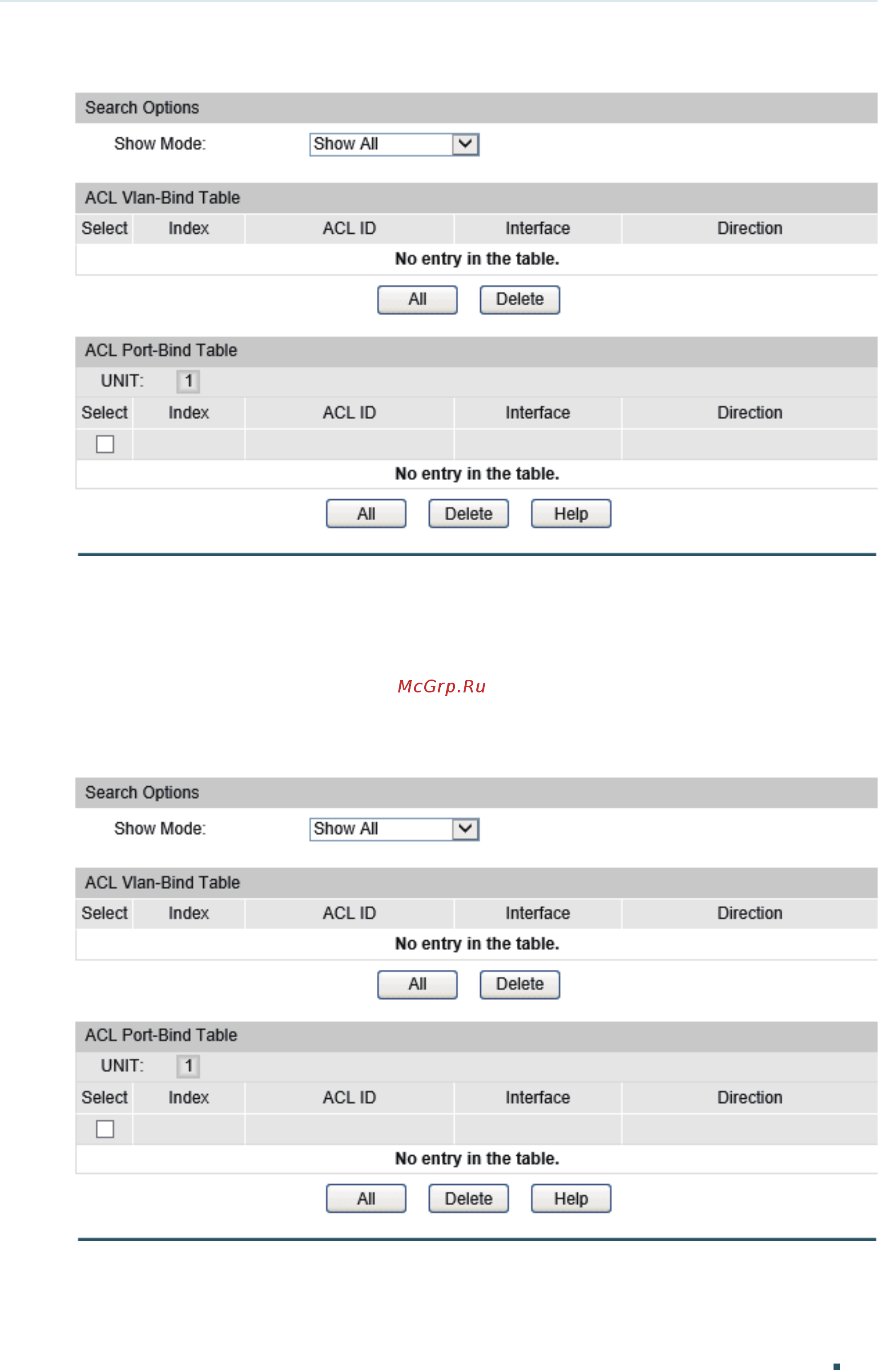

Figure 2-15 Verifying the ACL Binding
Verifying the Policy Binding
You can view both port binding and VLAN binding entries in the table. You can also delete
existing entries if needed.
Choose the menu ACL > Policy Binding > Binding Table to load the following page.
Figure 2-16 Verifying the Policy Binding
