Configuring Layer 2 Multicast IGMP Snooping Configurations
Configuration Guide
307
IGMP
Authentication
Select one or more ports and select Enable in the IGMP Authentication column.
2) Click Apply.
2.1.10 Configuring Static Member Port
This function allows you to specify a port as a static member port in the multicast group.
Choose the menu Multicast > Multicast Table > Static IPv4 Multicast Table to load the
following page.

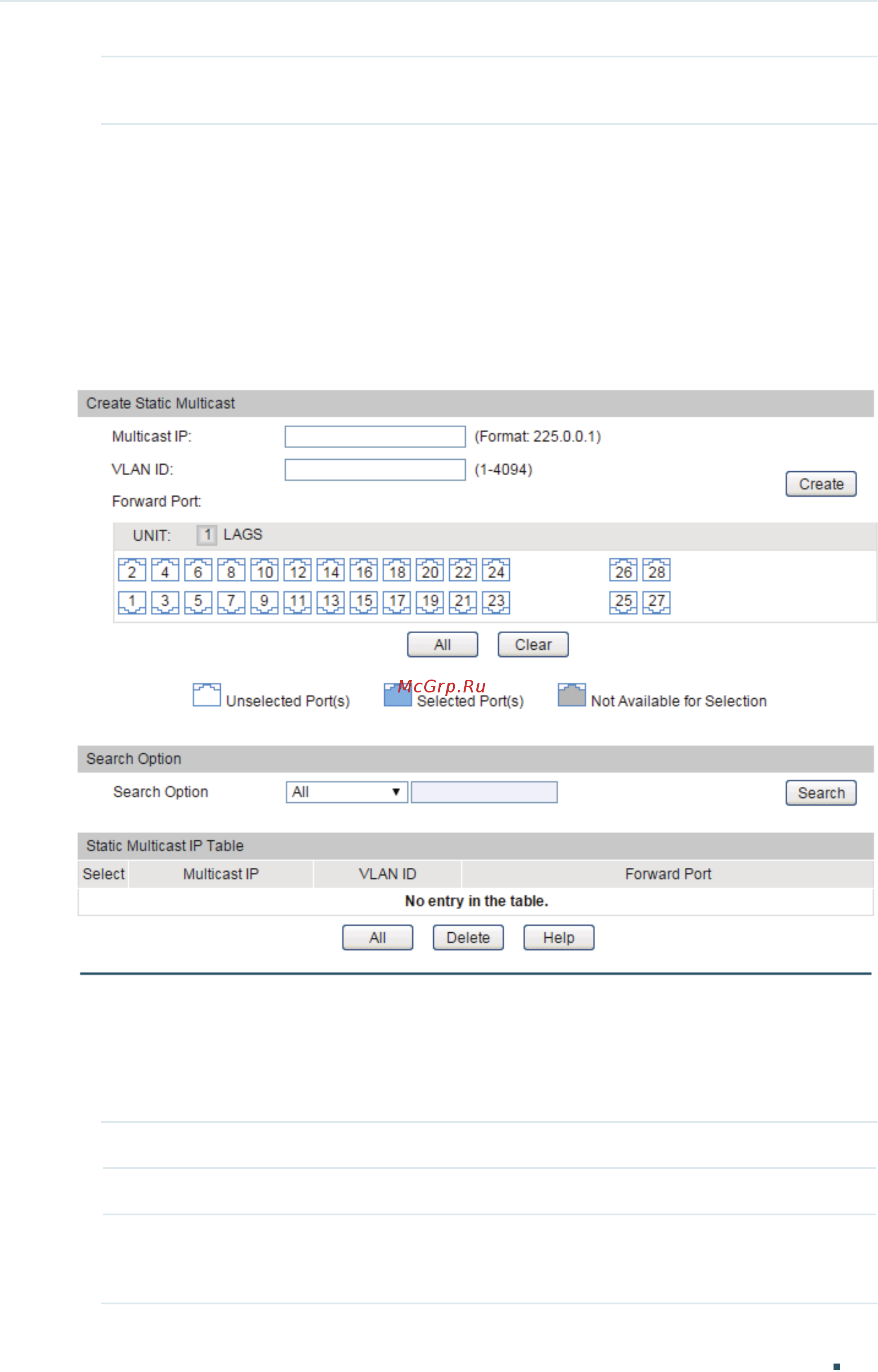

Figure 2-11 Static Member Port
Configuring Static Member Port
Follow these steps to configure static member port.
1) Enter the Multicast IP and VLAN ID. Specify the Static Member Port.
Multicast IP Specify the multicast group that the static member is in.
VLAN ID Specify the VLAN that the static member is in.
Forward Port Specify one or more ports to be the static member port in the multicast group.
Without aging, the static member port receives all multicast data sent to this
multicast group.
