Configuration Guide 303

Configuring Layer 2 Multicast IGMP Snooping Configurations

End IP Specify the End IP of the multicast IP range.

2) In the IP-range Table, you can select an IP range and click Delete to delete an IP range.

3) Click Submit to save the settings; click Back to go back to the previous page.

2.1.7 Binding Profile and Member Ports

With this function, you can configure each port’s filtering profile and the number of

multicast groups a port can join. Choose the menu Multicast > IGMP Snooping > Profile

Binding to load the following page.

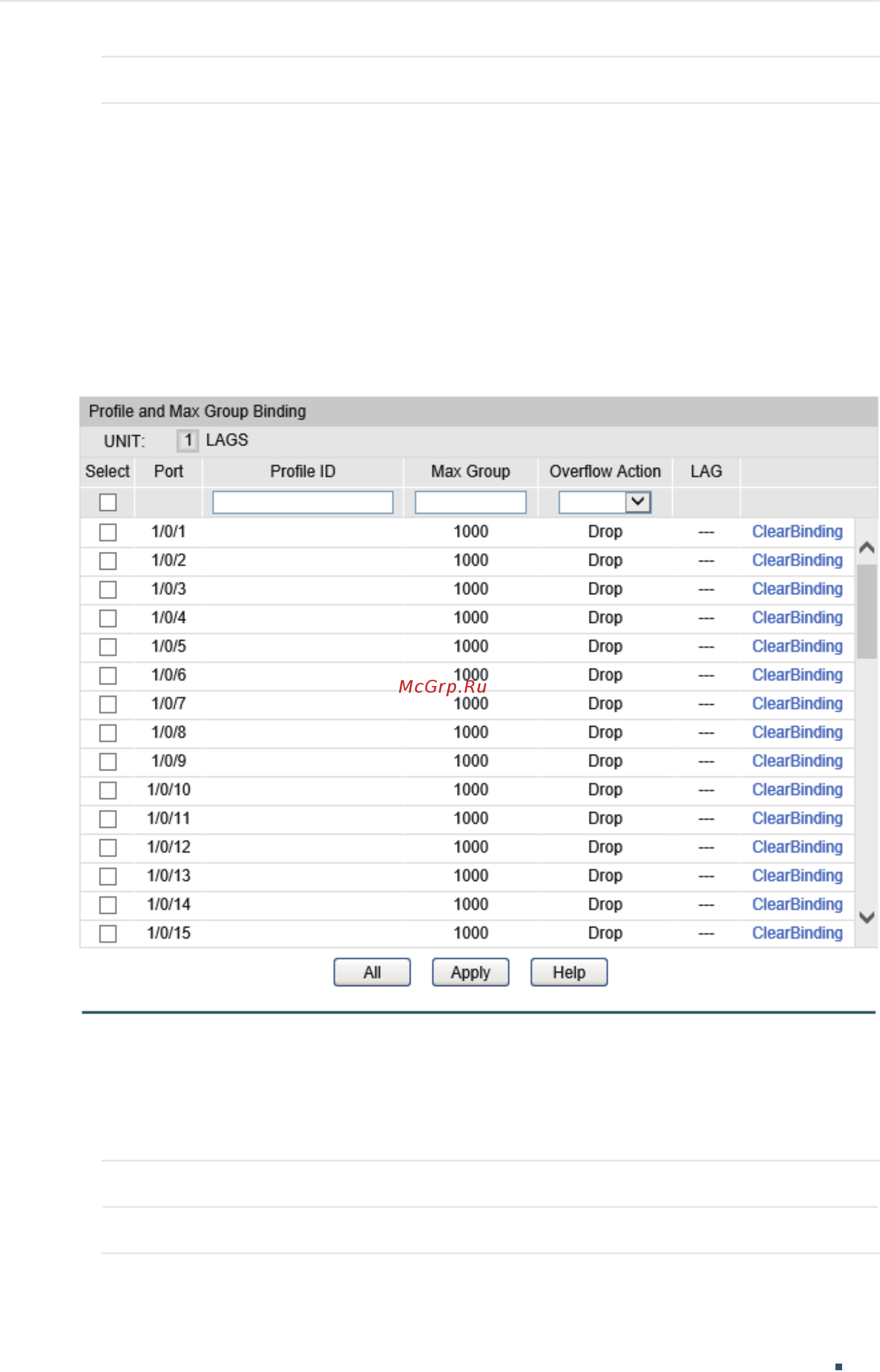

Figure 2-8 Profile Binding

Binding Profile and Member Ports

Follow these steps to bind the profile to the port.

1) Select the port to be bound, and enter the Profile ID in the Profile ID column.

Select Select the port to be bound.

Port Displays the port number.
