Managing MAC Address Table Security Configurations
Configuration Guide
165
3
Security Configurations
With security configurations of the MAC address table, you can:
Configure MAC notification traps
Limit the number of MAC addresses in VLANs
3.1 Using the GUI
3.1.1 Configuring MAC Notification Traps
Choose the menu Switching > MAC Address > MAC Notification to load the following
page.

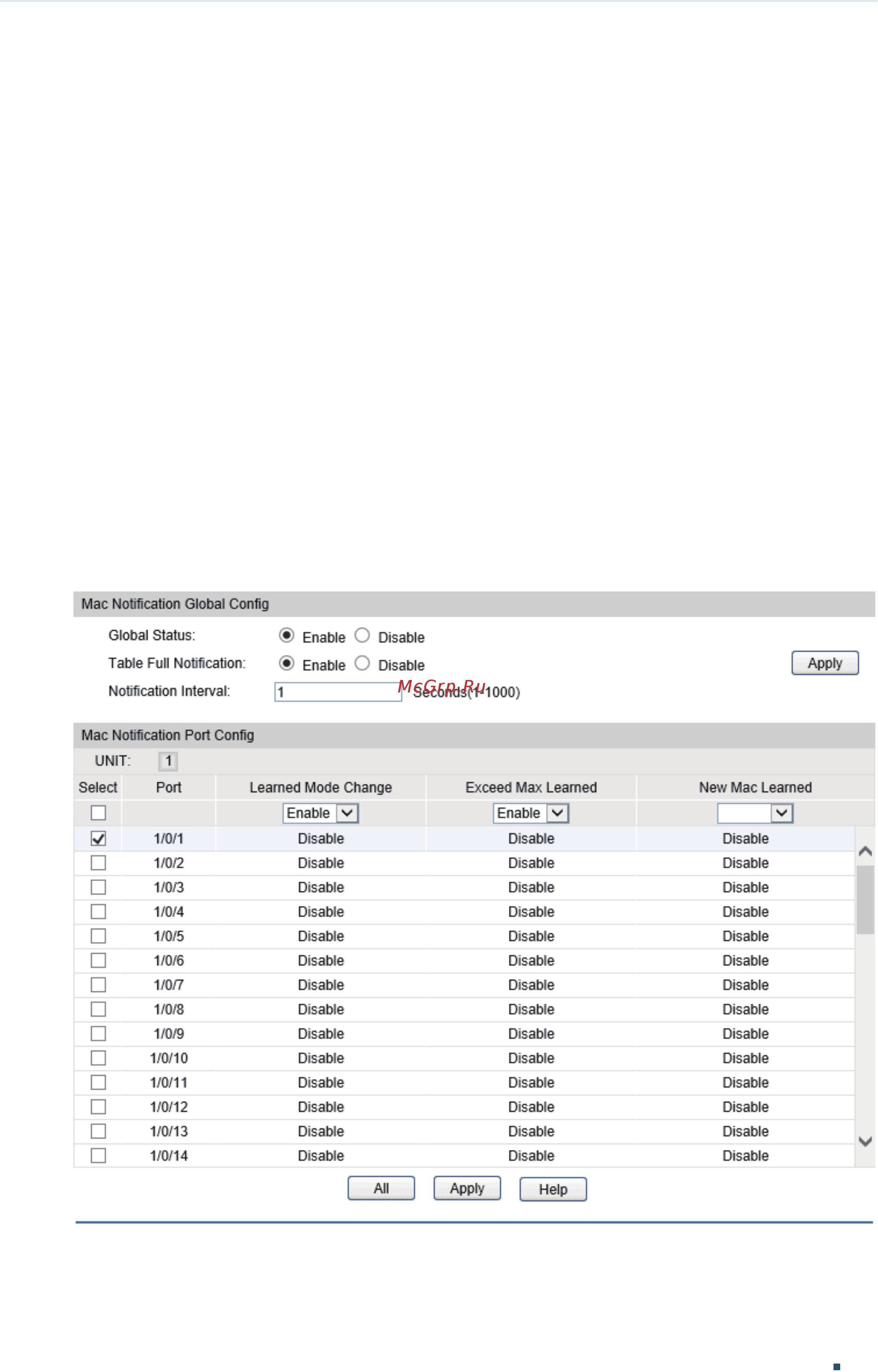

Figure 3-1 Configuring MAC Notification Traps
Follow these steps to configure MAC notification traps:
