![Tp-Link T1700G-28TQ V2 [514/772] Configuring voice vlan globally](/views2/1472751/page514/bg202.png)
Configuring Voice VLAN Voice VLAN Configuration
Configuration Guide
489
2.1.2 Configuring Voice VLAN Globally
Choose the menu QoS > Voice VLAN > Global Config to load the following page.

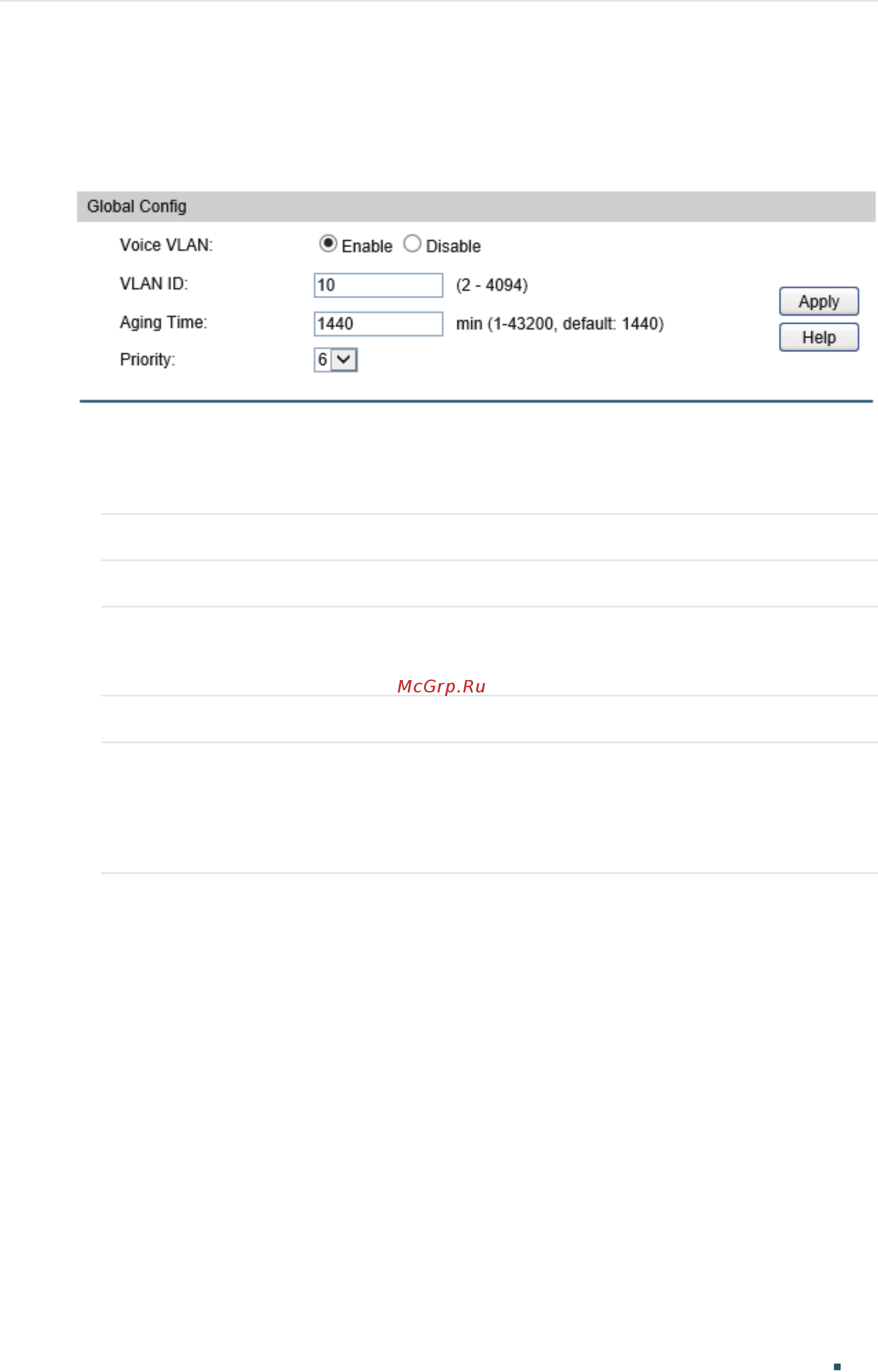

Figure 2-2 Configuring Voice VLAN Globally
Follow these steps to configure the voice VLAN globally:
1) Enable the voice VLAN feature, and enter a VLAN ID.
VLAN ID Specify an existing VLAN as the voice VLAN.
2) Set the aging time for the voice VLAN.
Aging Time Specify the length of time that a port remains in the voice VLAN after the port
receives a voice packet. Aging time works only for ports in automatic voice VLAN
mode. The range is 1 to 43200 minutes; the default is 1440 minutes.
3) Specify a priority for the voice VLAN.
Priority Specify the priority that will be assigned to voice packets. A bigger value means a
higher priority. The range is 0 to 7; the default is 6.
This is an IEEE 802.1p priority, and you can further configure its schedule mode if
needed. For details about schedule mode, please refer to
Configuring QoS
.
4) Click Apply.
