Configuring 802.1Q VLAN 802.1Q VLAN Configuration
Configuration Guide
177
2
802.1Q VLAN Configuration
To complete 802.1Q VLAN configuration, follow these steps:
1) Configure PVID (Port VLAN ID) of the port;
2) Configure the VLAN, including creating a VLAN and adding the configured port to the
VLAN.
2.1 Using the GUI
2.1.1 Configuring the PVID of the Port
Choose the menu VLAN > 802.1Q VLAN > Port Config to load the following page.

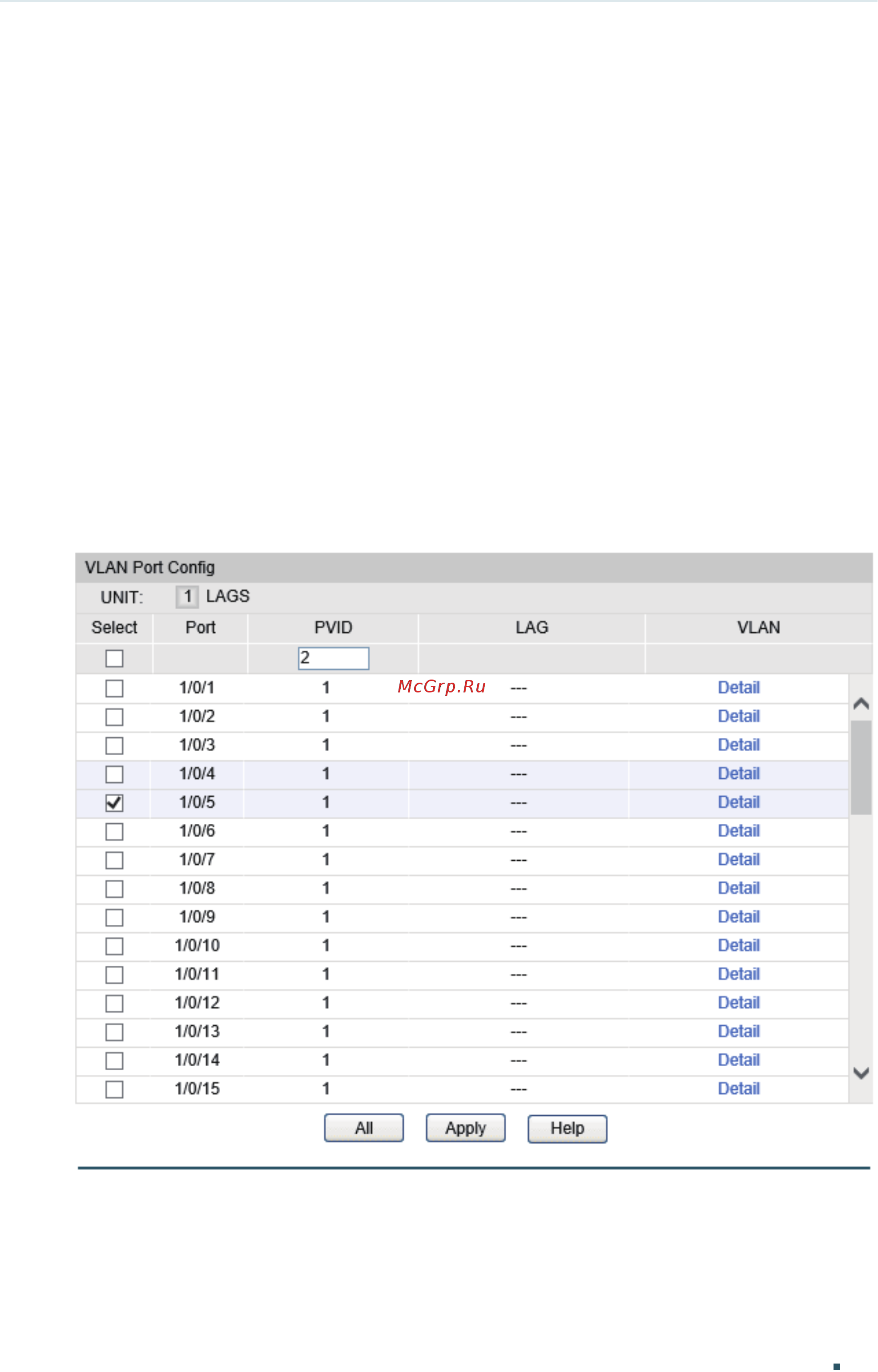

Figure 2-1 Configuring the Port
Select a port and configure its PVID. Click Apply.
