Configuration Guide 142

Configuring LAG Configuration Example

3.3 Using the GUI

The configurations of Switch A and Switch B are similar. The following introductions take

Switch A as an example.

1) Choose the menu Switching > LAG > LAG Table to load the following page. Select the

hash algorithm as ‘SRC MAC+DST MAC’.

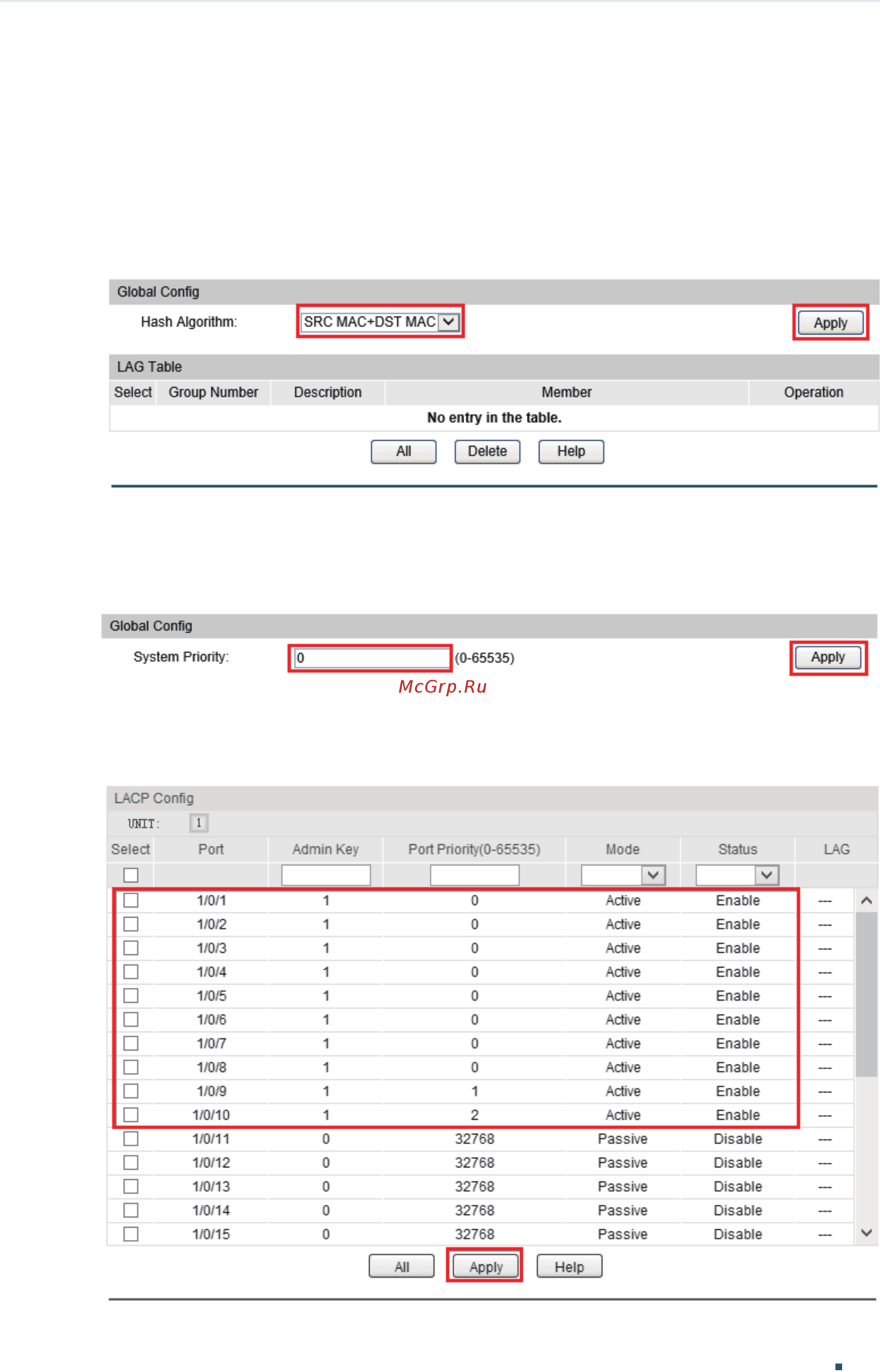

Figure 3-2 Global Configuration

2) Choose the menu Switching > LAG > LACP Config to load the following page. In the

Global Config section, specify the system priority of Switch A as 0 and Click Apply.

Remember to ensure that the system priority value of Switch B is bigger than 0.

Figure 3-3 System Priority Configuration

3) In the LACP Config section, select ports 1/0/1-10, and respectively set the admin key,

port priority, mode and status for each port as follows. Click Apply.

Figure 3-4 LACP Configuration
