Configuration Guide 522
Configuring ACL ACL Configuration
Destination Port Select a destination port to which the packets will be redirected.
QoS Remark Configure QoS action for the matched packets.
DSCP Specify a DSCP value for the matched packets.
Local Priority Specify a priority for the matched packets.
3) Click Apply to make the settings effective.
2.1.6 Configuring the ACL Binding and Policy Binding
You can select ACL binding or Policy binding according to your needs.
An ACL or Policy takes effect only after it is bound to a port or VLAN.
Configuring the ACL Binding
You can bind the ACL to a port or a VLAN. The received packets will then be matched and
processed according to the ACL rules.
Binding the ACL to a Port
Choose the menu ACL > ACL Binding > Port Binding to load the following page.

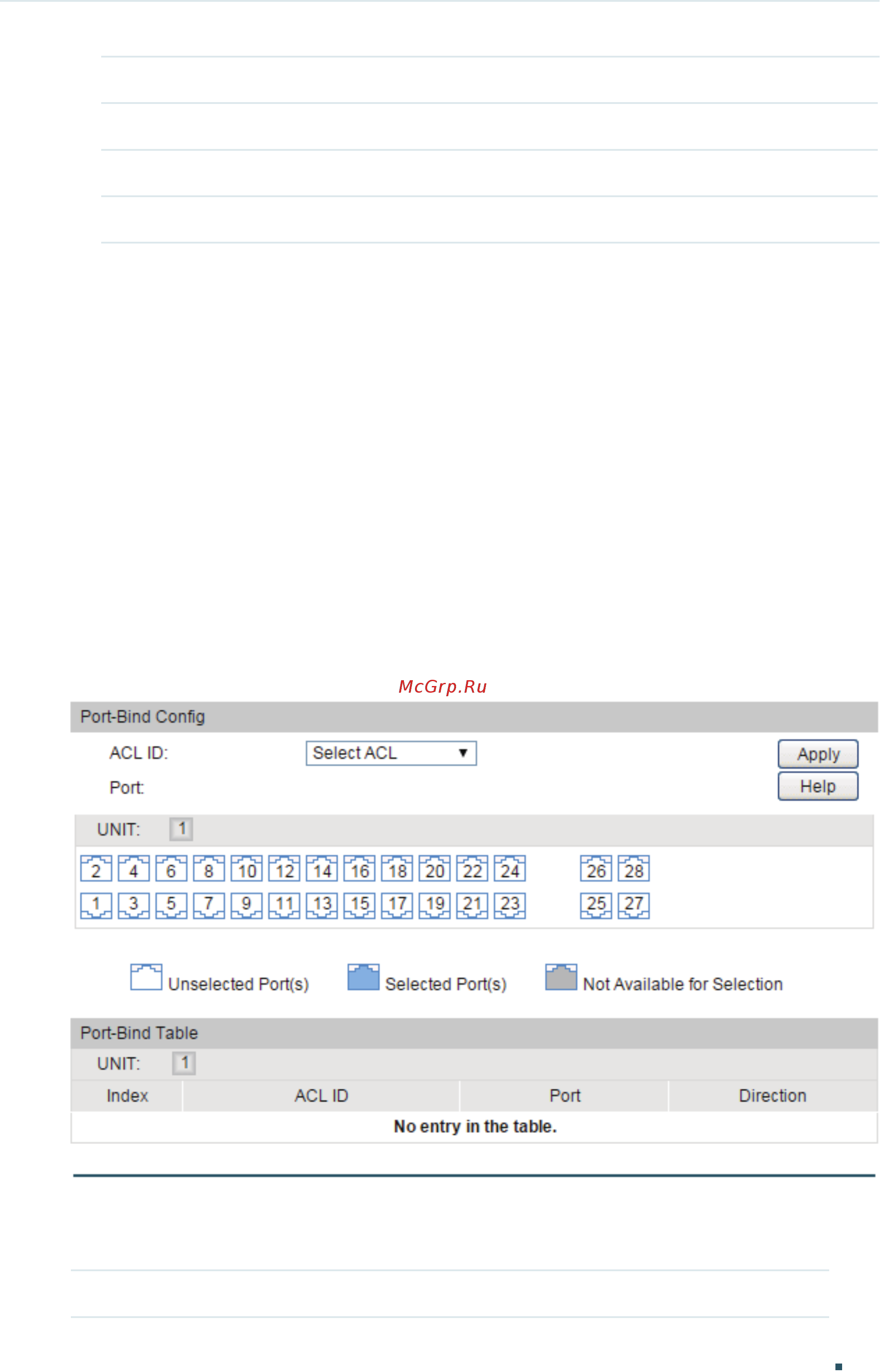

Figure 2-11 Binding the ACL to a Port
Follow these steps to bind the ACL to a Port:
Select the ACL and the port, and click Apply.
ACL ID Select an ACL from the drop-down list.
