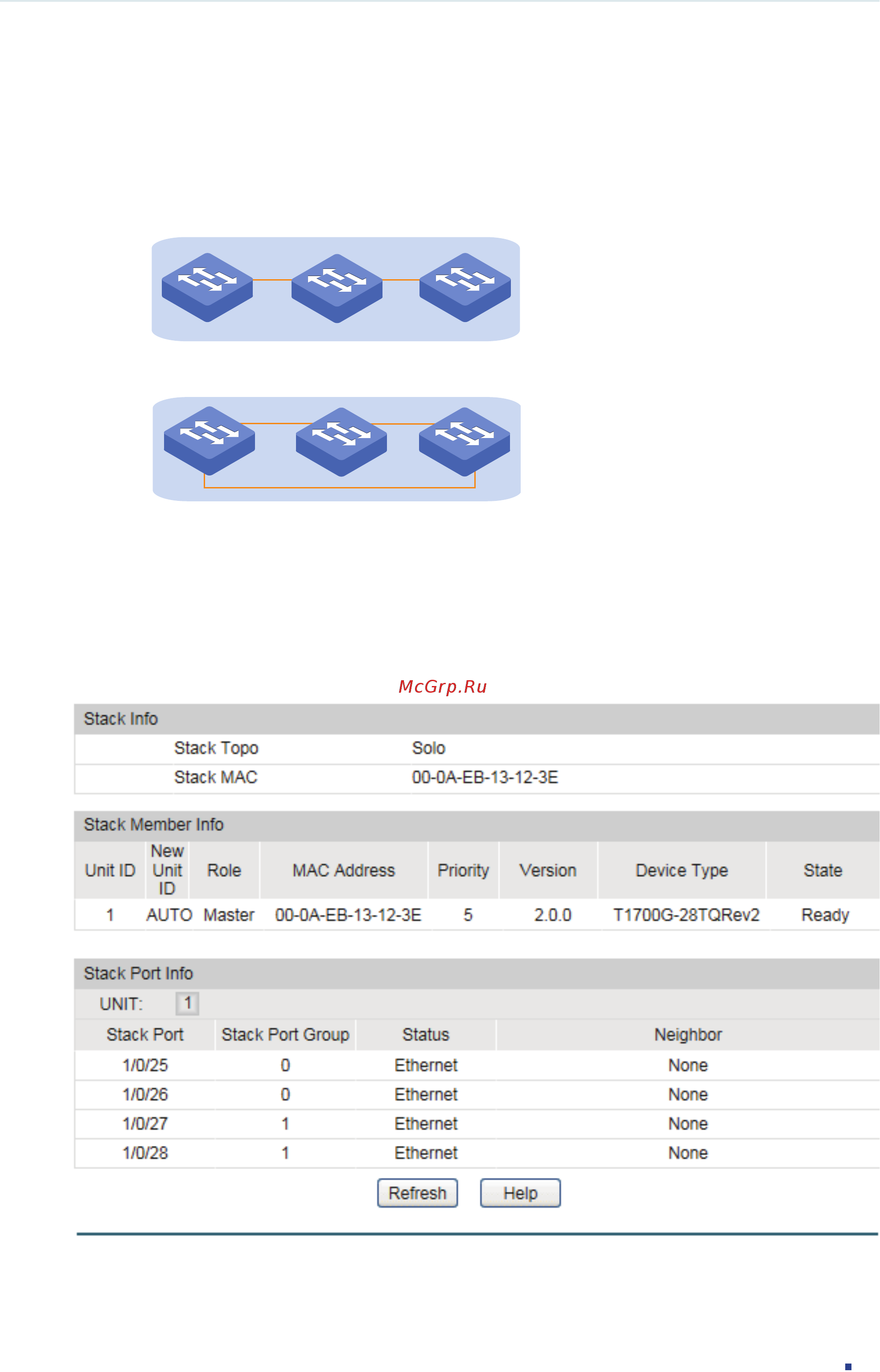

![Tp-Link T1700G-28TQ V2 [107/772] Viewing the stack information](/views2/1472751/page107/bg6b.png)
Configuration Guide 82
Configuring Stack Stack Configuration
Connecting all the Stack Members through the Stack Ports
1) Power off all the switches.
2) Connect them in a chain or ring topology. The typical chain/ring connection is shown
below.
Figure 2-2 Typical chain connection
Figure 2-3 Typical ring connection
3) Power on all the switches in turn.
2.1.2 Viewing the Stack Information
Choose the menu Stack > Stack Management > Info to load the following page.
Figure 2-4 Stack Information
