Configuring ACL ACL Configuration
Configuration Guide
523
Binding the ACL to a VLAN
Choose the menu ACL > ACL Binding > VLAN Binding to load the following page.
Figure 2-12 Binding the ACL to a VLAN
Follow these steps to bind the ACL to a VLAN:
Select the ACL and enter the VLAN ID, and click Apply.
ACL ID Select an ACL from the drop-down list.
VLAN ID Enter the VLAN ID.
Configuring the Policy Binding
You can bind the Policy to a port or a VLAN. The received packets will then be matched and
processed according to this Policy.
Binding the Policy to a Port

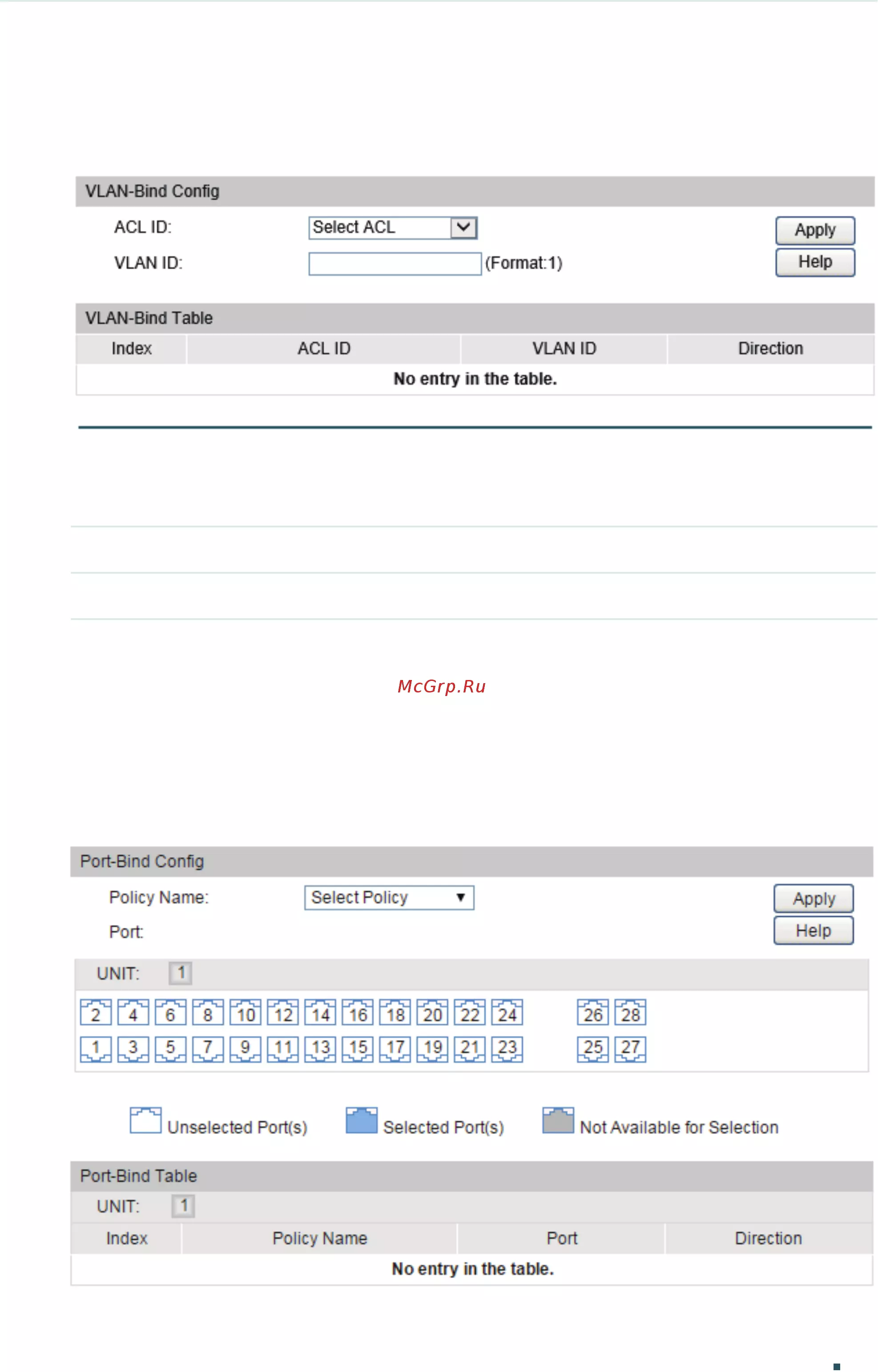

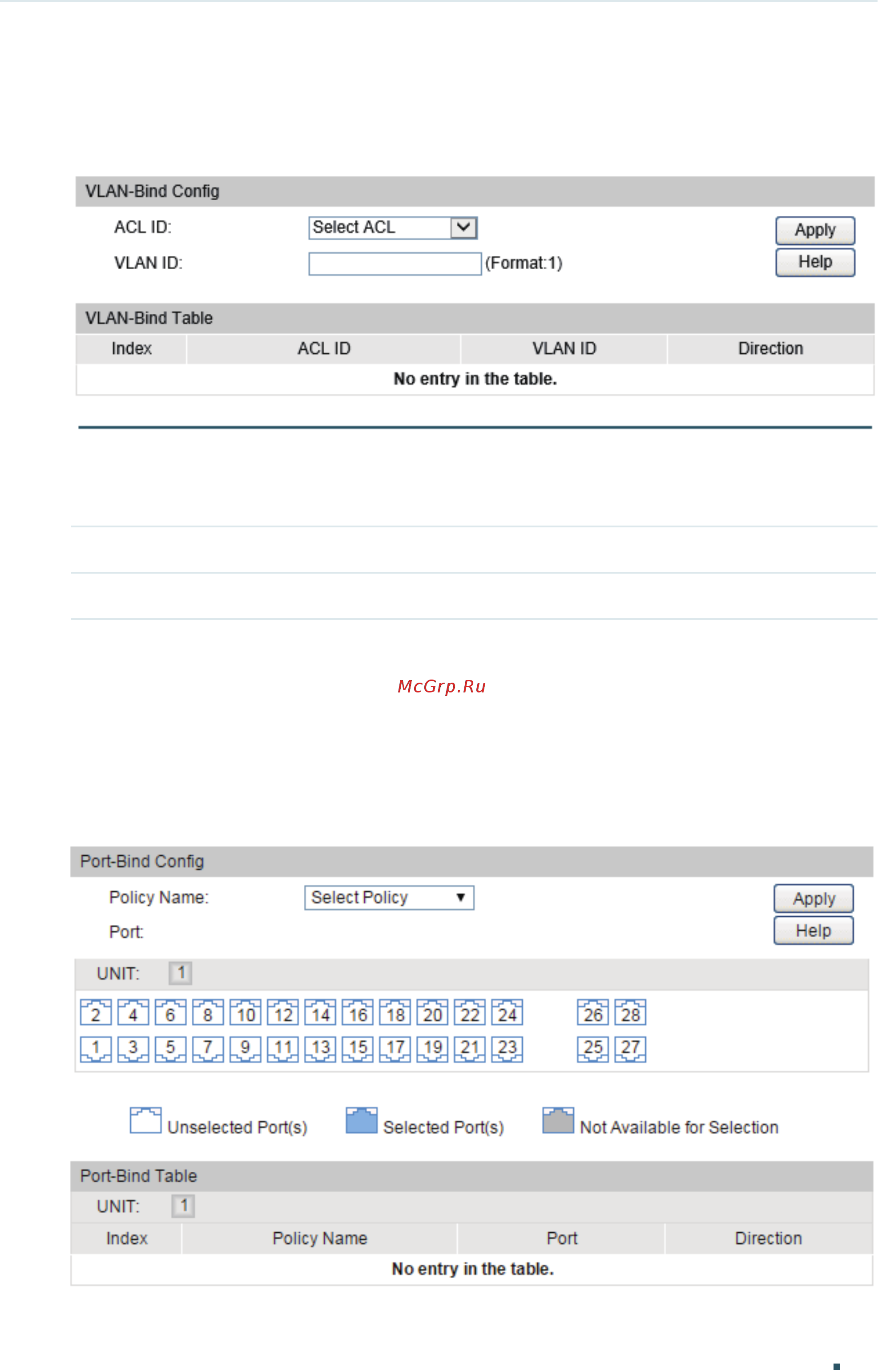

Figure 2-13 Binding the Policy to a Port
