Configuring Layer 2 Multicast IGMP Snooping Configurations
Configuration Guide
297
Fast Leave With Fast Leave enabled on a port, the switch will remove this port from the
forwarding list of the corresponding multicast group once the port receives a
leave message. You should only use this function when there is a single receiver
present on the port.
2) Click Apply.
2.1.3 Configuring IGMP Snooping in the VLAN

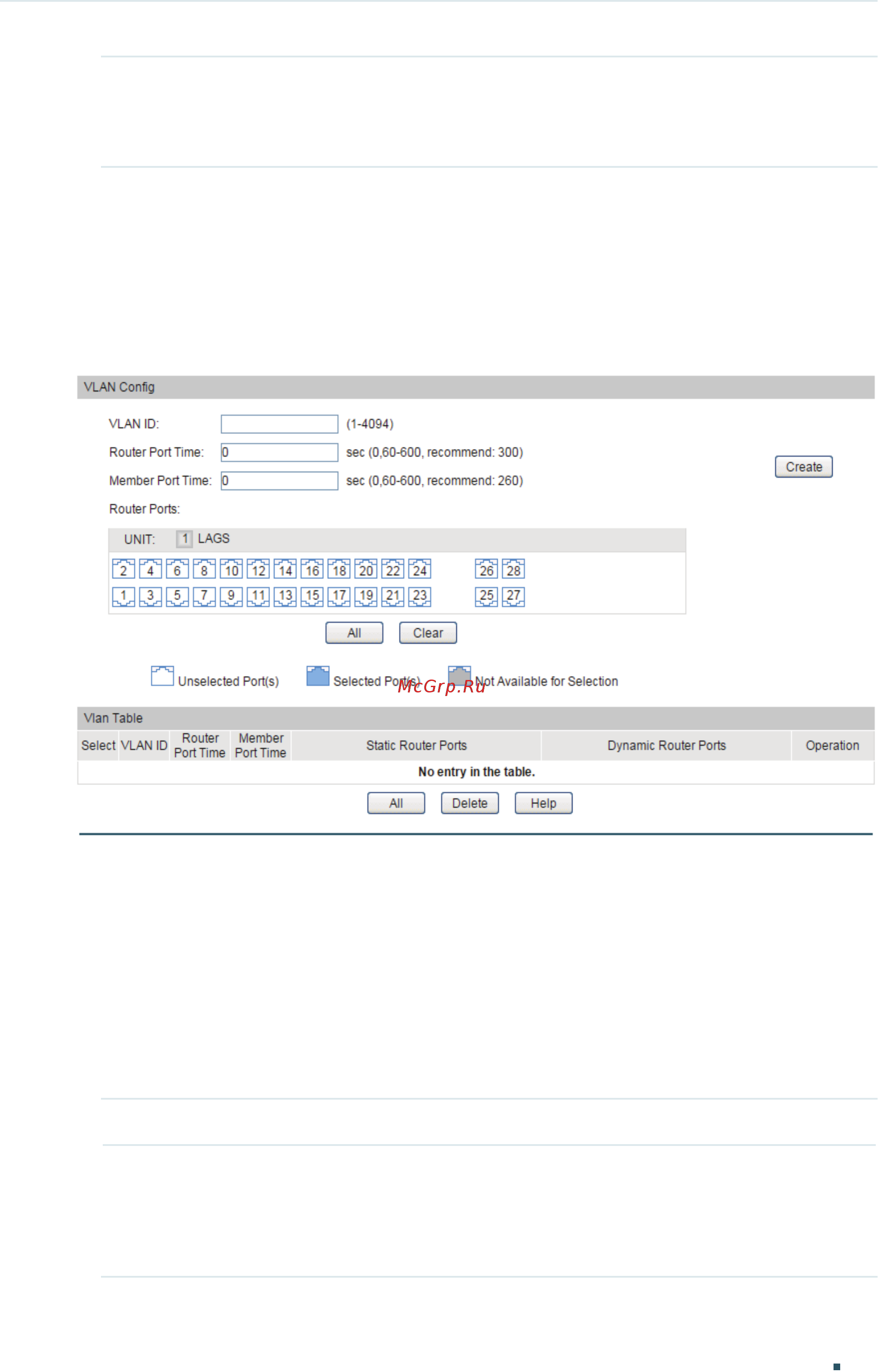

Choose the menu Multicast > IGMP Snooping > VLAN Config to load the following page.
Figure 2-3 IGMP Snooping in VLAN
Configuring IGMP Snooping Globally in the VLAN
In the VLAN Config section, follow these steps to configure relevant parameters for the
designate VLAN.
1) Set up the VLAN that the router ports and the member ports are in. For details, please
refer to
Configuring 802.1Q VLAN
.
2) Enable IGMP Snooping in the designate VLAN, and configure the aging time of the
router ports and the member ports.
VLAN ID Specify the VLAN to enable IGMP Snooping.
Router Port
Time
Specify the aging time of the router ports in the VLAN. If the router port does not
receive any IGMP general query message within the router port time, the switch
will no longer consider this port as a router port and delete it from the router port
list. The valid values are from 60 to 600 seconds. When the router port time is 0,
the VLAN uses the global time.
