Configuration Guide 301
Configuring Layer 2 Multicast IGMP Snooping Configurations
Query Interval Enter the interval between general query messages sent by the querier. The valid
values are from 10 to 300 seconds.
Max Response
Time
Enter the host’s maximum response time to general query messages in a range of
1 to 25 seconds.
General Query
Source IP
Specify the source IP address of the general query messages sent by the querier.
It cannot be a multicast address or a broadcast address.
2) Click Add.
3) You can edit the settings in the IGMP Snooping Querier Table.
Viewing Settings of IGMP Querier
The IGMP Snooping Querier Table displays all the related settings of the IGMP querier.
2.1.6 Configuring IGMP Profile
With IGMP Profile, the switch can define a blacklist or whitelist of multicast addresses so as
to filter multicast sources, Choose the menu Multicast > IGMP Snooping > Profile Config
to load the following page.

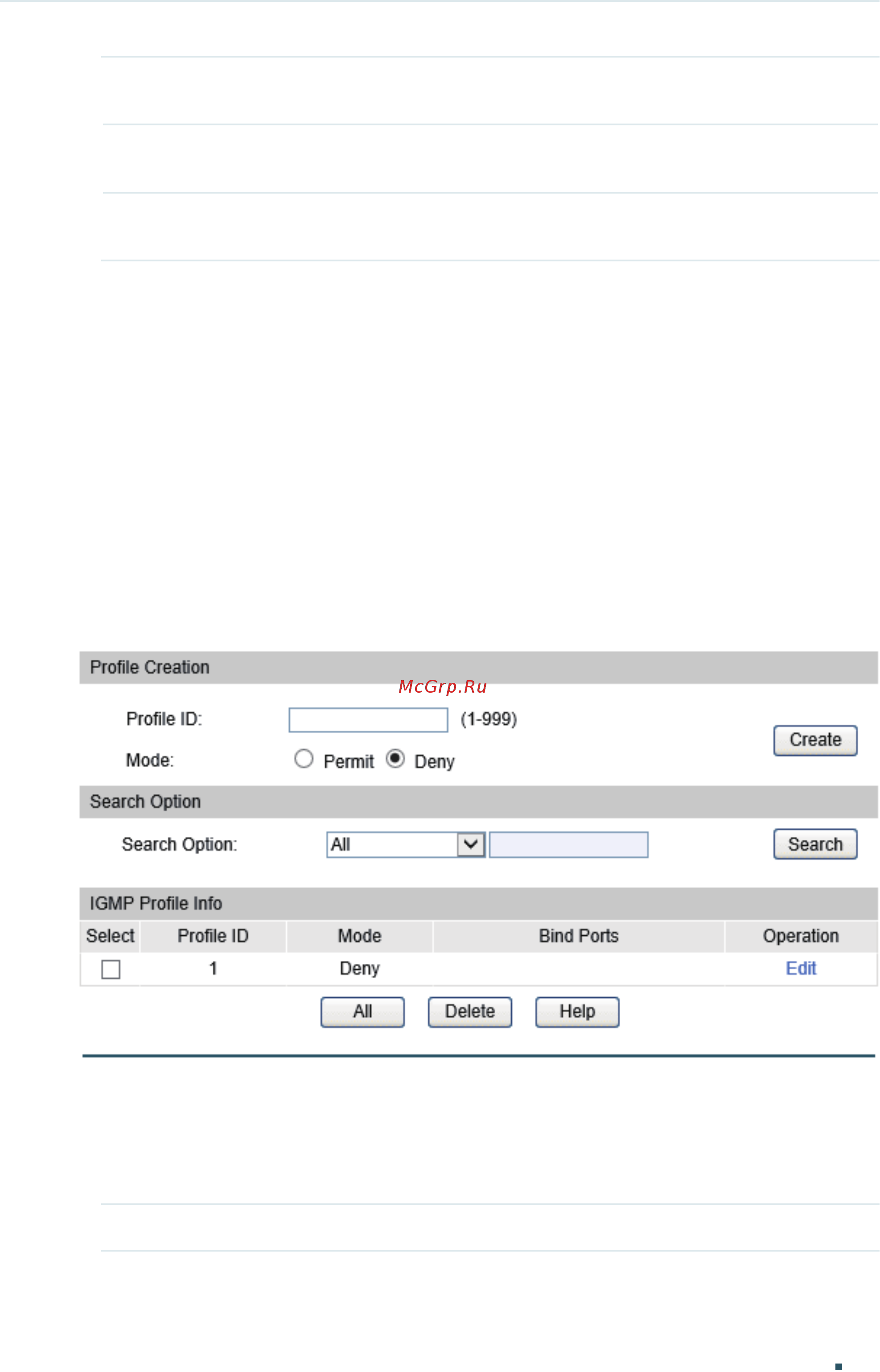

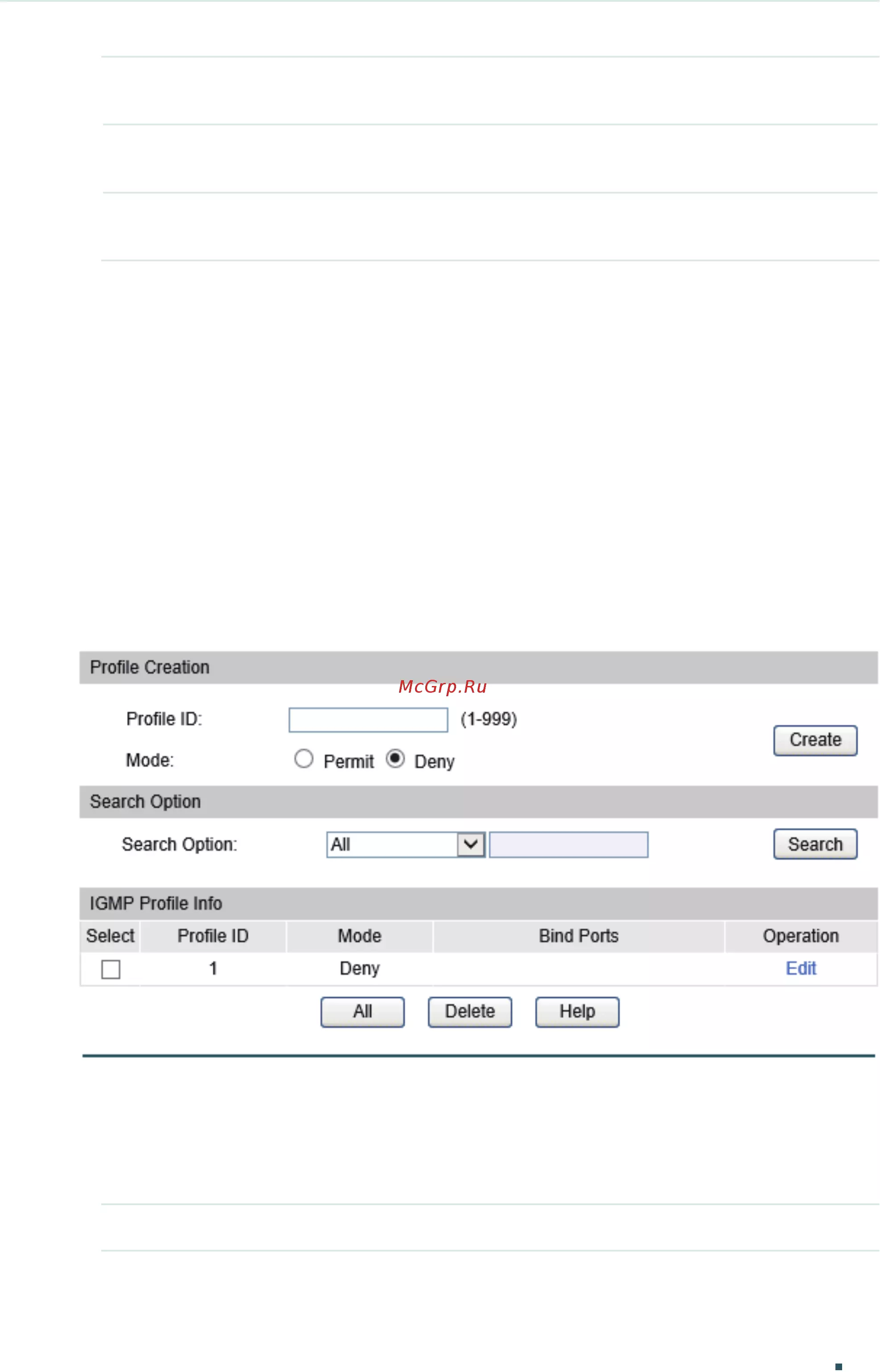

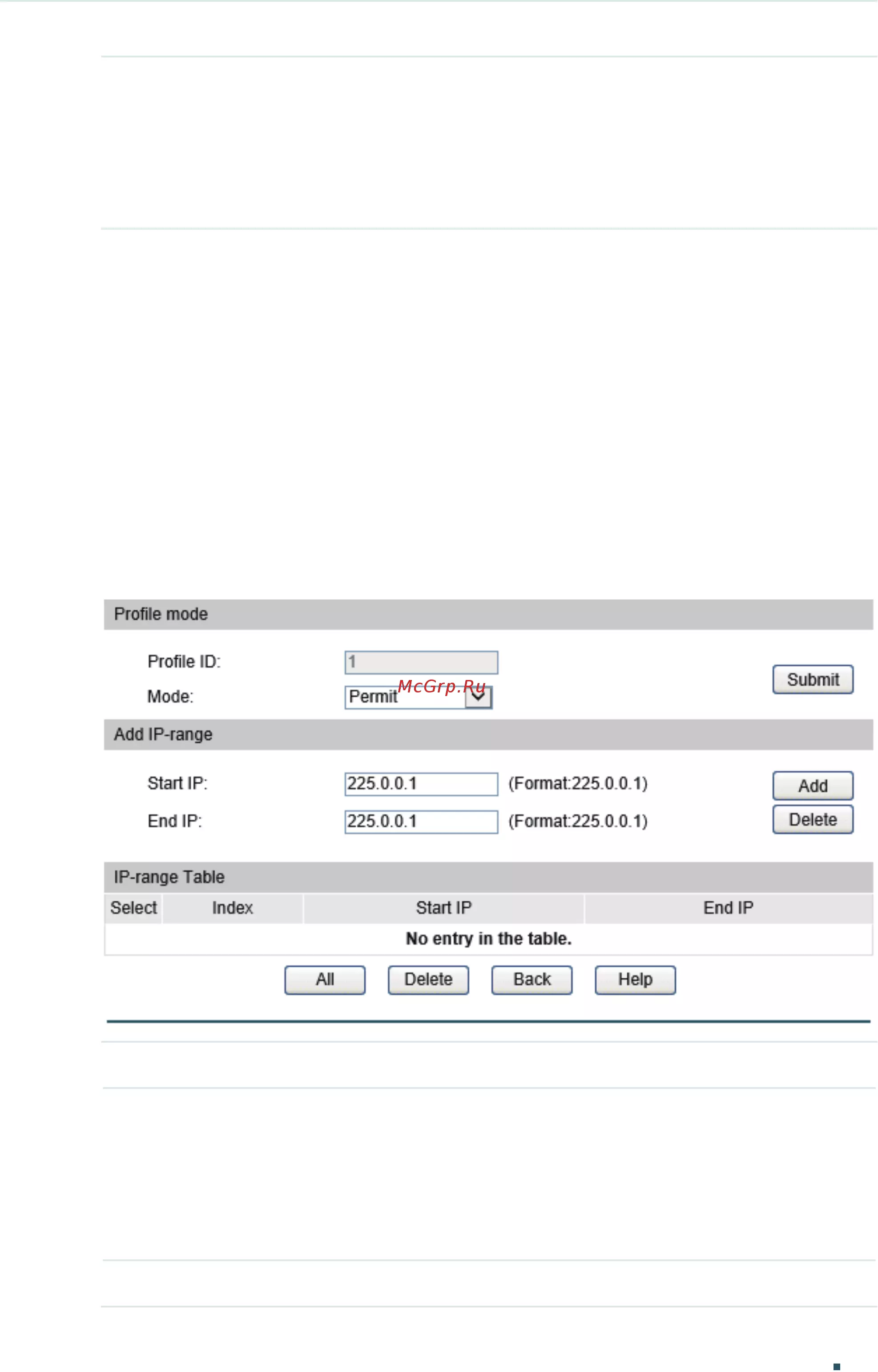

Figure 2-6 Profile Create
Creating Profile
Follow these steps to create a profile and configure its filtering mode.
1) Create a profile and configure its filtering mode.
Profile ID Enter a profile ID between 1 and 999.
