Configuring Layer 2 Multicast Configuring MLD Snooping
Configuration Guide
339
1) Enable or disable Auto Refresh.
Auto Refresh If Auto Refresh is enabled, statistics of MLD packets on this page will refresh
automatically.
Refresh Period After Auto Refresh is enabled, enter the interval between each refresh. The valid
values are from 3 to 300 seconds.
2) Click Apply.
Viewing MLD Statistics
The MLD Statistics table displays all kinds of MLD statistics of all the ports.
3.1.9 Configuring Static Member Port
This function allows you to specify a port as a static member port in the multicast group.
Choose the menu Multicast > Multicast Table > Static IPv4 Multicast Table to load the
following page.

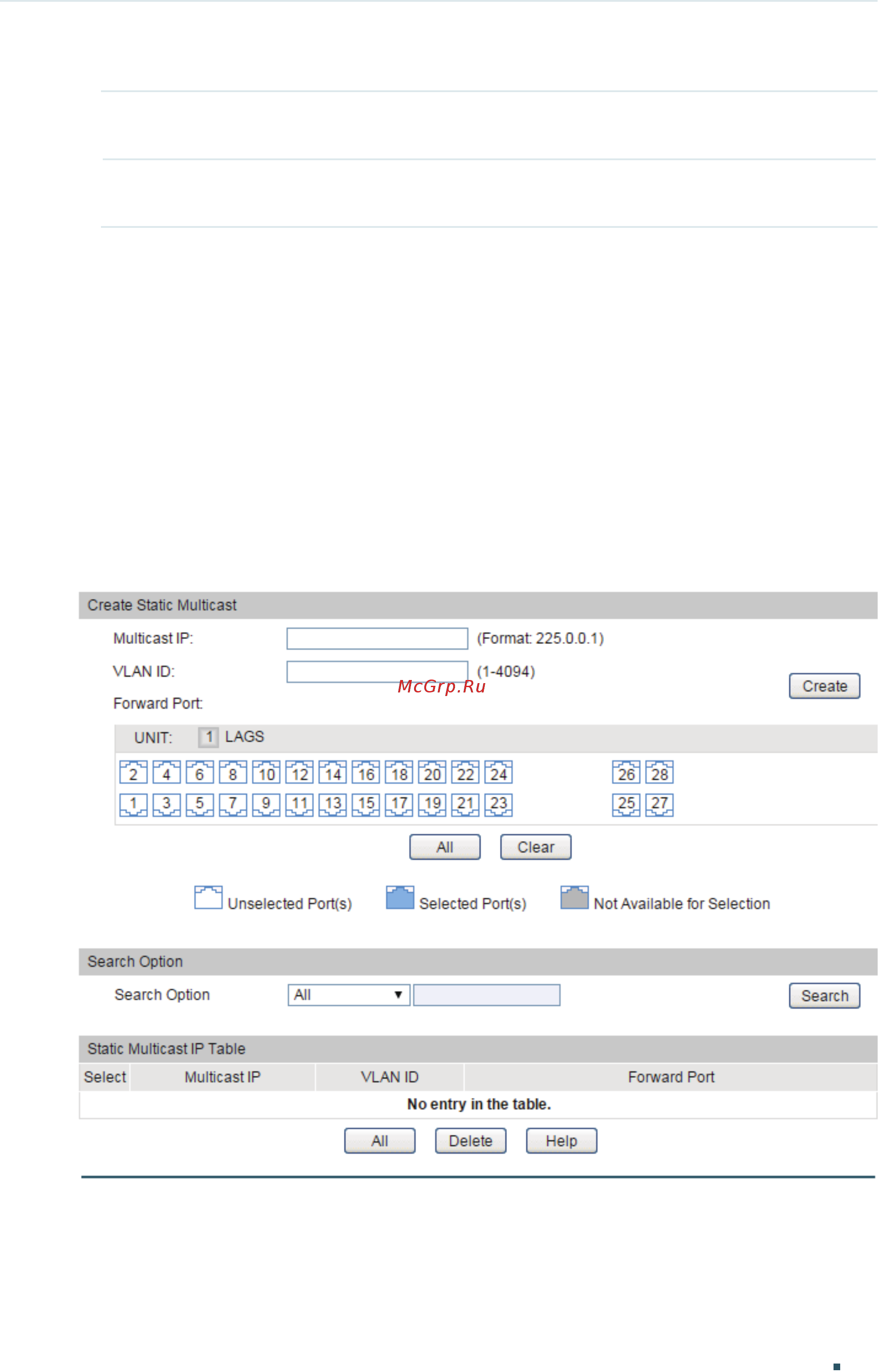

Figure 3-10 Static Member Port
Configuring Static Member Port
Follow these steps to configure static member port.
1) Enter the Multicast IP and VLAN ID. Specify the Static Member Port.
