Configuration Guide 524

Configuring ACL ACL Configuration

Follow these steps to bind the Policy to a Port:

Select the Policy and the port to be bound, and click Apply.

Policy Name Select a Policy from the drop-down list.



Binding the Policy to a VLAN

Choose the menu ACL > Policy Binding > VLAN Binding to load the following page.

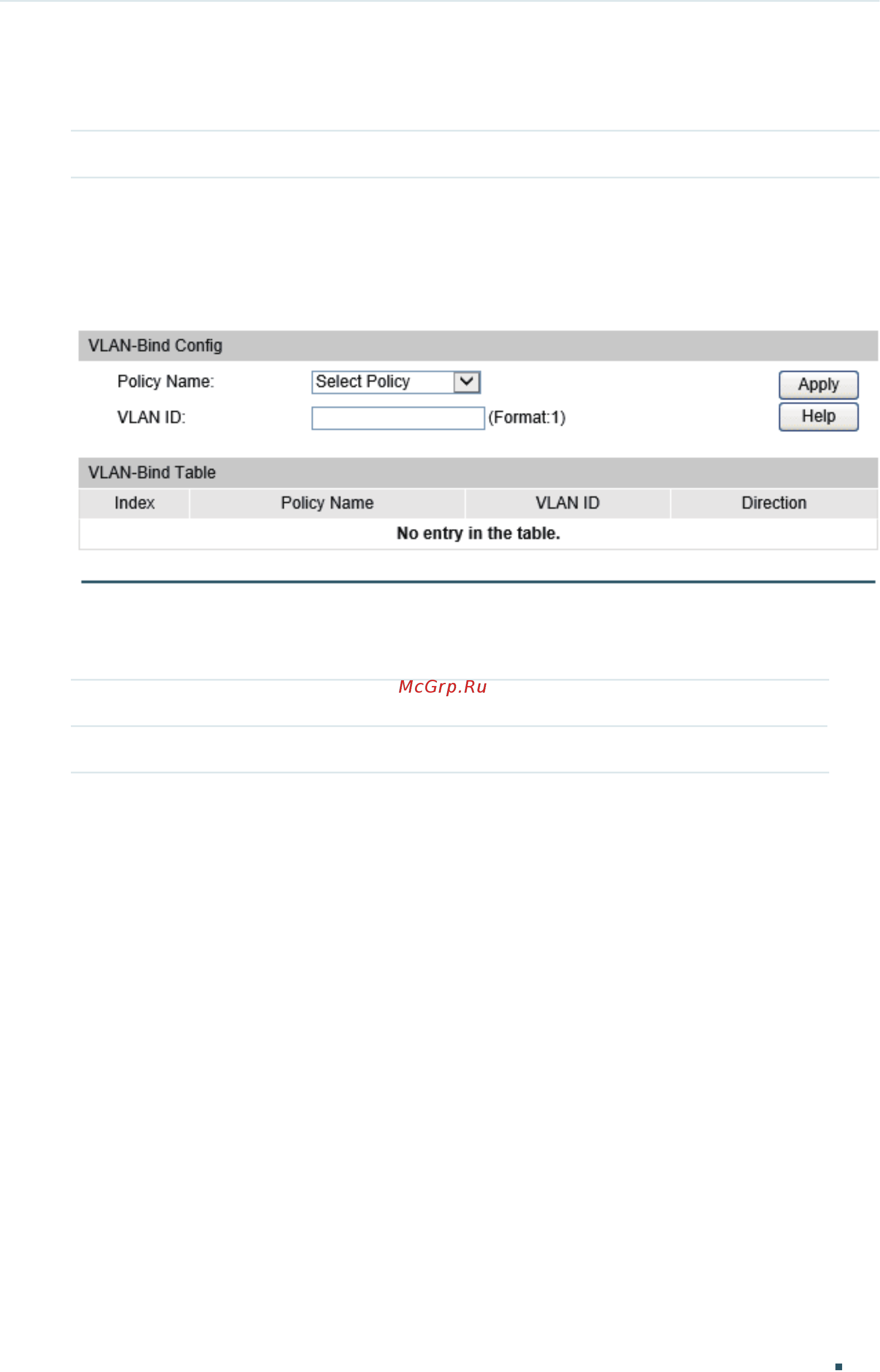

Figure 2-14 Binding the Policy to a VLAN

Follow these steps to bind the Policy to a VLAN:

Select the ACL and enter the VLAN ID, and click Apply.

ACL ID Select an ACL from the drop-down list.

VLAN ID Enter the VLAN ID.

Verifying the Binding Configuration



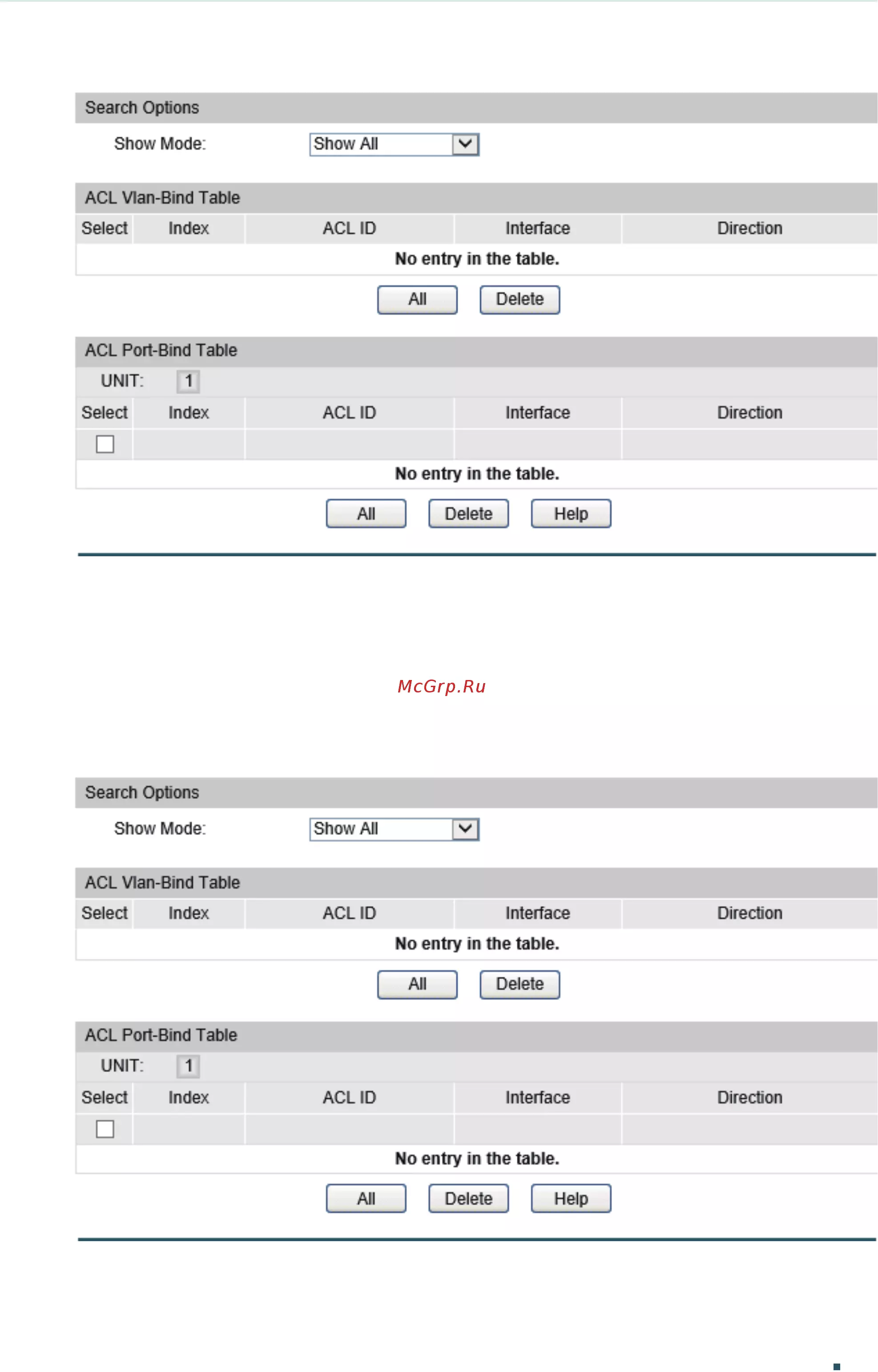

Verifying the ACL Binding

You can view both port binding and VLAN binding entries in the table. You can also delete

existing entries if needed.

Choose the menu ACL > ACL Binding > Binding Table to load the following page.
