Managing Physical Interfaces Port Isolation Configurations
Configuration Guide
113
5
Port Isolation Configurations
5.1 Using the GUI
Choose the menu Switching > Port > Port Isolation to load the following page.

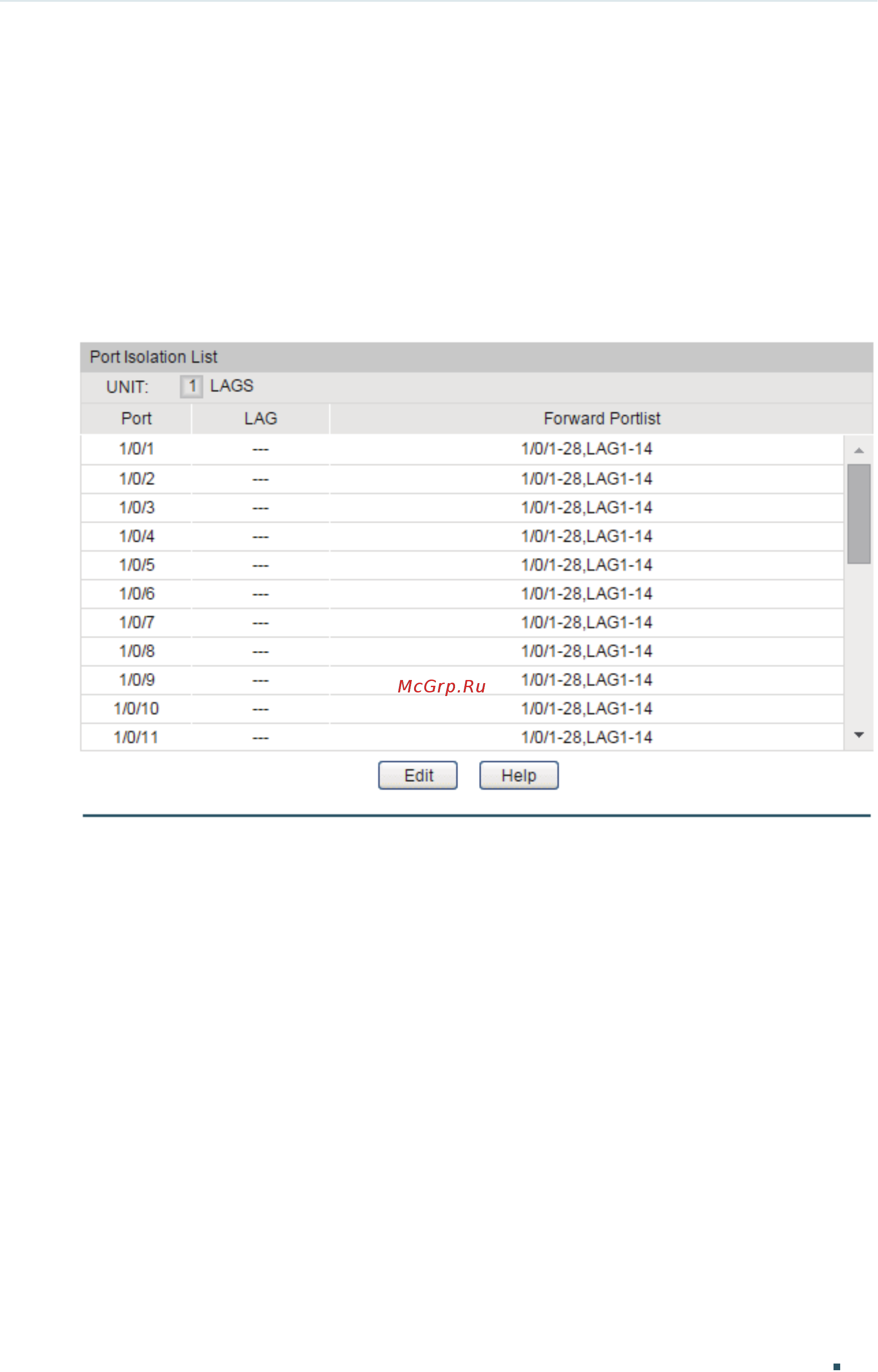

Figure 5-1 Port Isolation List
The above page displays the port isolation list. Click Edit to configure Port Isolation on the
following page.
