Managing MAC Address Table Address Configurations
Configuration Guide
157

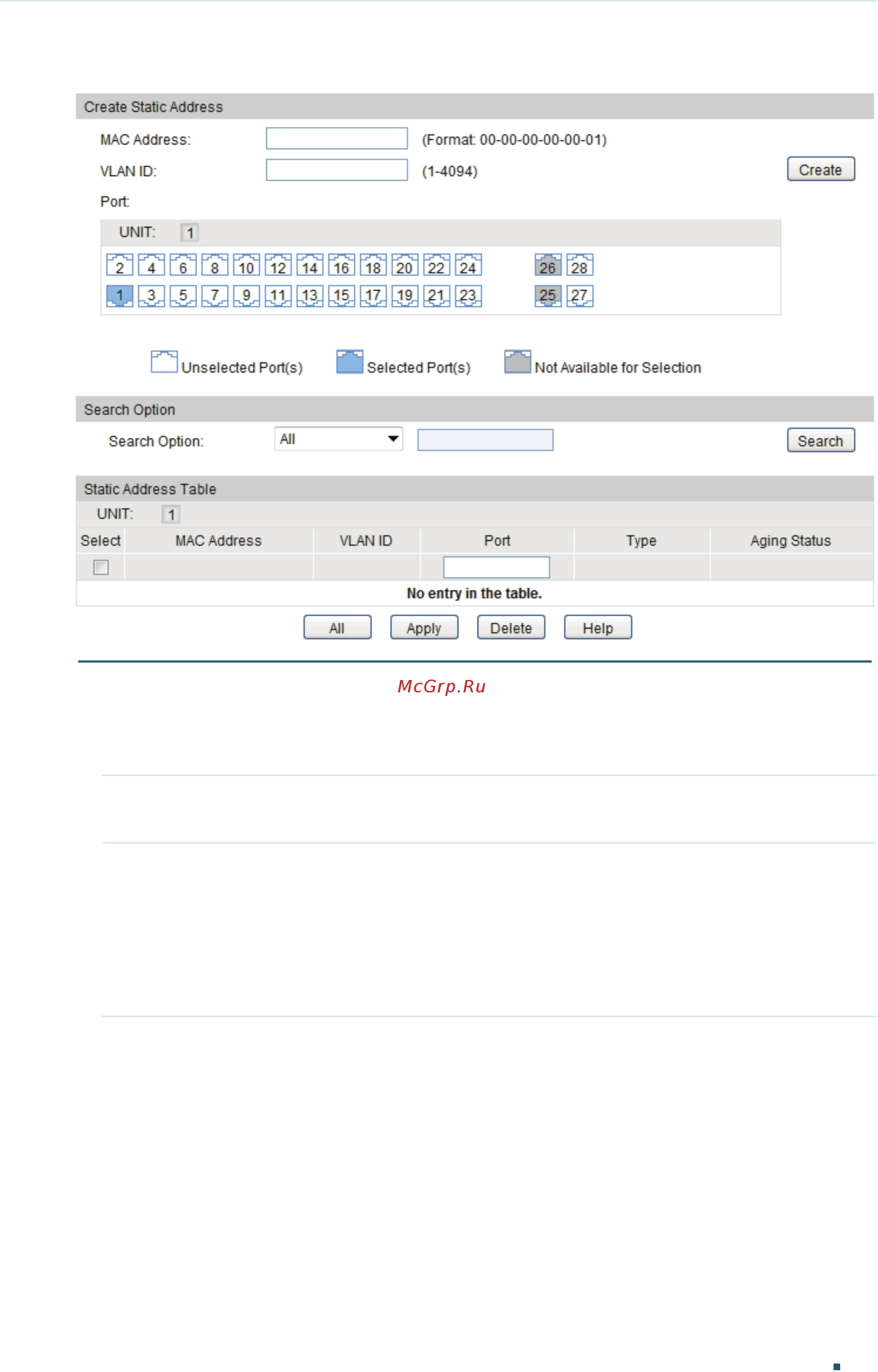

Figure 2-1 Adding MAC Addresses Manually
Follow these steps to add a static MAC address entry:
1) Enter the MAC address, VLAN ID and select a port to bind them together.
VLAN ID Specify an existing VLAN in which packets with the specific MAC address are
received.
Port Specify a port to which packets with the specific MAC address are forwarded. The
port must belong to the specified VLAN.
After you have added the static MAC address, if the corresponding port number
of the MAC address is not correct, or the connected port (or the device) has been
changed, the switch cannot forward the packets correctly. Please reset the static
address entry appropriately.
2) Click Create.

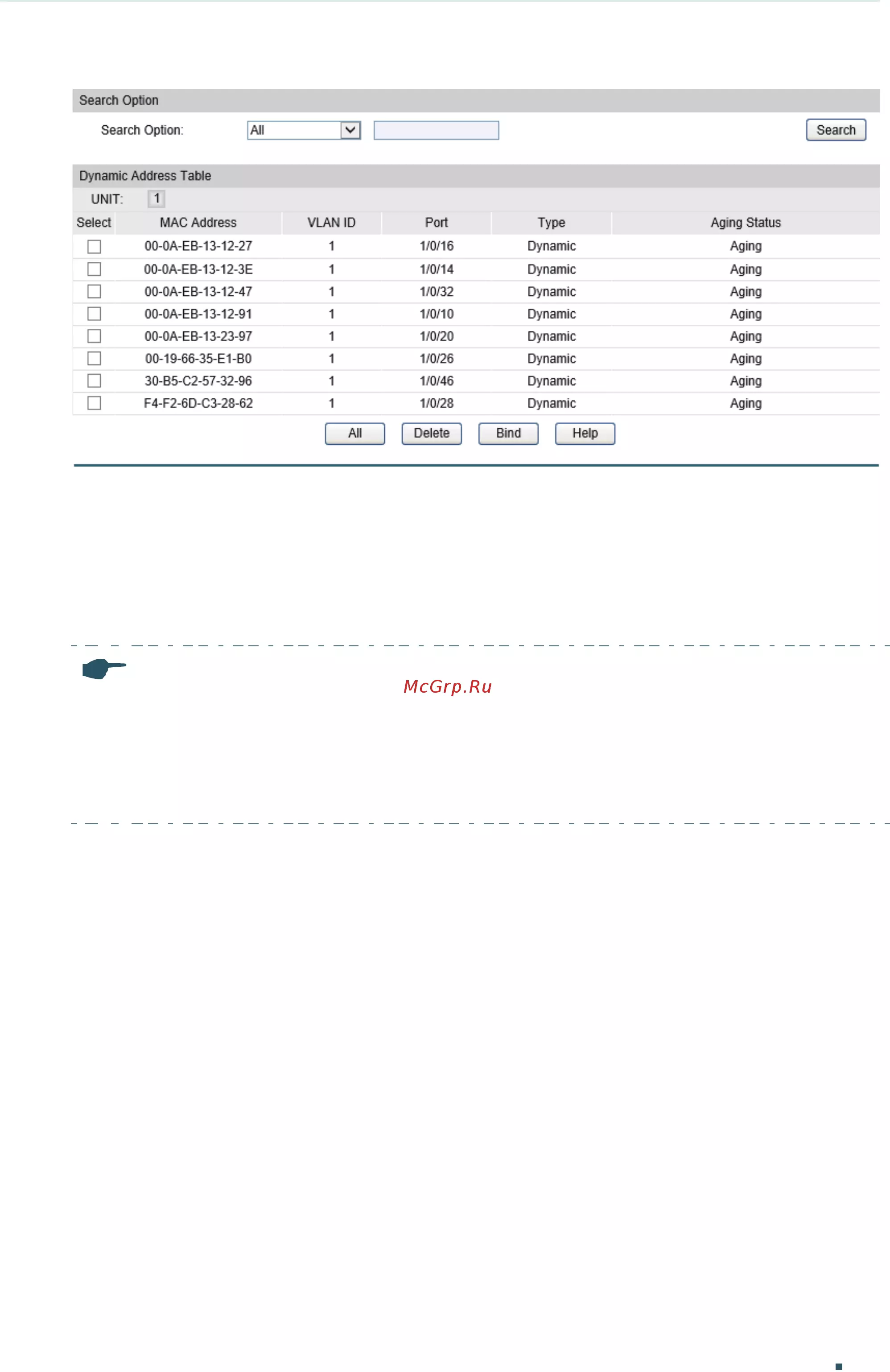

Binding Dynamic Address Entries
Choose the menu Switching > MAC Address > Dynamic Address to load the following
page.
