Configuration Guide 114
Managing Physical Interfaces Port Isolation Configurations

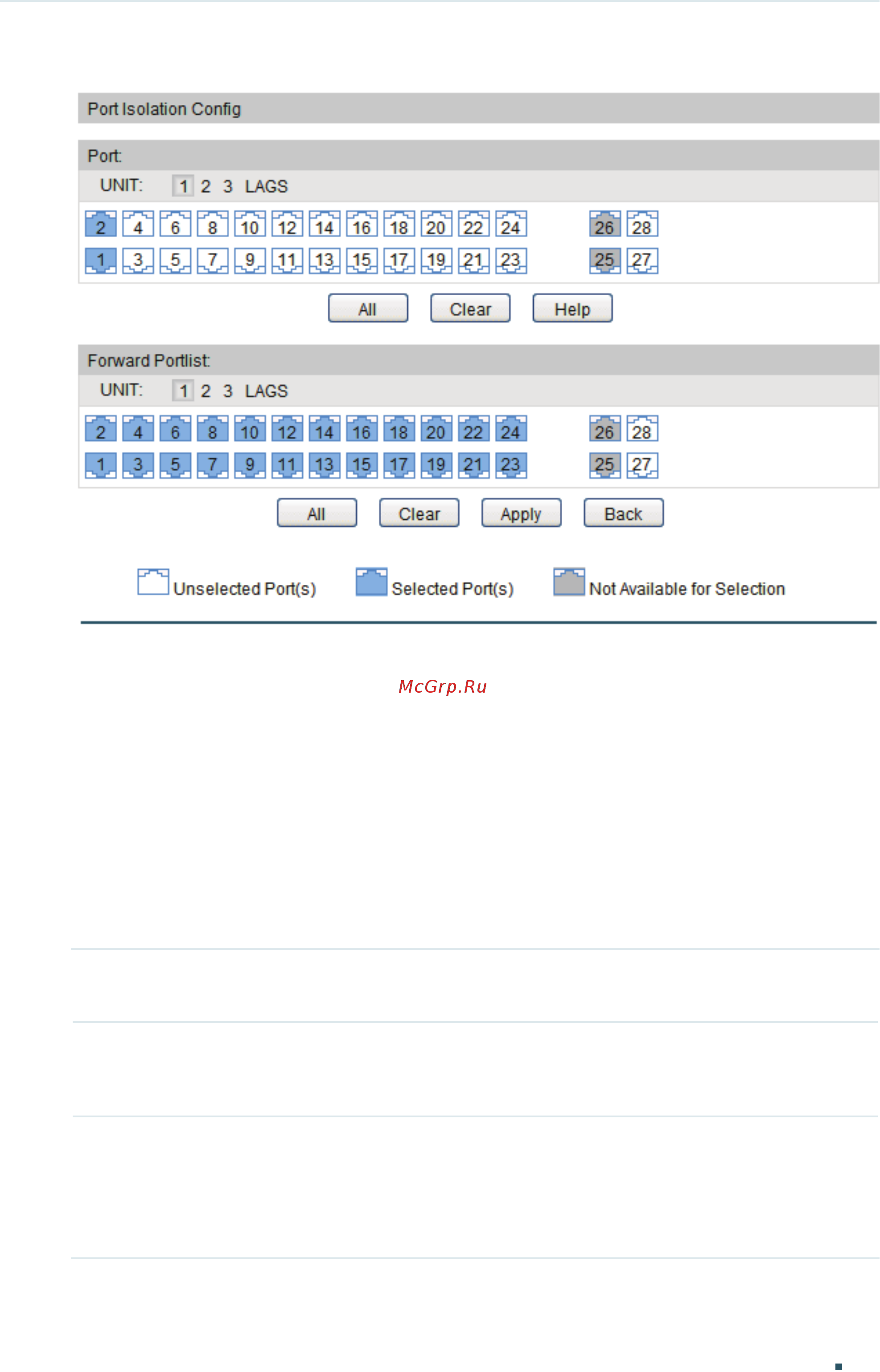

Figure 5-2 Port Isolation
Follow these steps to configure Port Isolation:
1) In the Port section, select one or multiple ports to be isolated.
2) In the Forward Portlist section, select the forward ports or LAGs which the isolated
ports can only communicate with. It is multi-optional.
3) Click Apply.
5.2 Using the CLI
Follow these steps to configure Port Isolation:
Step 1 configure
Enter global configuration mode.
Step 2 interface {fastEthernet
port
| range fastEthernet
port-list
| gigabitEthernet
port
| range
gigabitEthernet
port-list
| ten-gigabitEthernet
port
| range ten-gigabitEthernet
port-list
}
Enter interface configuration mode.
Step 3 port isolation { [gi-forward-list
gi-forward-list
] [ po-forward-list
po-forward-list
] }
Specify ports or LAGs to the forward list of the specific port which can only communicate
with the forward ports or LAGs. It is multi-optional.
gi-forward-list
: The list of Ethernet ports.
po-forward-list:
The list of LAGs.
