Configuring DHCP Relay Configuration Example
Configuration Guide
435
3) Configure the interface address of the VLANs. For details, refer to
Configuring 802.1Q
VLAN
.
4) Configure DHCP Relay on the switch. Enable DHCP Relay, and add DHCP server address
to each VLAN. When these configurations are finished, the DHCP server can assign IP
addresses to computers in the two departments, with each department on one subnet.
Demonstrated with T1700G-28TQ, this chapter provides configuration procedures in two
ways: using the GUI and using the CLI.
3.3 Using the GUI
Follow these steps to configure DHCP Relay:

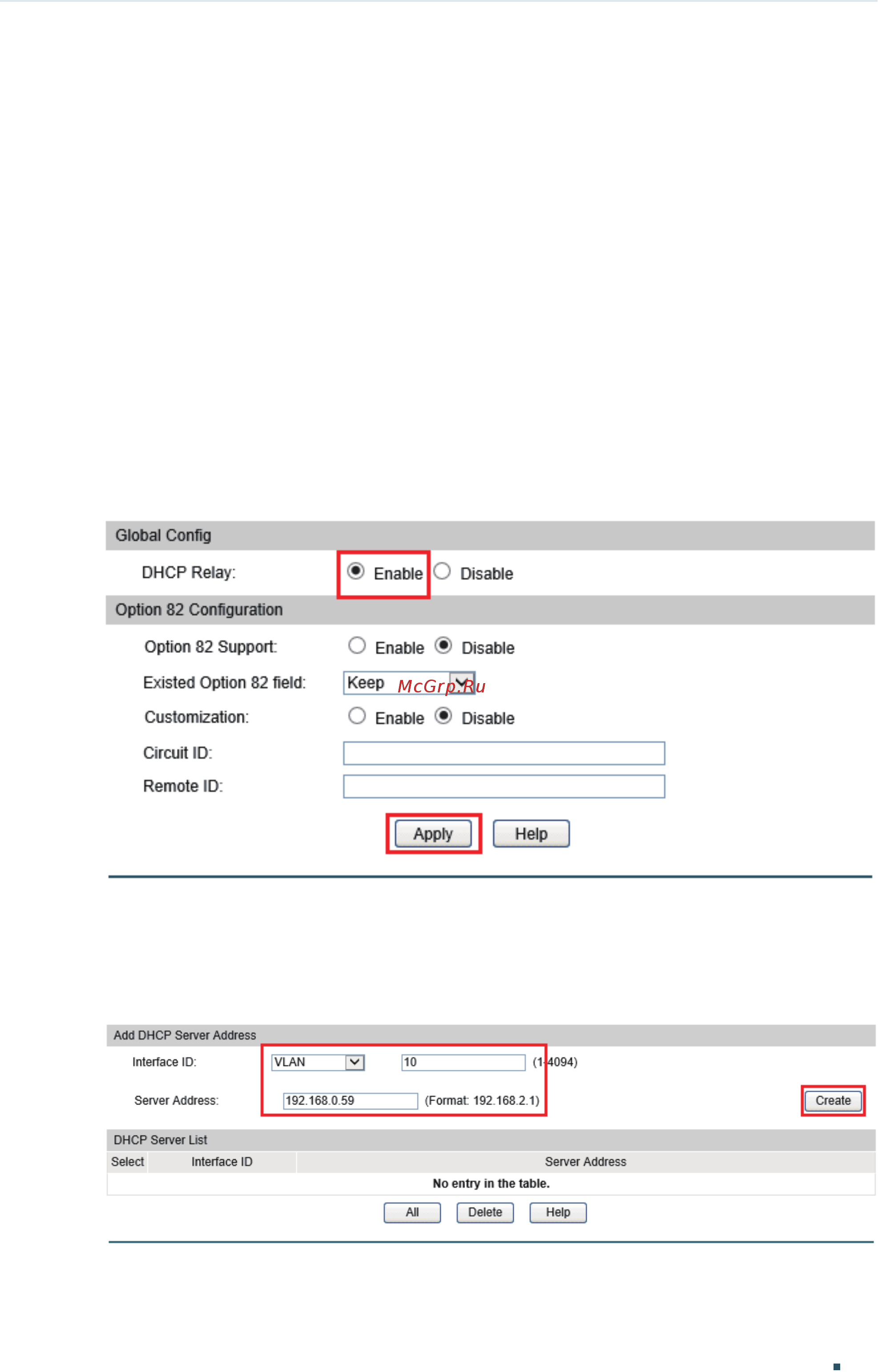

1) Choose the menu Routing > DHCP Relay > Global Config to load the following page. In
the Global Config section, enable DHCP Relay, and click Apply.
Figure 3-1 Enable DHCP Relay
2) Choose the menu Routing > DHCP Relay > DHCP Server to load the following page. In
the Add DHCP Server Address section, add the DHCP server address to VLAN 10 and
VLAN 20.
Figure 3-2 Specify DHCP Server for Interface VLAN 10
