Configuration Guide 538
Configuring ACL Configuration Example for ACL
3
Configuration Example for ACL
3.1 Network Requirements
A company’s internal server group can provide different types of services. It is required
that:
the Marketing department can only access internal server group from intranet.
the Marketing department can only visit http and https websites on the internet.
3.2 Network Topology
As is shown below, computers in the Marketing department are connected to the switch
via port 1/0/1 , and the internal server group is connected to the switch via port 1/0/2.

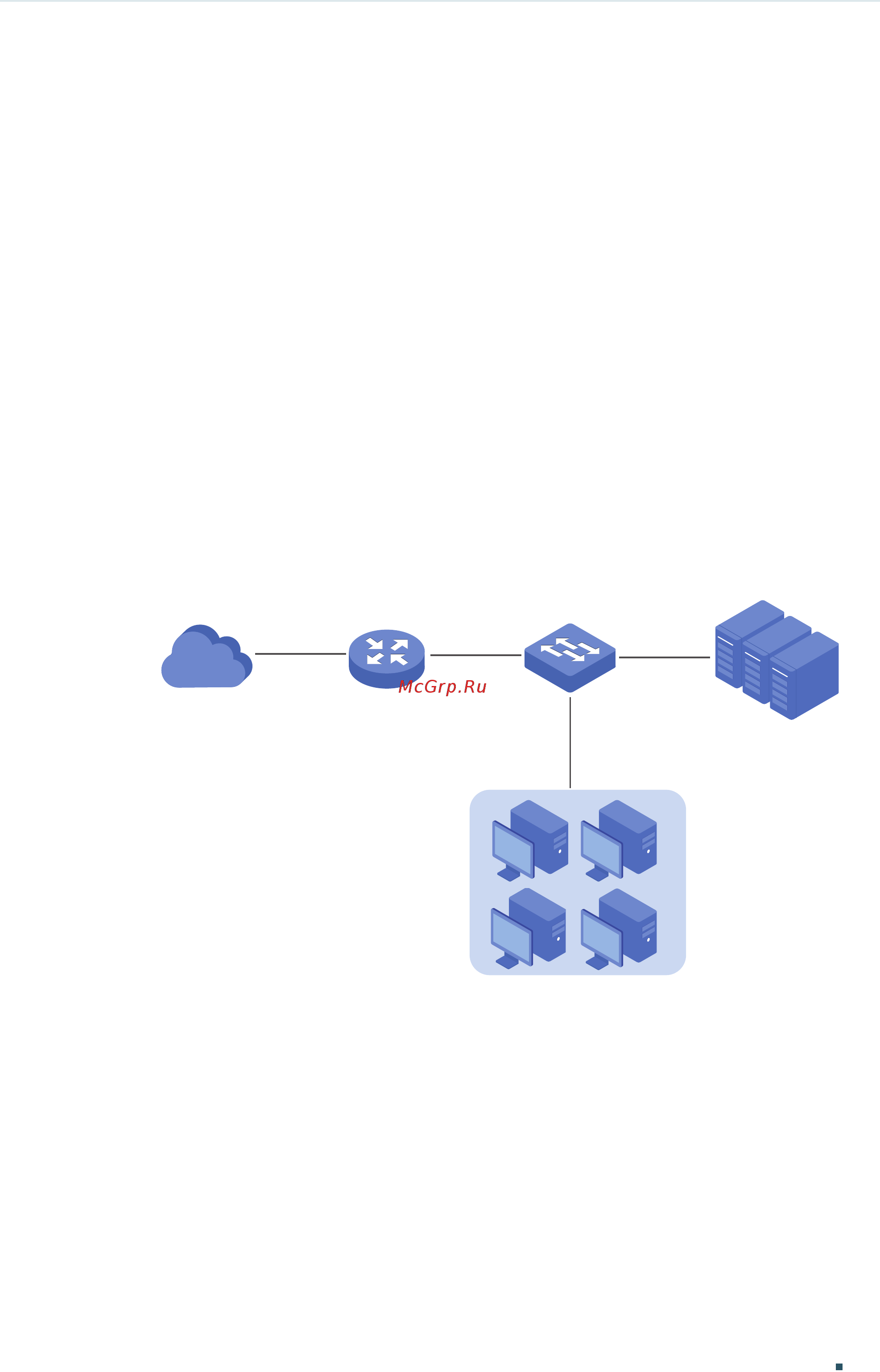

Figure 3-1 Network Topology
Internet
Gi1/0/1
Marketing
IP: 10.10.70.0/24
Server Group
IP: 10.10.80.0/24
Gi1/0/2
3.3 Configuration Scheme

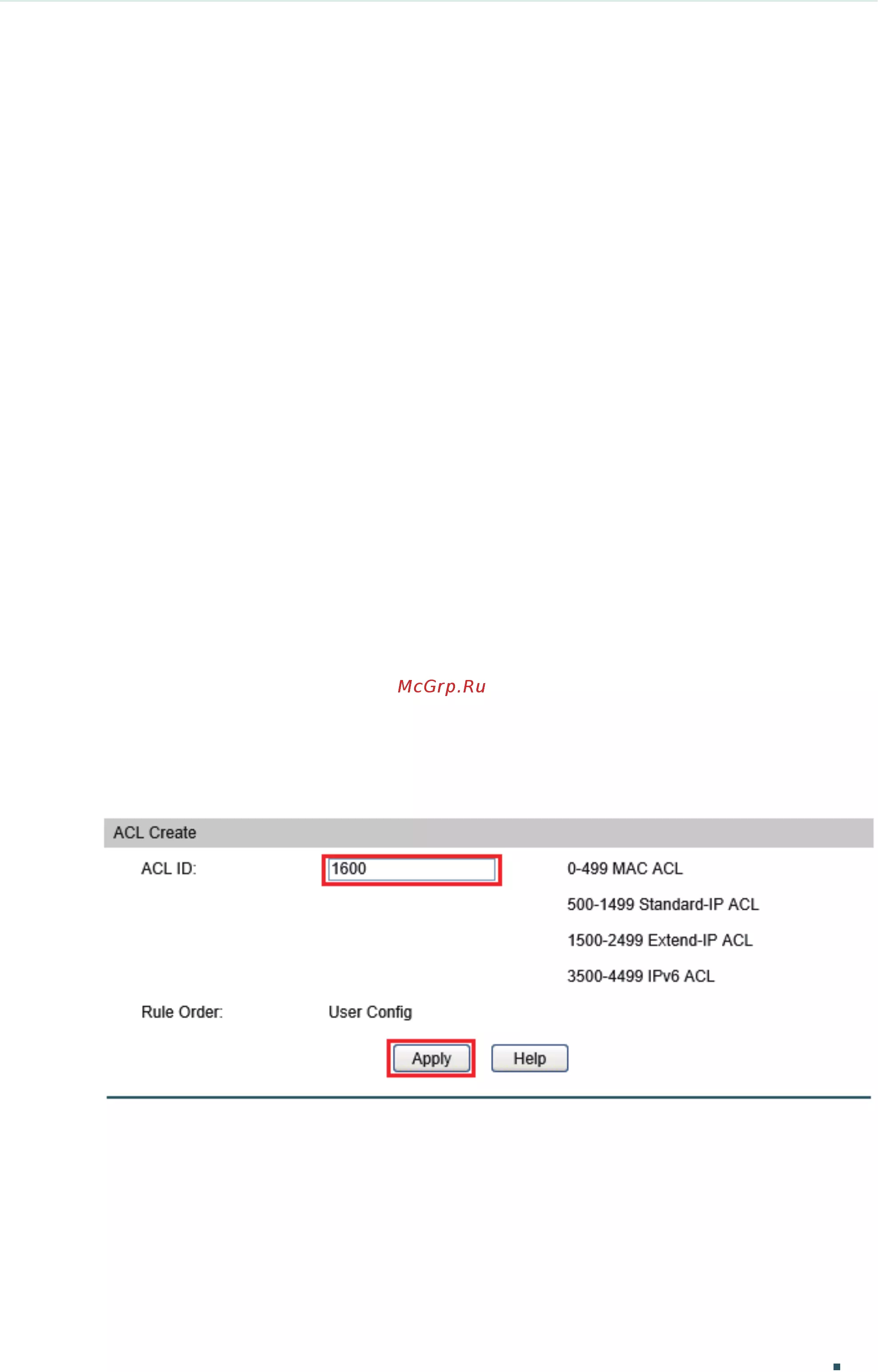

To meet the requirements above, you can set up packet filtering by creating an Extend-IP
ACL and configuring rules for it.
