![Tp-Link T1700G-28TQ V2 [105/772] You can use the provision feature to pre configure a new switch before it joins the stack](/views2/1472751/page105/bg69.png)
Configuration Guide 80
Configuring Stack Stack Configuration

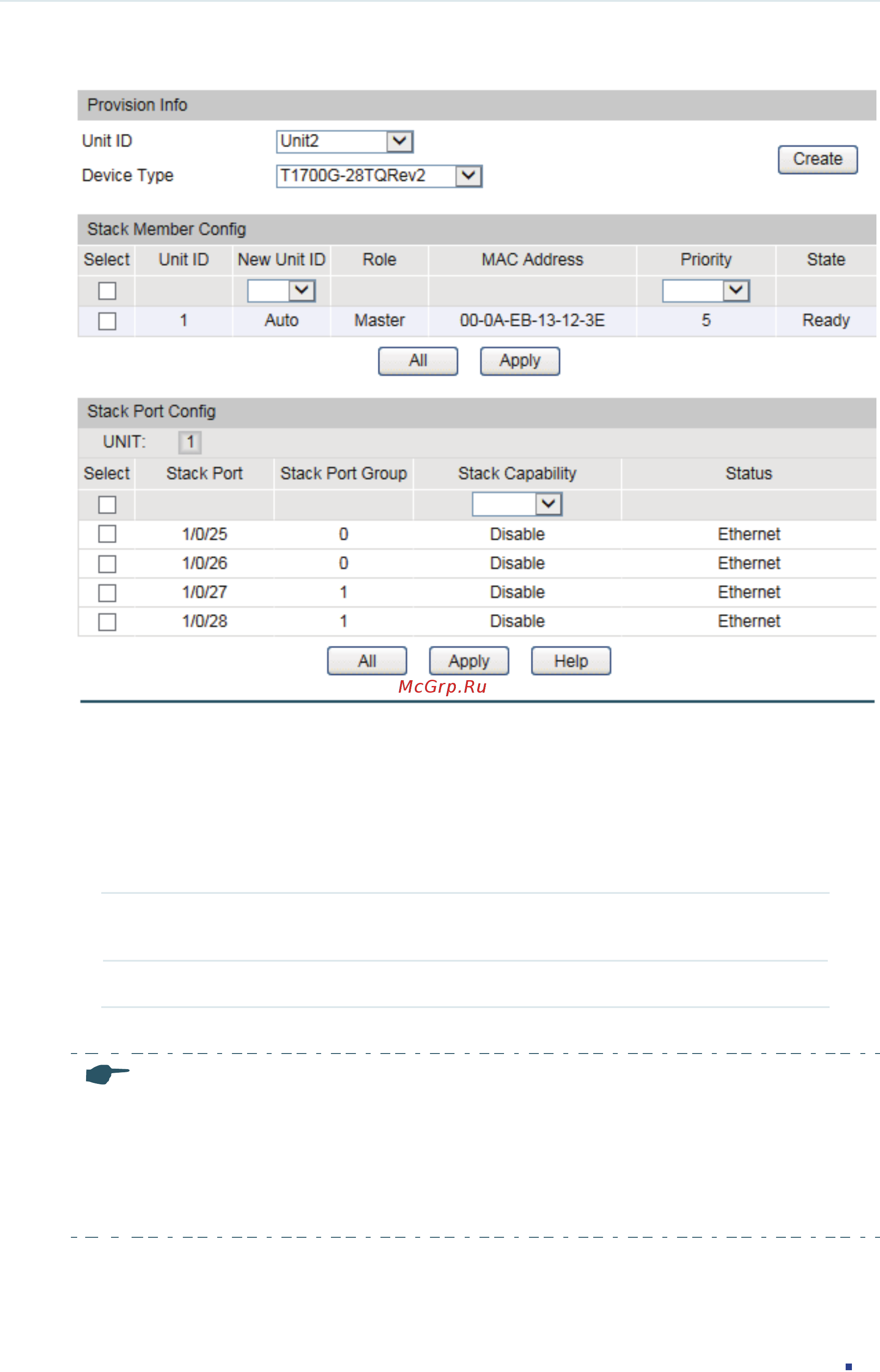

Figure 2-1 Stack Configuration
Provisioning a New Member for a Stack
You can use the provision feature to pre-configure a new switch before it joins the stack.
Follow these steps to create the provisioned switch:
1) In the Provision Info section, configure the provisioned switch’s information.
Unit ID Select the provisioned switch’s unit ID. The ID being used by current
switches in the stack cannot be selected.
Device Type Select the provisioned switch’s device type.
2) Click Create.
Note:
•
After the provisioned switch is created, you can configure its port-related features, such as
adding the ports into VLANs, configuring the port’s priority in QoS, enabling IGMP snooping on
these port, etc.
•
When the new added switch matches both the unit ID and device type, the stack will apply the
provisioned configuration to the switch.
