Configuration Guide 306

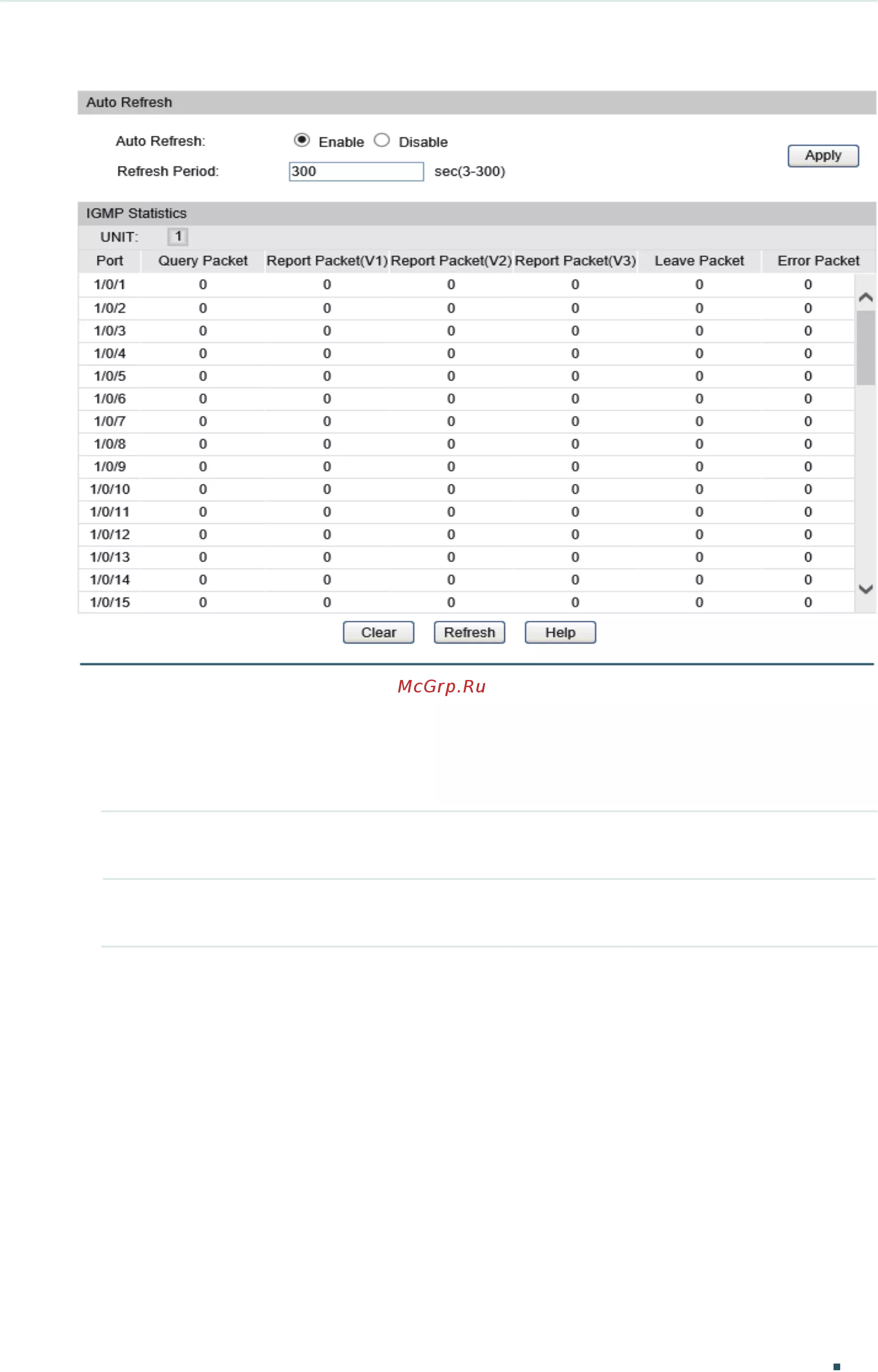

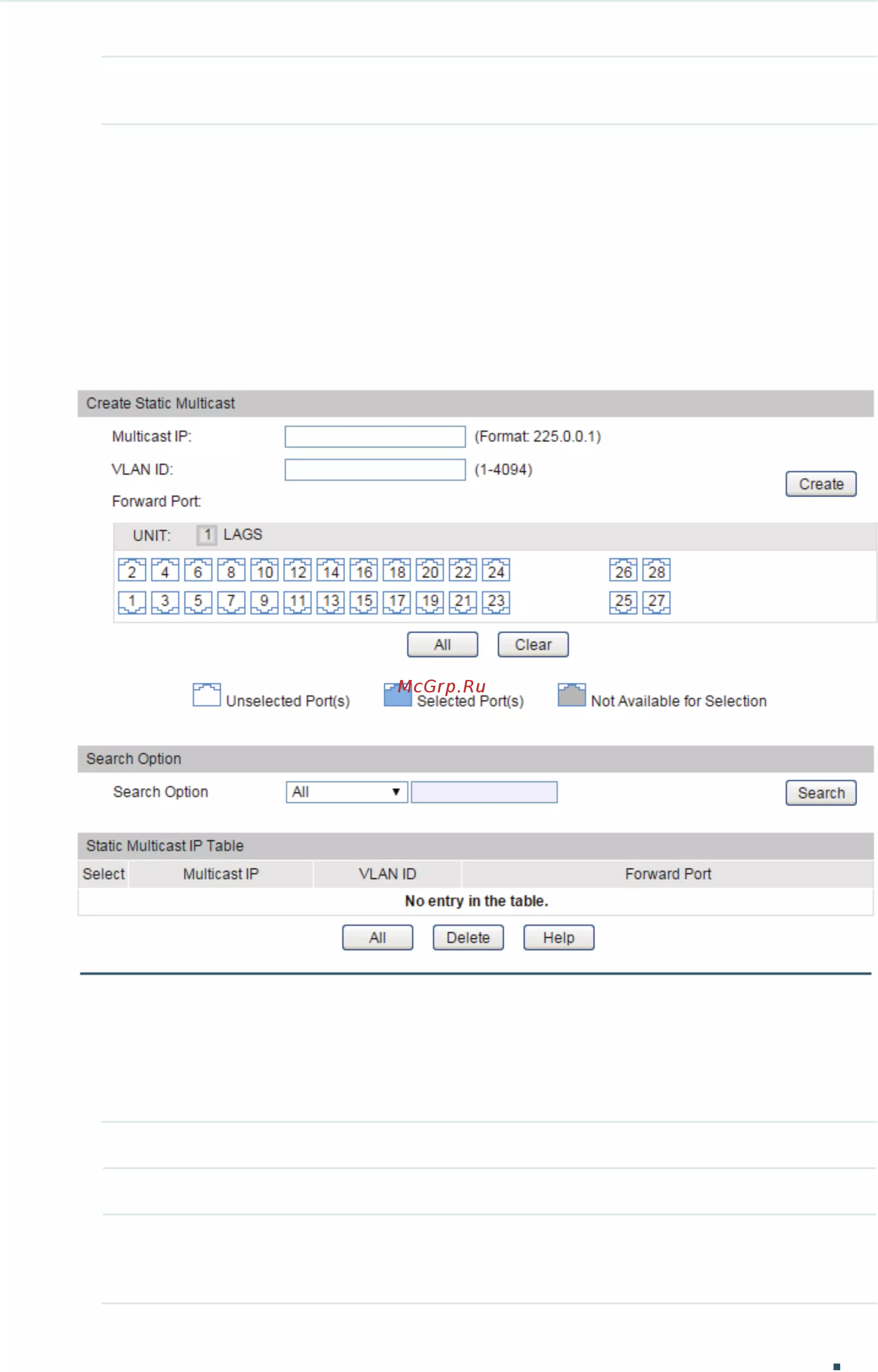

Configuring Layer 2 Multicast IGMP Snooping Configurations

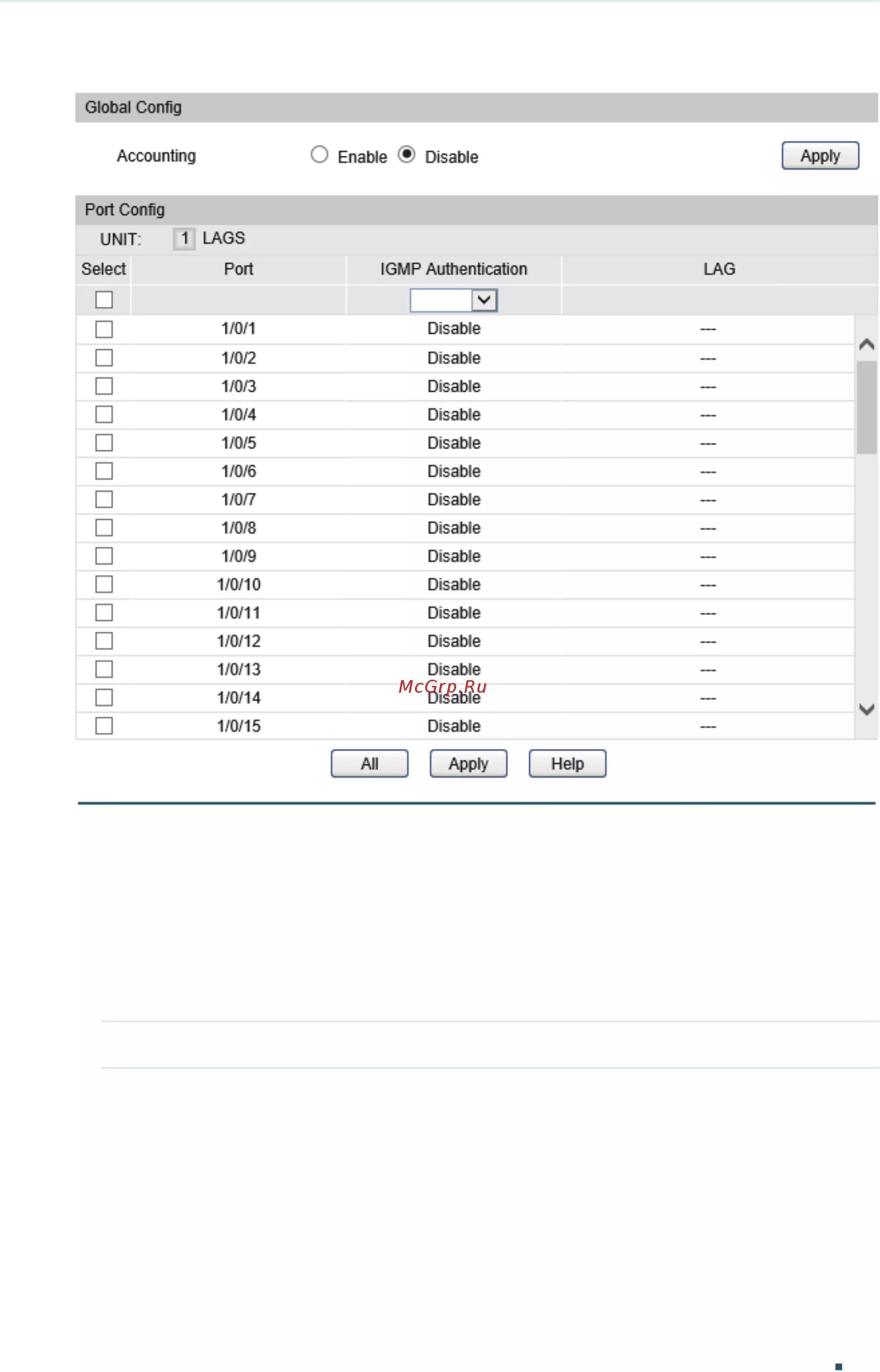

Figure 2-10 IGMP Accounting and Authentication
Configuring IGMP Accounting Globally
To use this function, you should also enable Authentication, Authorization and Accounting
(AAA) globally and configure RADIUS server on the switch.
Follow these steps to enable IGMP Accounting globally.
1) Enable IGMP Accounting globally.
Accounting Select Enable to enable IGMP Snooping accounting.
2) Click Apply.
Configuring IGMP Authentication on the Port
To use this function, you should also enable AAA globally and configure RADIUS server on
the switch.
Follow these steps to enable IGMP Authentication on the port.
1) Specify the ports and enable IGMP Authentication.
