Configuration Guide 634
Configuring LLDP LLDP Configurations
2
LLDP Configurations
With LLDP configurations, you can:
1) Enable the LLDP feature on the switch.
2) (Optional) Configure the LLDP feature globally.
3) (Optional) Configure the LLDP feature for the interface.
2.1 Using the GUI
2.1.1 Global Config
Choose the LLDP > Basic Config > Global Config to load the following page.

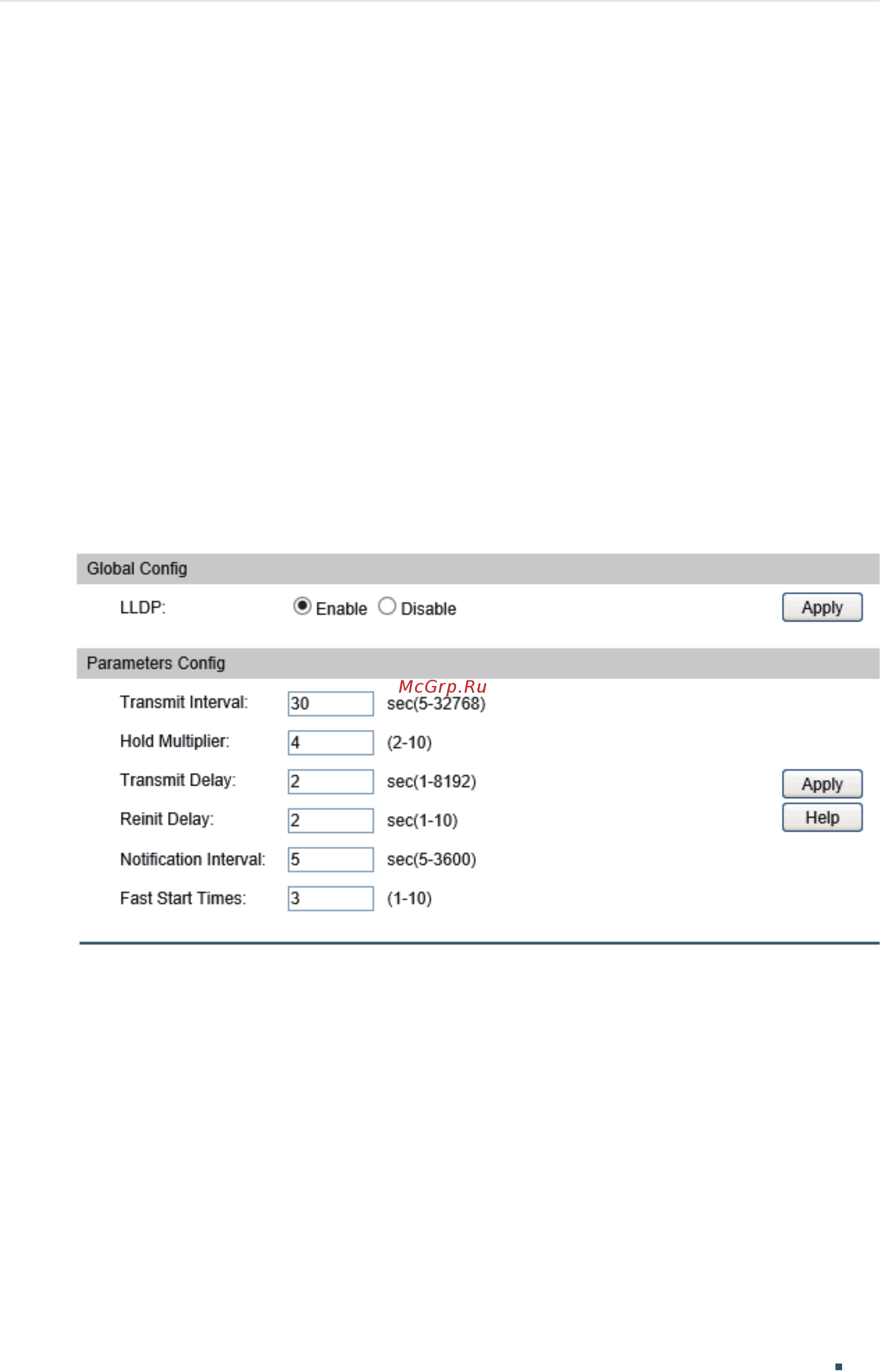

Figure 2-1 Global Config
